GRAZIANO CTX 420 Linear Motorized CNC Lathe

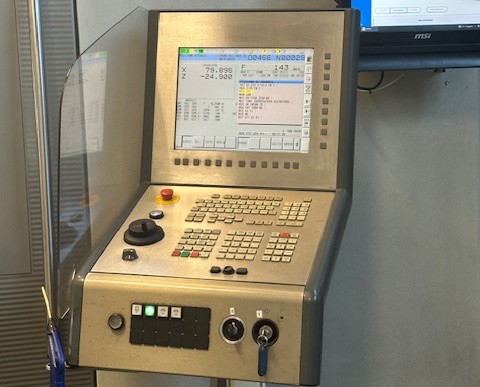

Fanuc 180i-TB CNC

_
WORKING CAPACITY:
Maximum workable diameter: 680 mm
Maximum workable diameter on the X-axis: 565 mm
Maximum turning diameter: 324 mm
Maximum turning length: 600 mm

_

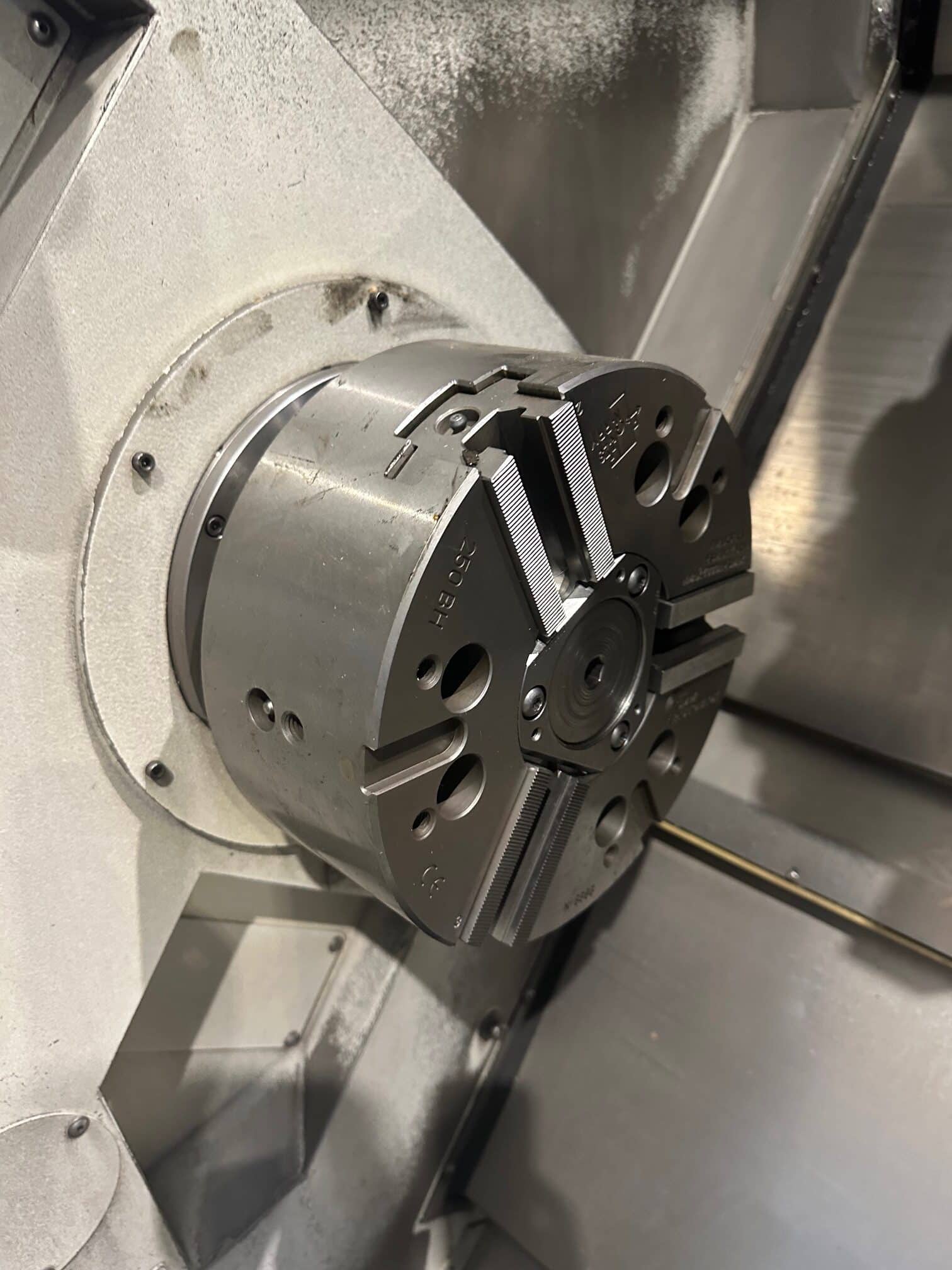

SPINDLE:
Flat-flange spindle head diameter: 170h5 mm
Spindle bore: 79 mm
Max. bar diameter: 65 mm
Clamping spindle diameter: 200/250 mm
100% DI drive power: 25 kW
Speed range: 5,000 rpm
Maximum torque S1 at 100% DI: 270 Nm
Peak speed: 900 rpm

_
AXIS C:
Speed: 250 rpm
Holding torque: 200 Nm
Division accuracy: 0.025°

_

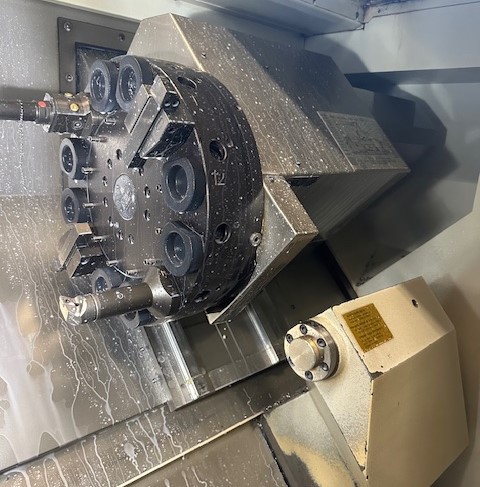

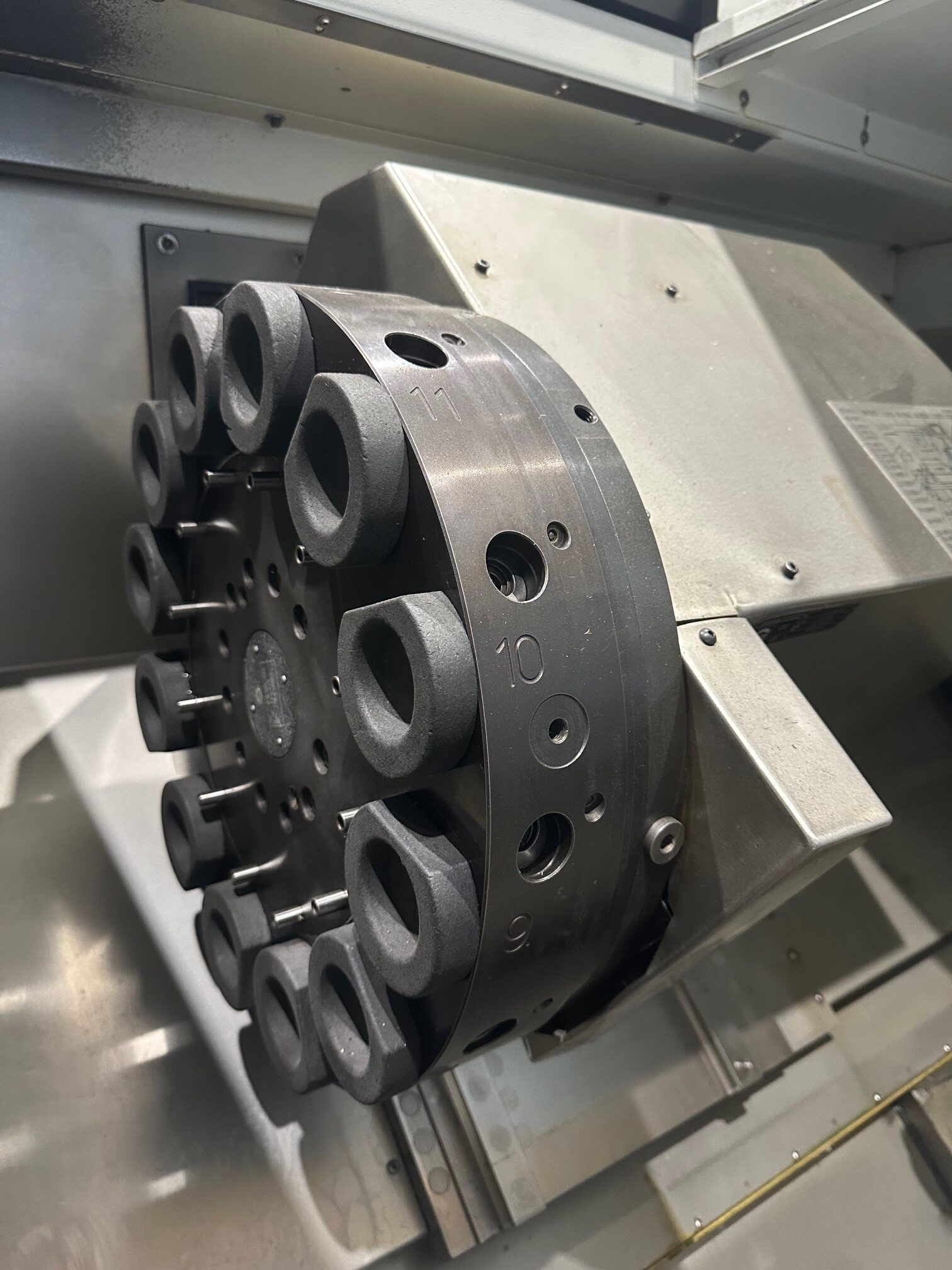

TOOL TURRET:
Number of tool stations: 12
VDI 69880 cylindrical shank tool attachment: 40 mm
Motorized speed: 4,500 rpm

_

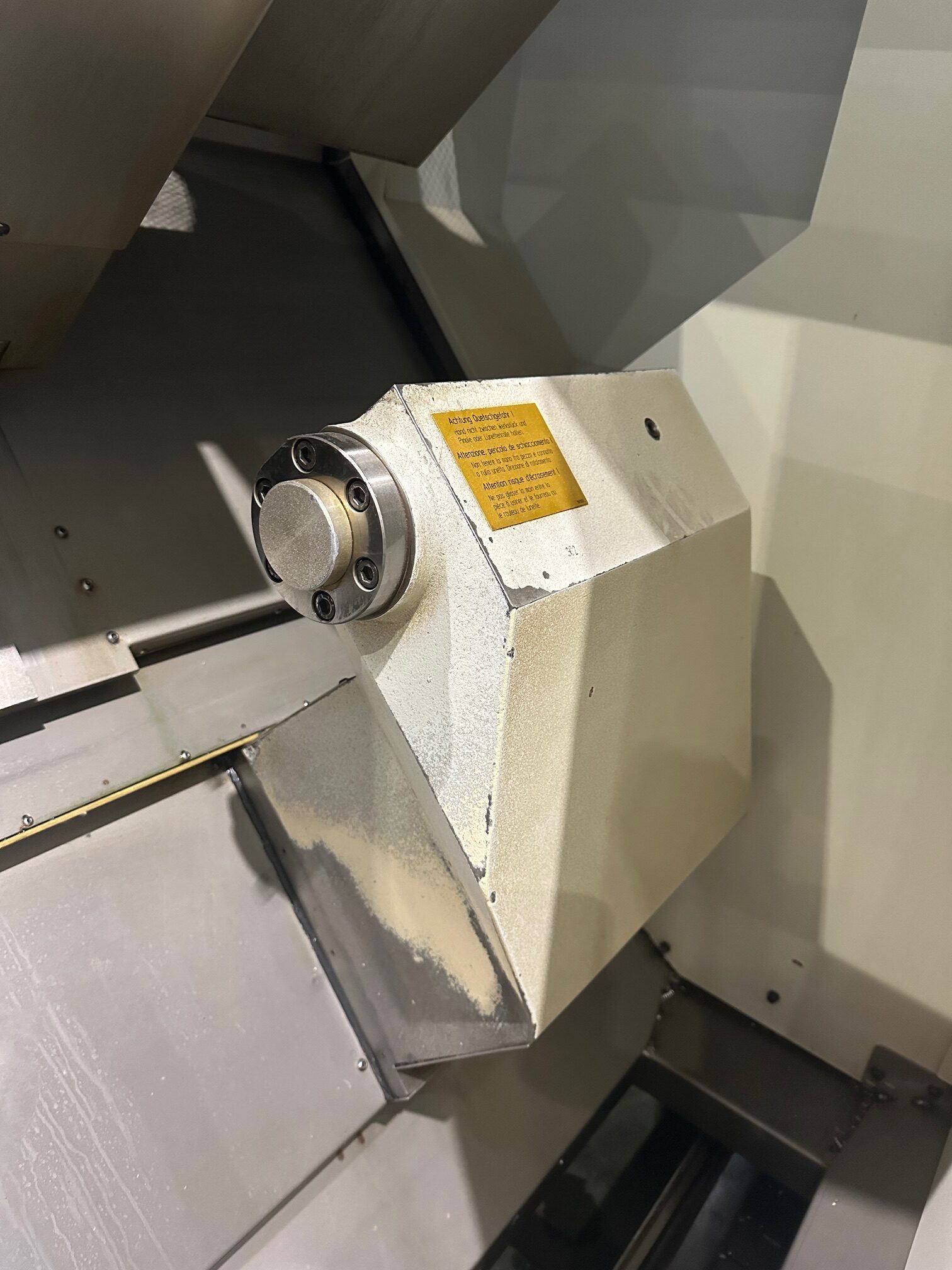

TAILSTOCK:
Tailstock stroke: 580 mm
Tailstock force: 8 kN
Tailstock mounting: MK 5
Rapid traverse speed Z2: 6 m/min

_
Machine dimensions: 4,350 x 2,460 x 2,080 mm
Machine weight: 6,000 kg

_
Year built: 2005

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
