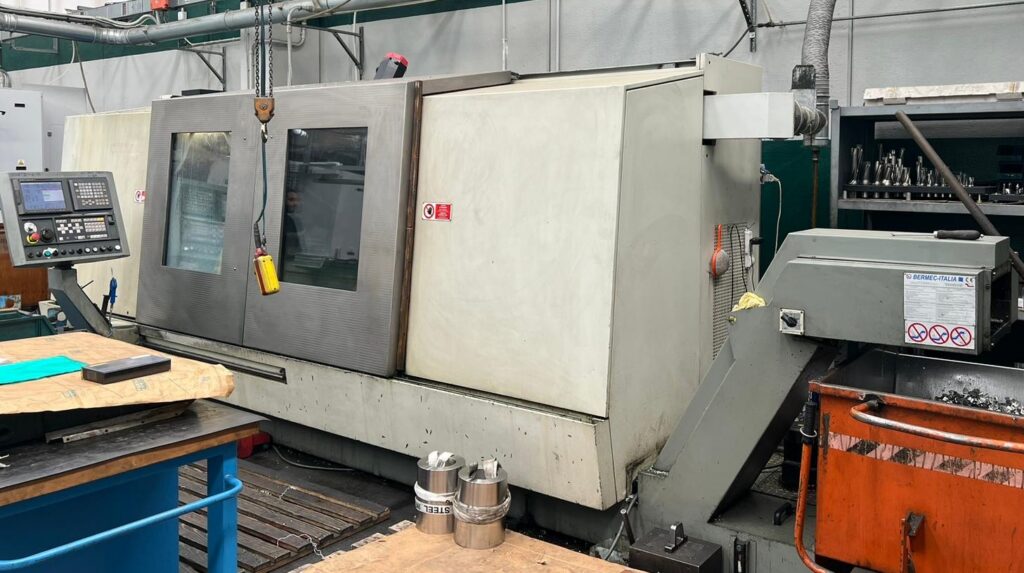

TECHNICAL DATA:

Fanuc 18i-T CNC

WORKING CAPACITY:

Rotation diameter beyond the pallet guide cover: 720 mm

Rotation diameter beyond the transverse guide: 460 mm

Transverse travel: 360 mm

Longitudinal travel: 2 ,150 mm

SPINDLE:

Spindle head: A2 – 11”

Spindle hole: 137 mm

Front bearing diameter: 180 mm

Autoblok self-centering diameter: 400 mm

MAIN DRIVE:

Power 40%/100% ED: 40/25 kW

Maximum torque at 40%/100% ED: 2,300/1,437 Nm

RPM range: 20–2 ,000 rpm

AC AXIS FEEDING:

Rapid X/Z speed: 20 m/min

MOTORIZED TURRET:

Number of powered tool stations: 12 stations

Rod diameter according to (DIN 69880): 50 mm

Power 40% ED: 8 .8 kW

Maximum clamping diameter of driven tools: 25 mm

TAILSTOCK:

Sleeve travel: 150 mm

Tip/steerer housing: MK 5

Tailstock force/maximum quill pressure: 1,600 daN

DIMENSIONS:

Height: 2 ,360 mm

Floor space: 5 ,850 x 2,040 mm

Weight: 11 ,000 kg

Machine comes complete with:

• Autoblok 400 mm Chuck
• 2 axial motorized modules
• 2 radial motorized modules
• Various bar holders
• Tool Setting
• Morari retractable bezel, complete with 3 arms

Year of manufacture: 2001

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
