TECHNICAL SPECIFICATIONS:

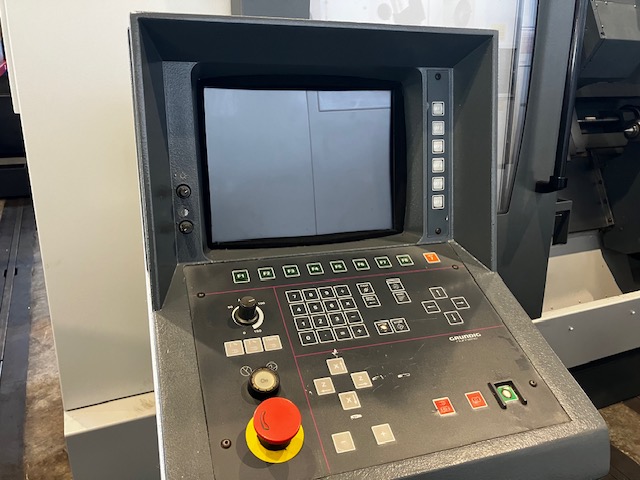

CNC Pilot

WORK AREA:

Rotating diameter on the bench: 550 mm

Rotating diameter on the slide: 345 mm

Tip-to-tip distance: 1.005 mm

X-axis travel: 300 mm

Z-axis travel: 950 mm

HEAD AND SPINDLE:

Spindle mount: A2-8”

Front bearing diameter: 120 mm

Spindle bore diameter: 86 mm

Bar clearance: 74 mm

Spindle motor power at 100% duty cycle: 34 kW

Maximum torque from 20 to 700 rpm: 465 Nm

Spindle speed: 20–4,000 rpm

AC AXIS SERVO MOTORS:

X-axis thrust: 7,500 N

Z-axis travel: 10,000 N

X-axis rapid feed rate: 20 m/min

Z-axis rapid traverse speed: 20 m/min

X-axis measurement system: linear

Z-axis measurement system: rotary

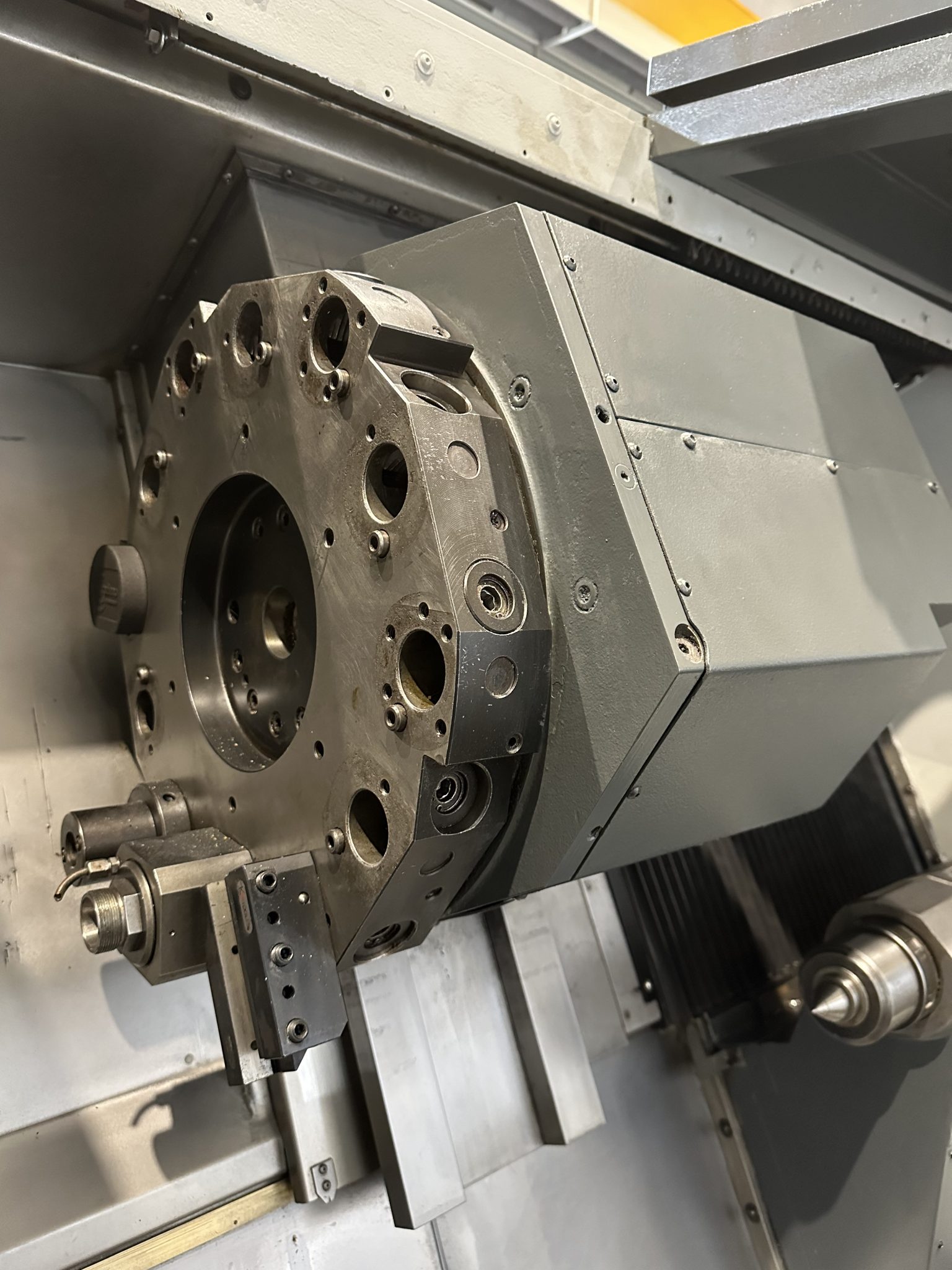

TOOL TURRET:

Tool station: 12

VDI tool holder: 40 mm

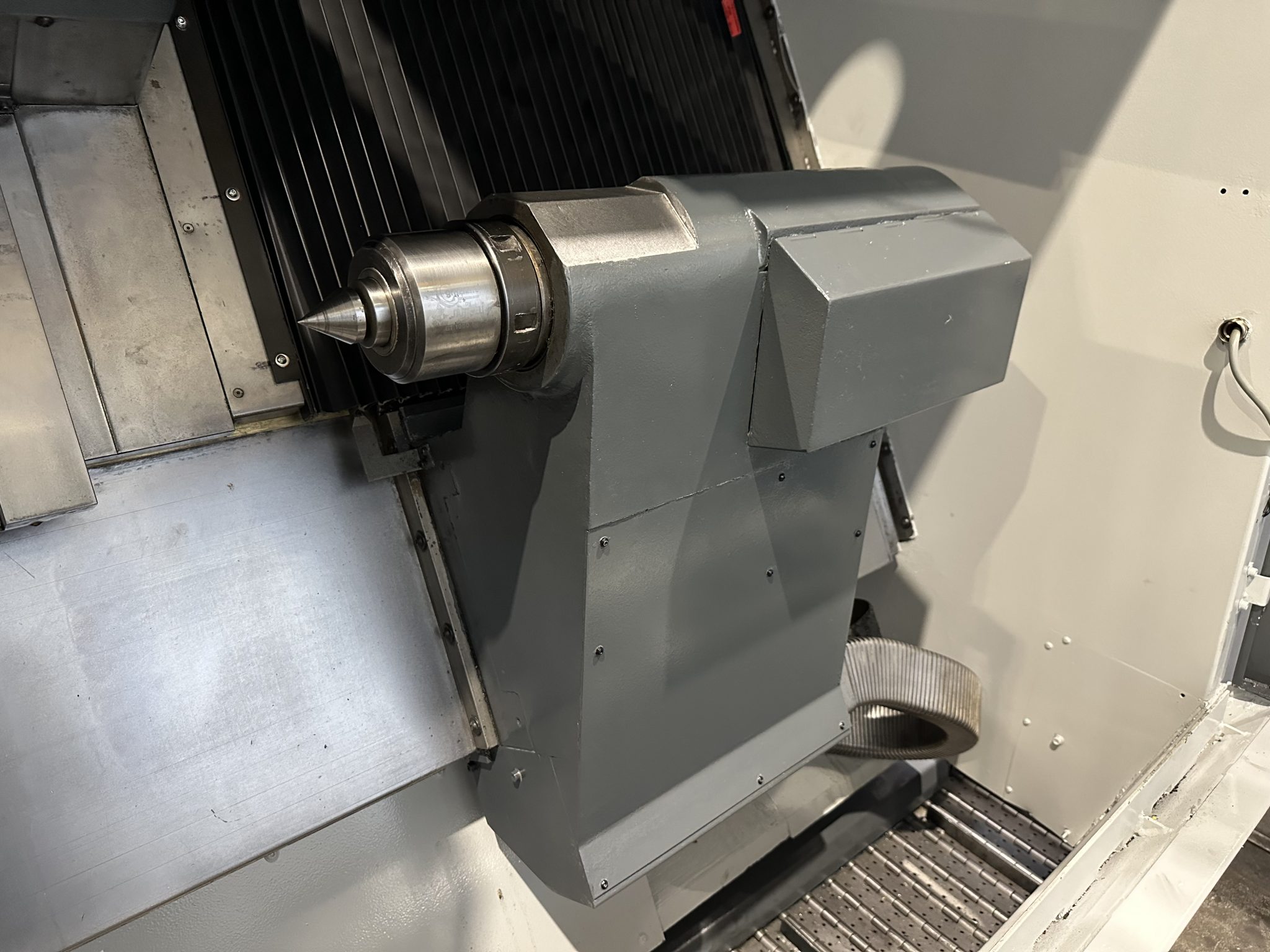

COUNTERPOINT:

Axle diameter/travel: 95/135 mm

CM Tip: No . 5

Hub thrust: N 11,300

Machine weight: 6,550 kg

Machine comes complete with:

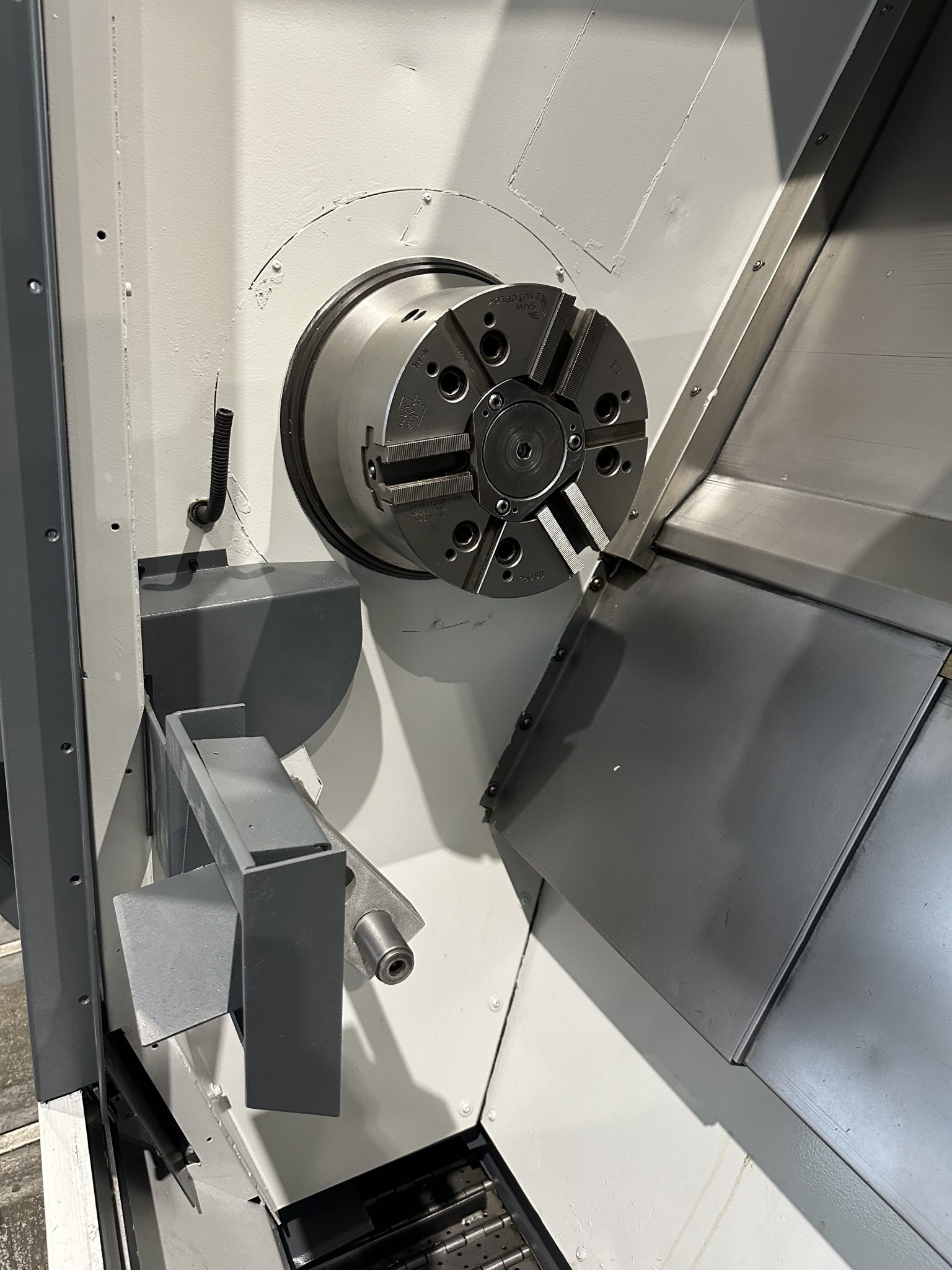

• Autoblok Self-Centering, 250 mm diameter
• Tailstock
• 1 axial motorized module
• 1 motorized radial module
• Manina downloads a track
• Instruction Manuals and EC Declaration

Year built: 1996

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
