TECHNICAL SPECIFICATIONS:

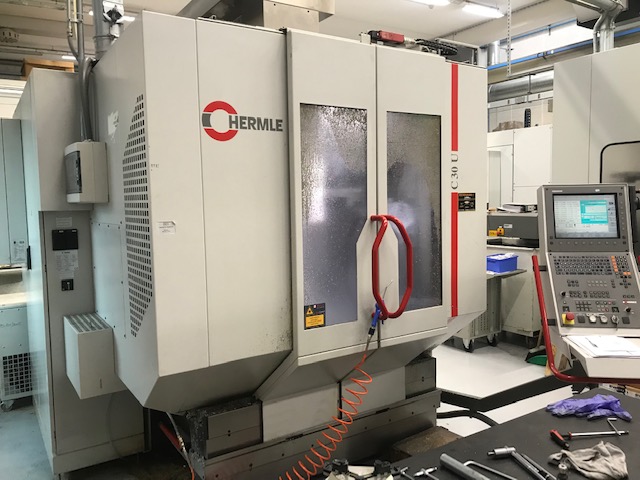

Heidenhain iTNC 530 CNC

Longitudinal X: 650 mm

Y-axis: 600 mm

Vertical Z: 500 mm

Spindle taper: ISO 40

Rotational speed: 16,000 rpm

Linear feed rate: 45 m/min

Linear acceleration: ^{6 m/s²}

Linear axis thrust: N 7,000

Workpiece table diameter: 370 mm

Tool changer: 120 stations

Machine comes complete with:

• Renishaw Probe
• Blum Presets
• High pressure through the spindle: 80 bar

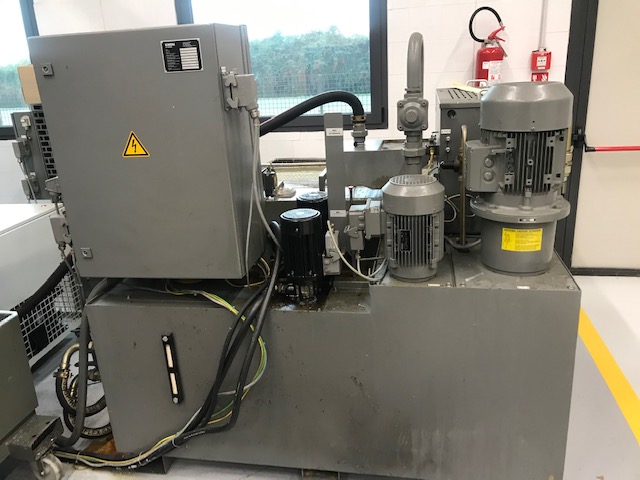

• Tank with paper filter
• Chip Conveyor

Year built: 2006

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
