TECHNICAL SPECIFICATIONS:

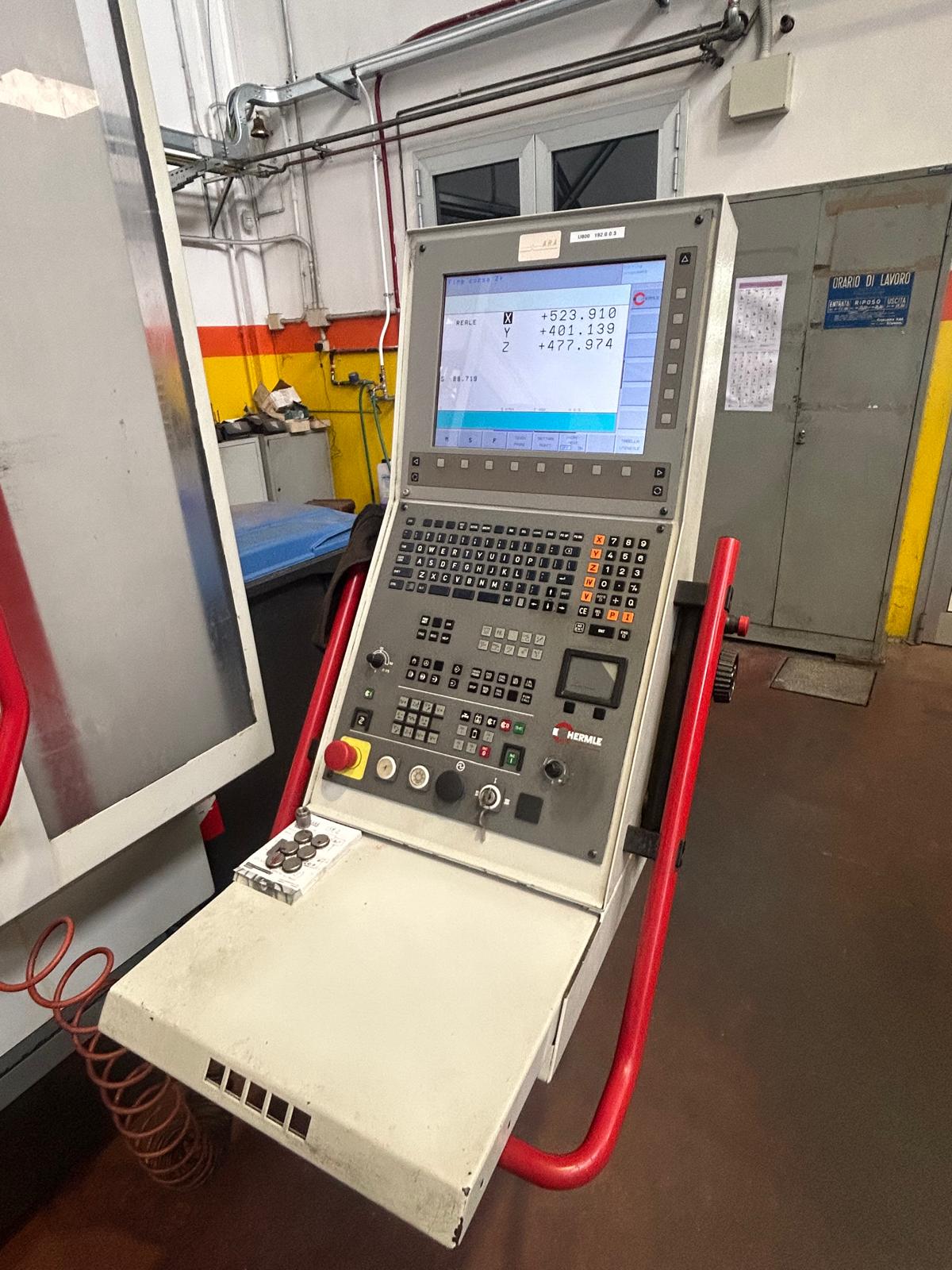

Heidenhain iTNC 530 CNC

WORK CAPACITY:

Longitudinal stroke X: 800 mm

Y-axis travel: 600 mm

Z-axis vertical travel: 500 mm

PROGRESS:

Feed rate: 8,000 N

Rapid feed rate: 30 m/min

Acceleration: ^{5 m/s²}

CHUCK:

RPM: 20–18,000

DIN 2079 taper: HSK 63 A

TABLE:

Clamping surface: 1,000 x 560 mm

Load height: 900 mm

Maximum load capacity of the table: 1,500 kg

TOOL CHANGE:

Warehouse positions: 30

Tool diameter: 80 mm

With adjacent seats available: 125 mm

Maximum tool length: 300 mm

Max. tool weight: 8 kg

Machine comes complete with:

• Washing Gun
• Instruction Manuals and EC Declaration

Year built: 2002

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
