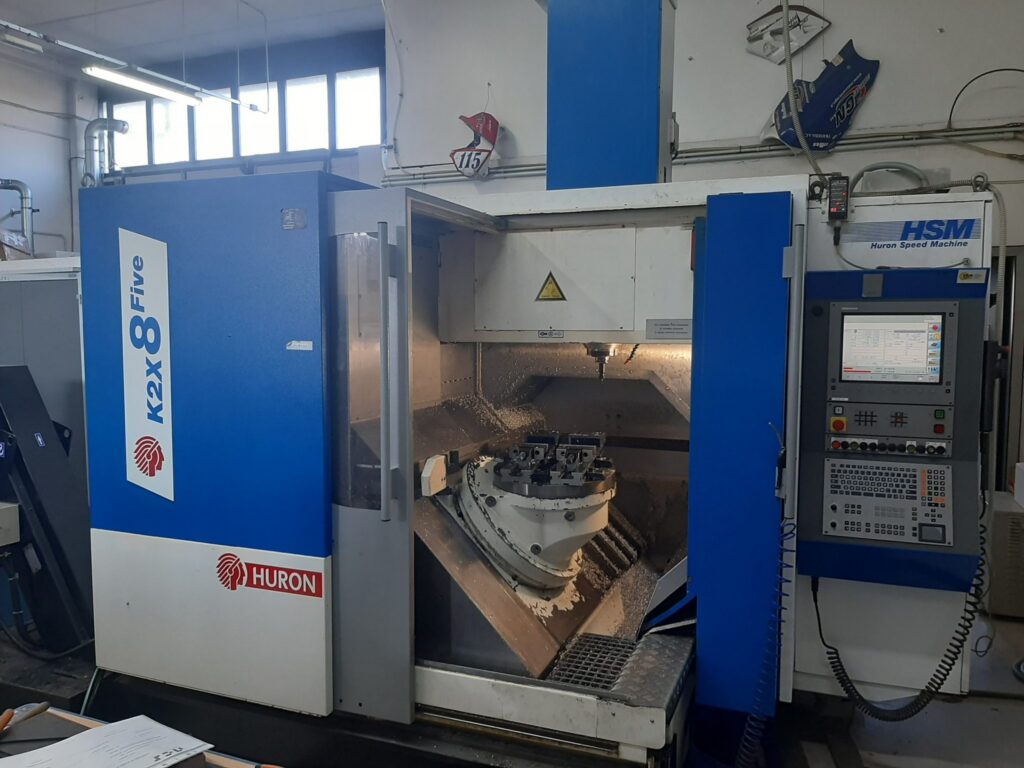

TECHNICAL SPECIFICATIONS:

Heidenhain iTNC 530 CNC

RACES:

X-axis of the carriage: 650 mm

Table Y-axis: 700 mm

Z-axis of the spindle: 450 mm

Axis A: -45°/+180°

Spindle-to-table angle: 0°/90°

Axis C: 360°

TABLE:

Table dimensions: 500 mm Ø

Maximum load on the table: 250 kg

Table-to-spindle nose surface: 0–450 mm

Table axis – spindle nose: 75–525 mm

CHUCK:

Tool holder taper: HSK 63-A

Rotational speed: 100–24,000 rpm

Power – Torque (S1/S6): 18/24 kW – 29/38 Nm

Table axis – spindle nose: 75–525 mm

LINEAR AXIS FEED RATES:

Quick: 50 m/min

Acceleration per axis: 5^m/s²

Vector acceleration: 9^m/s²

ROTARY AXIS FEED RATES:

Maximum rotational speed: 50 rpm

Acceleration per axis: 18^rd/s²

TOOL STORAGE:

Number of positions: 30 tools

Type: pickup truck

DIMENSIONS AND POWER CONSUMPTION:

Length x width x height: 5,160 x 3,155 x 3,180 mm

Weight: 8,000 kg

Total installed power: 55 kVA

Machine comes complete with:

• Probe
• Tool Presetting
• Instruction Manuals and EC Declaration

Year built: 2008

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
