Technical Specifications
TECHNICAL SPECIFICATIONS:

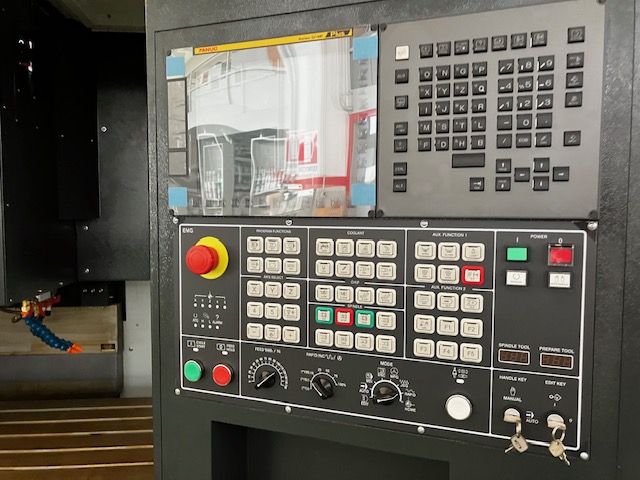

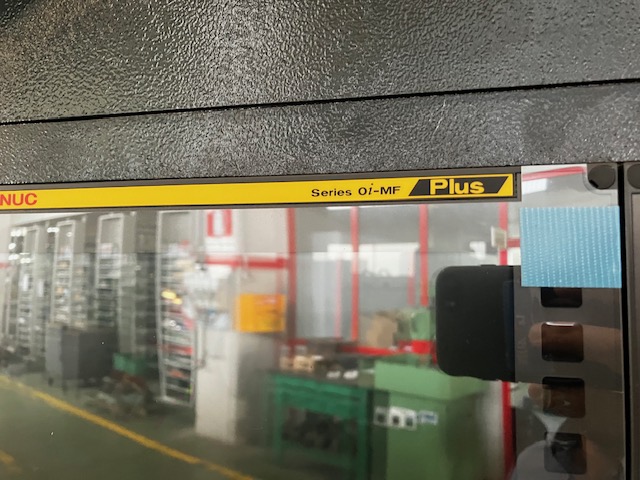

FANUC 0i-MF PLUS CNC
MACHINE TRAVELS:
Longitudinal X: 1,270 mm
Transverse Y: 600 mm
Vertical Z: 610 mm
Distance from spindle nose to table: 100/710 mm
Distance from spindle nose to column: 637 mm
TABLE:
Surface area: 1,420 x 580 mm
Max. load: 800 kg
“T”-slots: 5 – width 18 mm – pitch 100 mm
Distance from table top to floor: 950 mm
SPINDLE:
Spindle speed: 10,000 rpm
Spindle taper: BT 40
Power S1/S2 (30 min): 15/18.5 kW
Max. torque at 1,500 rpm: 117 Nm
AXES:
Rapid feed rates (X, Y, Z): 48/48/36 m/min
Lubrication: Automatic progressive oil lubrication system
TOOL MAGAZINE:
Tool magazine: 30 slots
Tool changer arm: double
Operation mode: random
Maximum tool weight: 8 kg
Maximum length: 250 mm
Tool selection: Random
Machine comes complete with:
• External refrigerant supply with a 4-bar high-pressure pump
• Internal refrigerant supply: 20 bar, 25-micron filter
• Air/water outside the spindle
• Oil/water separator in the tank
• Belt-type chip conveyor complete with collection bin
• Double-screw base
• Workstation cleaning system
• Air blast for cleaning the cone
• Wash gun
• Transformer
• CE Compliance
• Fully enclosed fairing
• 3-color machine status light
• Remote-controlled electronic flyer
• Heat exchanger in an electrical cabinet
• Rigid tapping
• Work area lighting
• Industry 4.0 Package
