TECHNICAL SPECIFICATIONS:

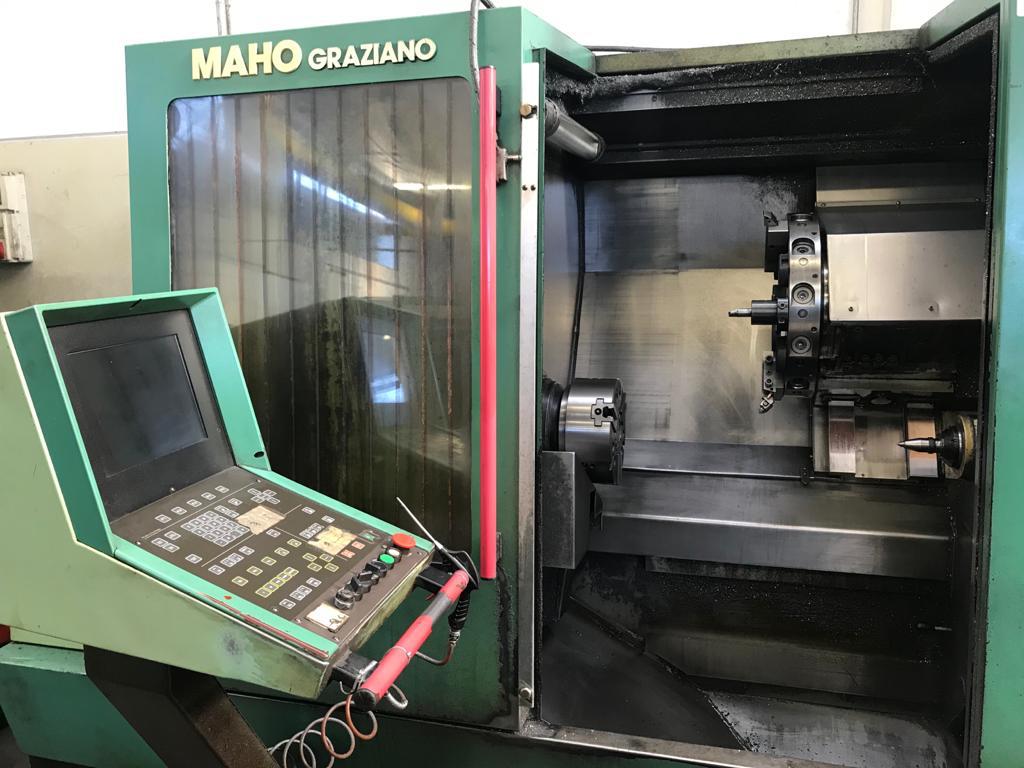

CNC MAHO GRAZIANO 432 T

WORK AREA:

Maximum rotating diameter: 500 mm

Rotating diameter on the cross slide: 420 mm

Distance between tips: 750 mm

X-axis travel: 280 mm

Z-axis travel: 760 mm

CHUCK:

Spindle motor: 15 kW

Speed range: 20–3,500 rpm

Spindle nose: ASA 6

Spindle bore diameter: 76 mm

SPEED AT A GLANCE:

X-axis: 10 m/min

Z-axis: 12 m/min

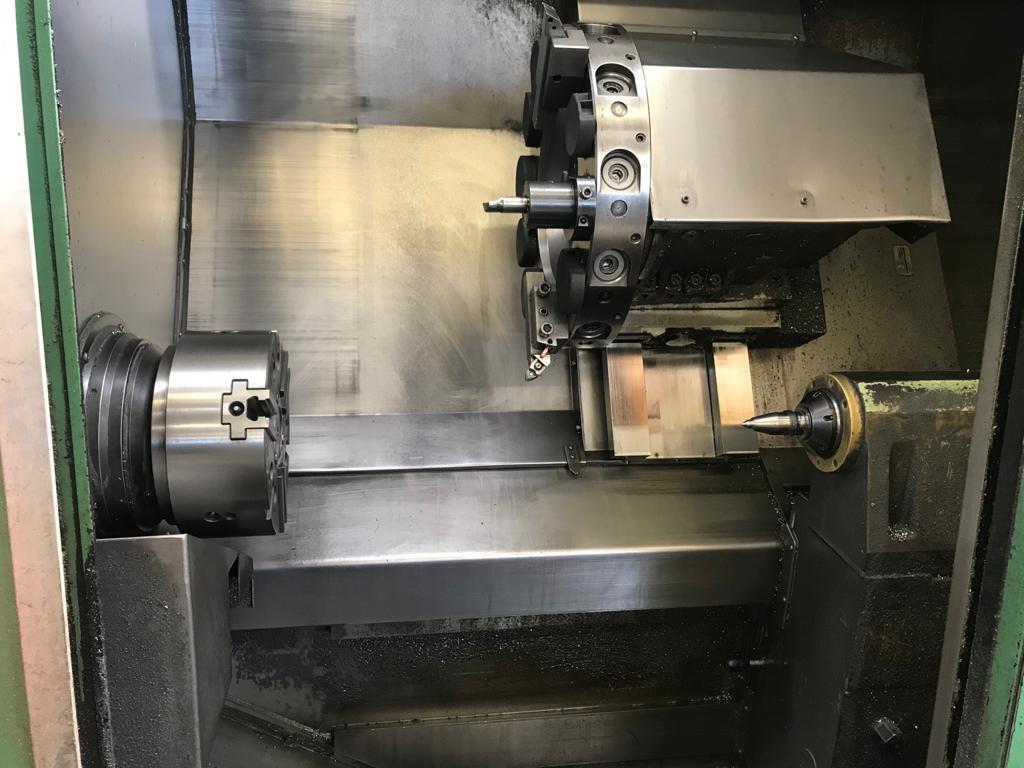

TOOL TURRET:

Turret type: bidirectional

Number of tools: 12

Shaft diameter: 40 mm

COUNTERPOINT:

Hub diameter: 90 mm

Steering tube travel: 125 mm

Machine weight: 6,000 kg

Total installed power: 38 kVA

Machine comes complete with:

• Tailstock
• Instruction Manuals

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
