TECHNICAL SPECIFICATIONS:

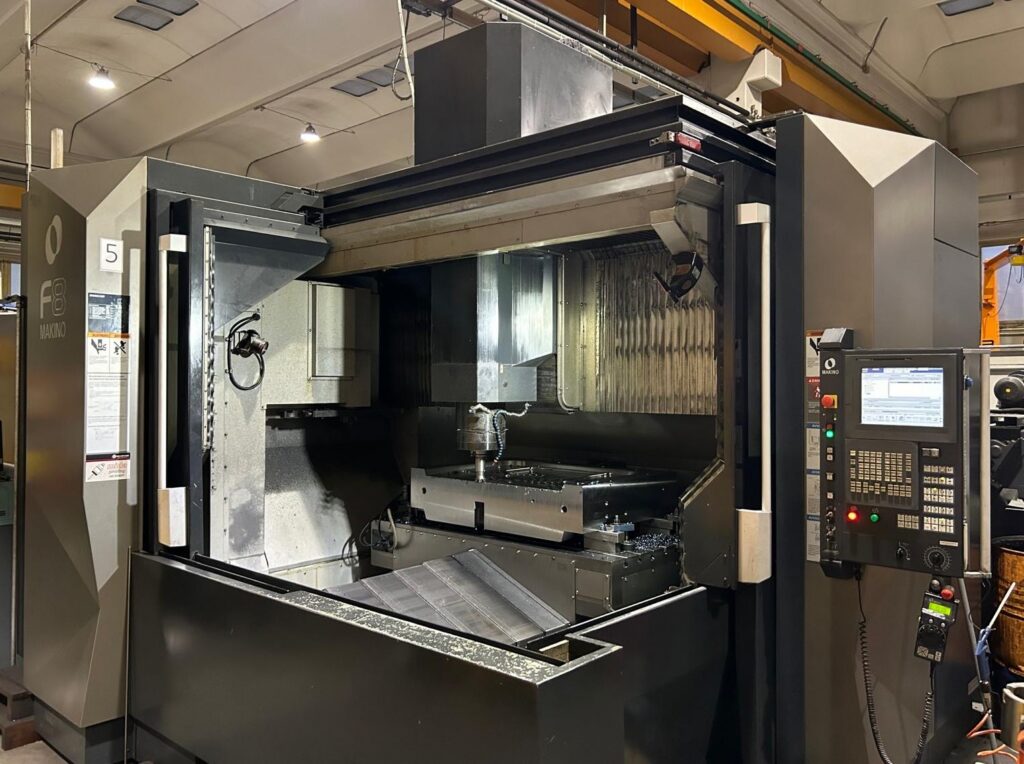

MAKINO PROFESSIONAL 5 CNC

RACES:

X-axis length: 1,300 mm

Y-axis width: 800 mm

Vertical Z: 650 mm

Distance between the table surface and the spindle head: 250–900 mm

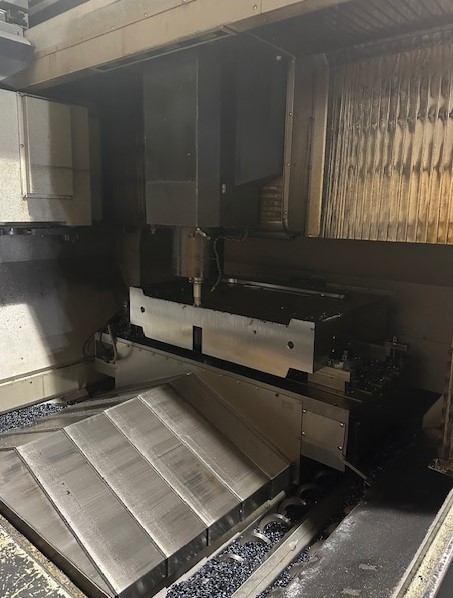

TABLE:

Table work area: 1,550 x 800 mm

Maximum payload: 2,500 kg

Maximum workpiece dimensions: 1,550 x 800 x 550 mm

Loading height: 950 mm

CHUCK:

Cone: HSK A100

Rotational speed: 20–10,000 rpm

Power (10 min./cont.): 37/25 kW

Torque (25% ED/cont.): 426 Nm / 294 Nm

FEED RATE:

Feed Rate/Cutting: 0 – 24,000 mm

Guide: Linear Guide

TOOL STORAGE:

Tool magazine capacity: 30

Tool (Diameter/Length): 200 / 400 mm

Tool (Weight/Change Time): kg/s 20/4

VOLTAGE:

Power supply: 380–415 V

DIMENSIONS:

Overall dimensions: 3850 x 4090 x 3560 h mm

Weight: 16,500 kg

Machine comes complete with:

• High pressure through the spindle
• Marposs Probe
• Presetting
• Instruction Manuals and EC Declaration

Year: 2012

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
