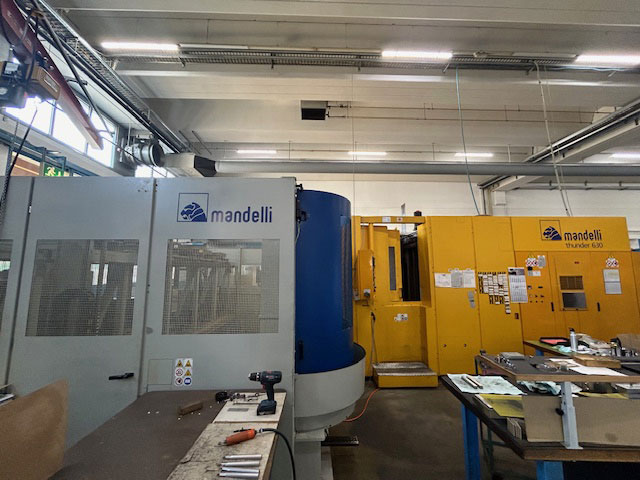

MANDELLI THUNDER 630 HORIZONTAL MACHINING CENTER

MANDELLI THUNDER 630 HORIZONTAL MACHINING CENTER

Horizontal Centers
Request Information

Technical Specifications

TECHNICAL SPECIFICATIONS:

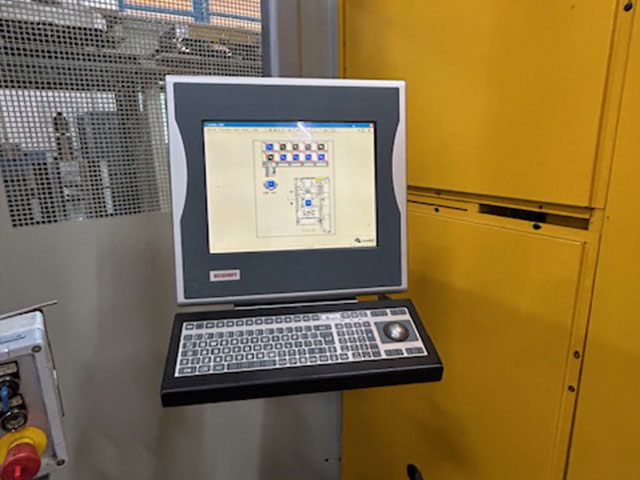

CNC Fanuc 16 i – M

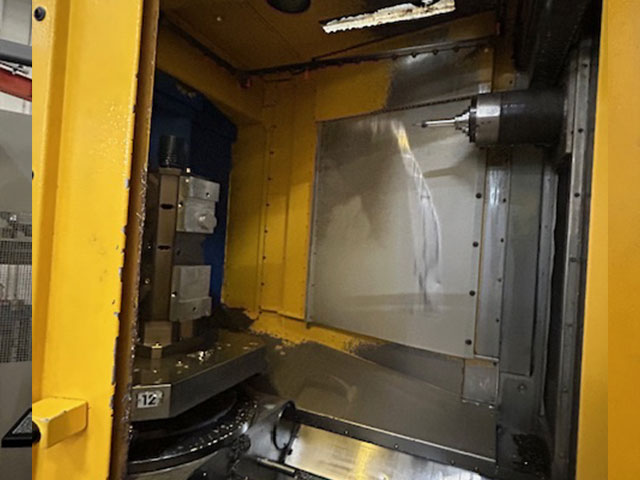

WORKING AREA:
Longitudinal X-axis travel: 1000 mm
Vertical Y-axis travel: 850 mm
Transverse Z-axis travel: 850 mm

ELECTRIC SPINDLE:
Spindle mounting cone: HSK – 63
Max. spindle speed: 14,000 rpm

PALLET:
Pallet dimensions: 630 x 630 mm

TOOL MAGAZINE:
Tool holder: HSK – 63
Magazine capacity: 160

Machine includes:
• 10-station pallet magazine
• Pallet transport shuttle
• Manual rotary loading/unloading station
• Access door
• Chip conveyor
• Instruction manuals and CE Declaration
Year of manufacture: 2009

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
