Technical Specifications
TECHNICAL SPECIFICATIONS:
CNC MSX 701 III
Travel (X/Y/Z axes): 900/800/980 mm
Pallet work surface: 630 x 630 mm
Pallet load capacity: 1,200 kg
Maximum spindle speed (high torque): 8,000 rpm
Rapid feed rate (X, Y, Z): 50 m/min
Tool magazine capacity: 240 tools
Spindle motor (30 min/cont.): 37/30 kW
Machine configuration:

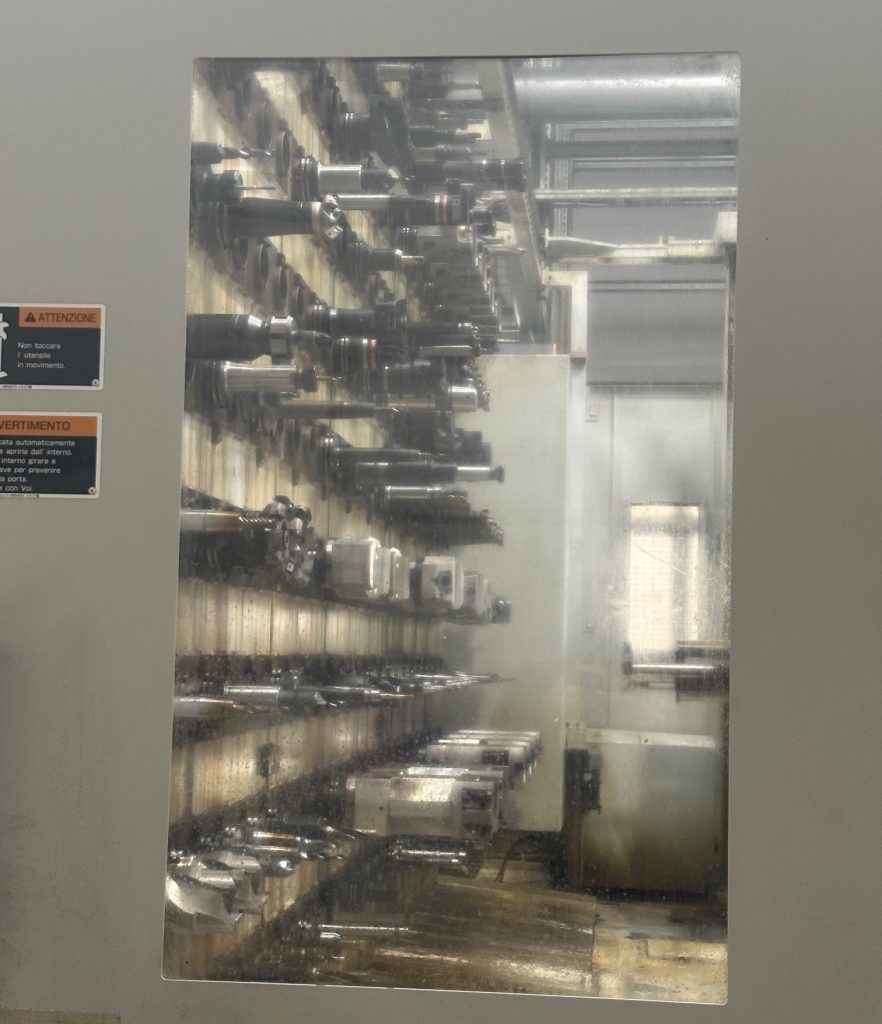

240-tool tool magazine RACK DIN 69871 ISO 50 spindle connection
Tool breakage detection in the tool magazine
1-degree indexing table
FASTEMS interface, model MLS-MD

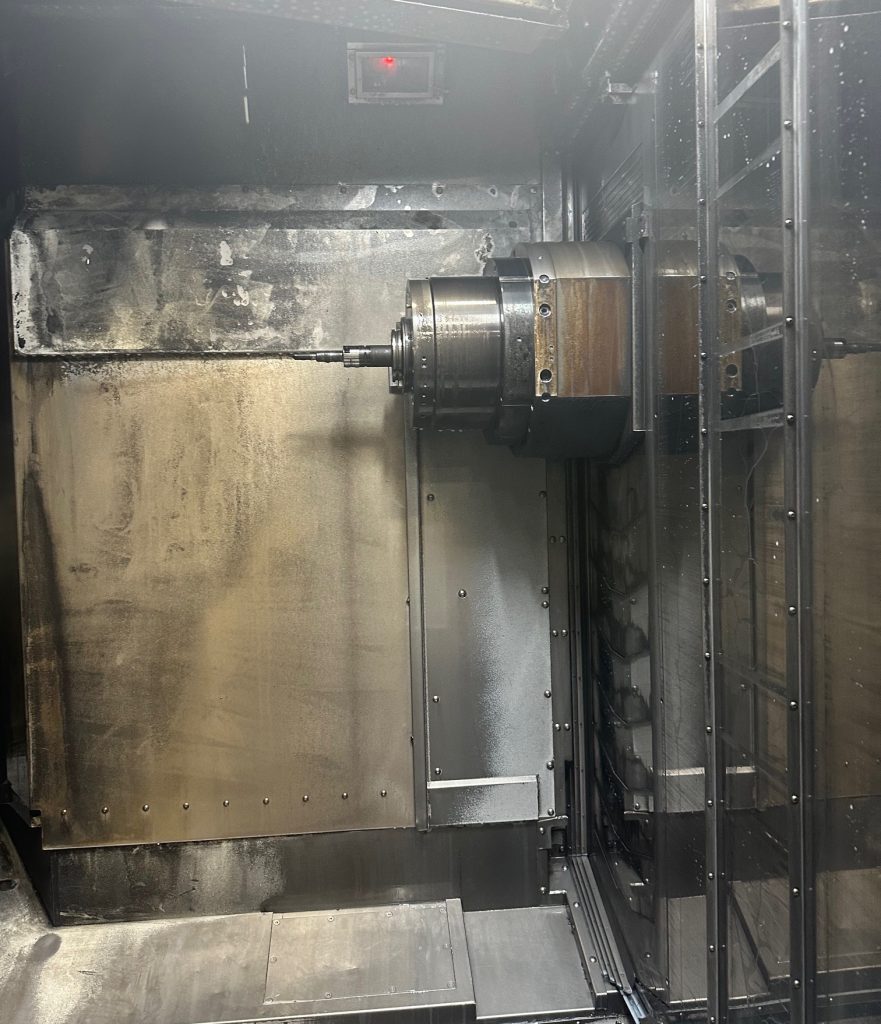

Spindle speed 8,000 rpm, 37 kW/30
BALLUF TOOL IC SYSTEM interface
600 macro variables
1 load monitor
200 storable programs
512 tool life management
999 tool offsets
48 workpiece origins
Data server + ATA CARD
Mori Seiki drag-type chip conveyor with
MARPOSS application, model MIDA T25G with E86N radio frequency transmission
META pump tank, model M 50/50, with partial filtration, high pressure 50 bar
COMET perforated pallet
Instruction manuals and EC Declaration of Conformity
Year of construction: 2007
The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
