TECHNICAL SPECIFICATIONS:

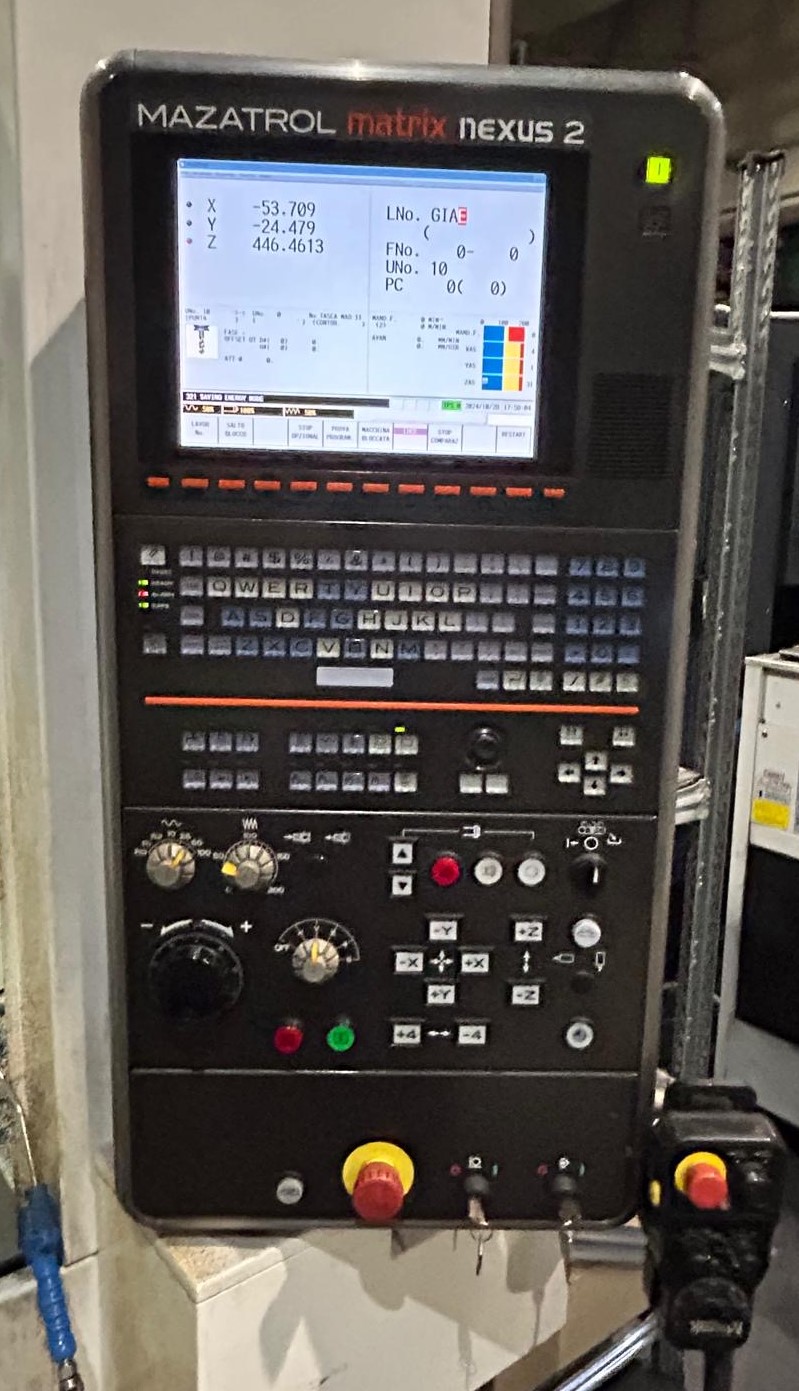

CNC Mazatrol Matrix Nexus 2

WORK AREA:

X-axis travel: 1,020 mm

Y-axis travel: 510 mm

Z-axis travel: 460 mm

Distance between the top of the table and the spindle nose: 200–660 mm

Actual distance between the posts: 1,380 mm

TABLE:

Table dimensions: 1,200 x 550 mm

Load capacity (evenly distributed): 1,200 kg

CHUCK:

Maximum rotational speed: 12,000 rpm

Spindle taper type: ISO 40

ASSI:

Rapid feed rates for the X, Y, and Z axes: 52 m/min

Max. cutting speed: 52 m/min

TOOL STORAGE:

Tool storage: 30 slots

Max. tool diameter / length / weight: 80 mm / 300 mm / 8 kg

Max. diameter with adjacent spaces empty: 125 mm

Tool position selection type: random

Tool change time (chip-to-chip): 3 .7 sec.

DIMENSIONS:

Height: 2925.5 mm

Width: 2475 mm

Length: 2995 mm

Machine weight: 8,500 kg

Machine comes complete with:

• Instruction Manuals and EC Declaration

Year: 2014
