TECHNICAL SPECIFICATIONS:

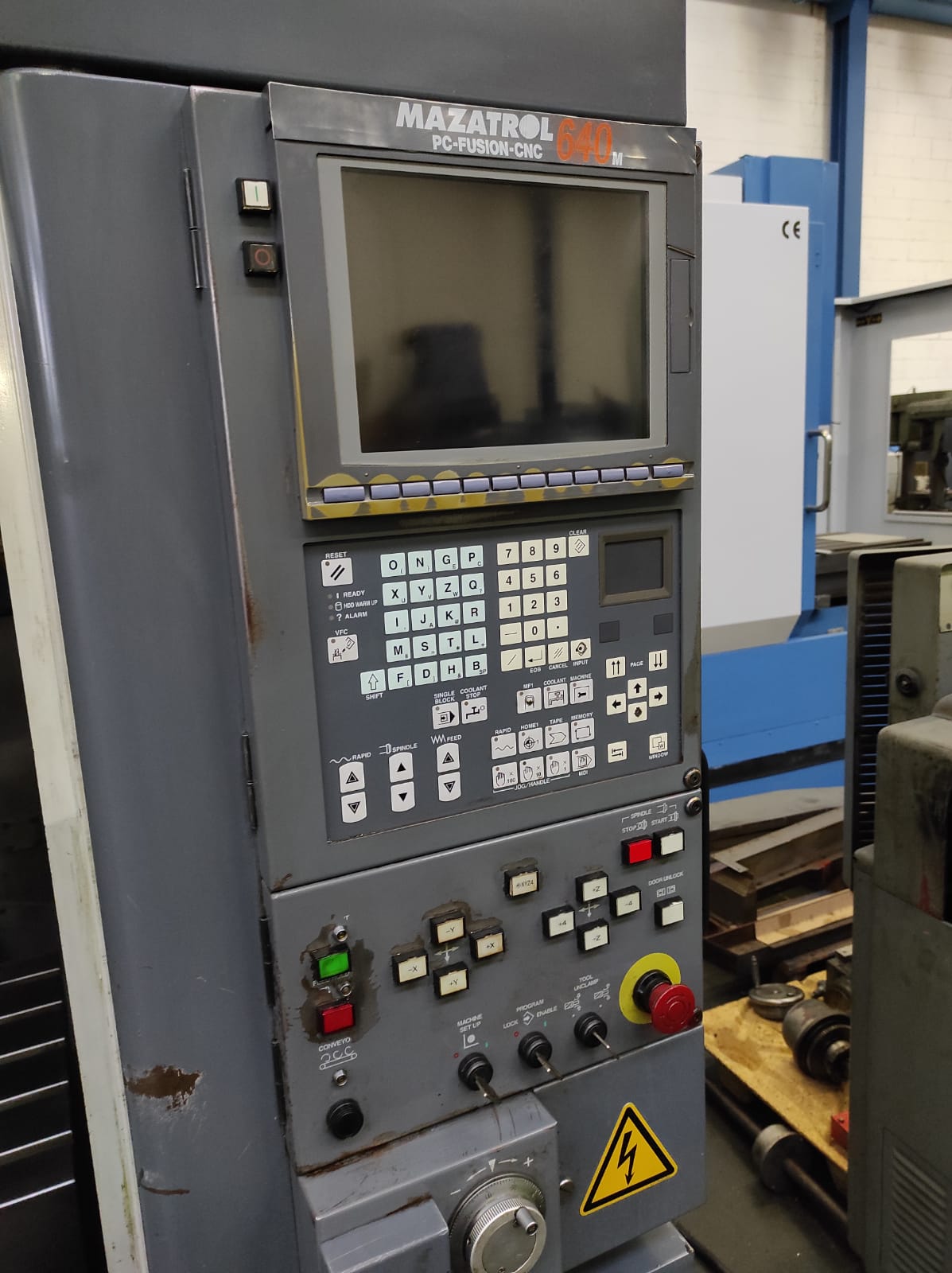

Mazatrol MF-640M CNC
Longitudinal stroke X: 1,020 mm
Y-axis travel: 510 mm
Vertical travel (Z-axis): 460 mm
Distance from table to spindle nose: 200–660 mm
Distance between columns: 1,360 mm
Table dimensions: 1,200 x 550 mm
Table load capacity: 800 kg
Table surface configuration: 5 T-slots, 18 mm wide, spaced 100 mm apart
Spindle speed range: 35–12,000 rpm
Spindle taper: ISO 40
Rapid feed rate for the X and Y axes: 30 m/min
Z-axis rapid feed rate: 18 m/min
Tool holder taper: CAT 40
Tool magazine: No. 30
Year of manufacture: 1998

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
