TECHNICAL SPECIFICATIONS:

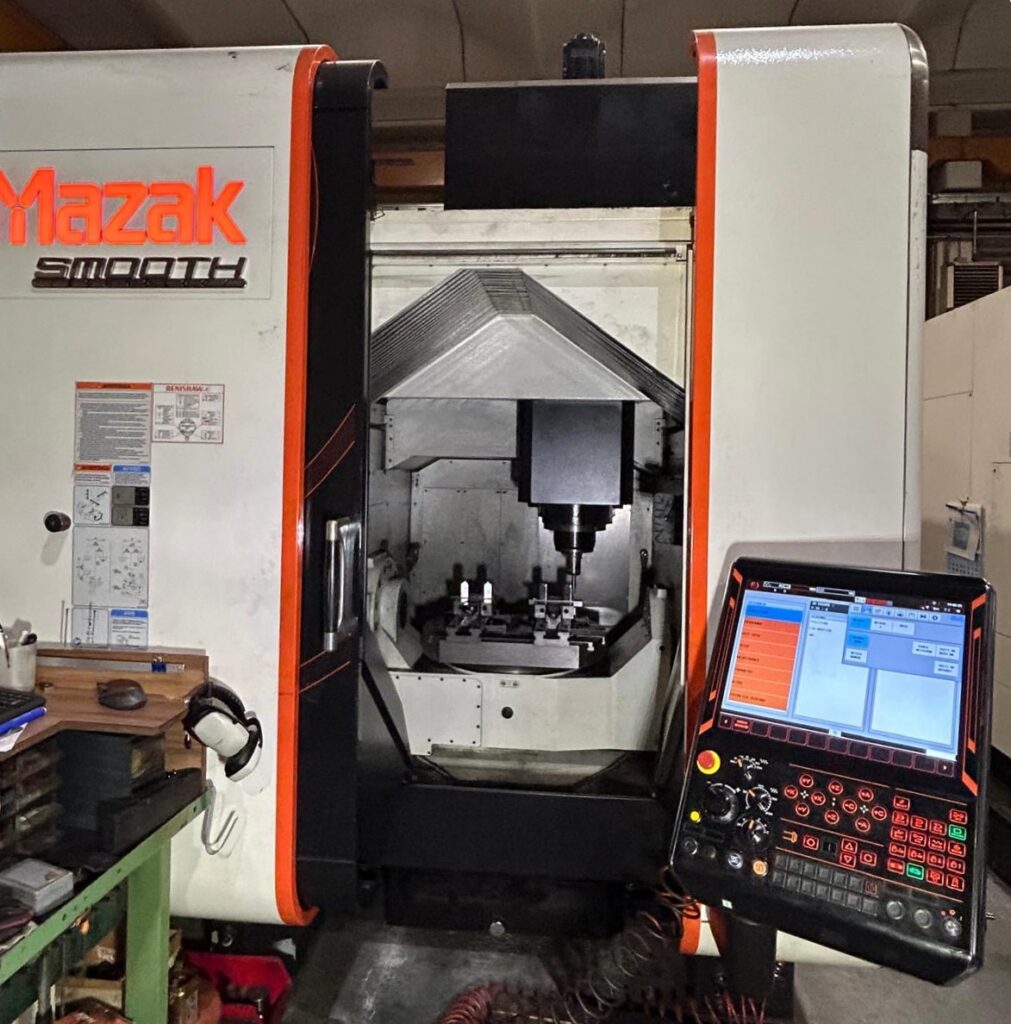

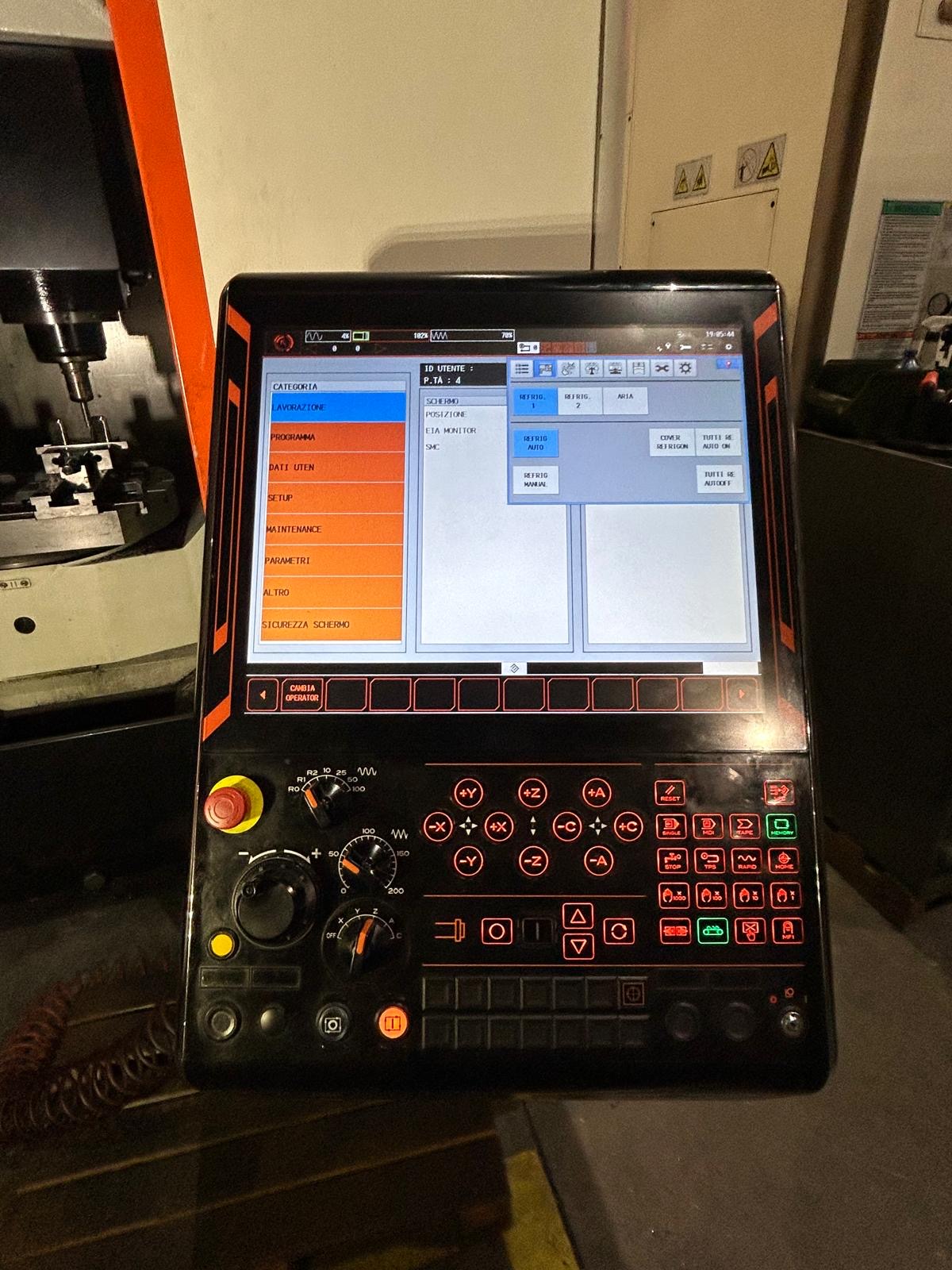

Mazatrol Smooth CNC

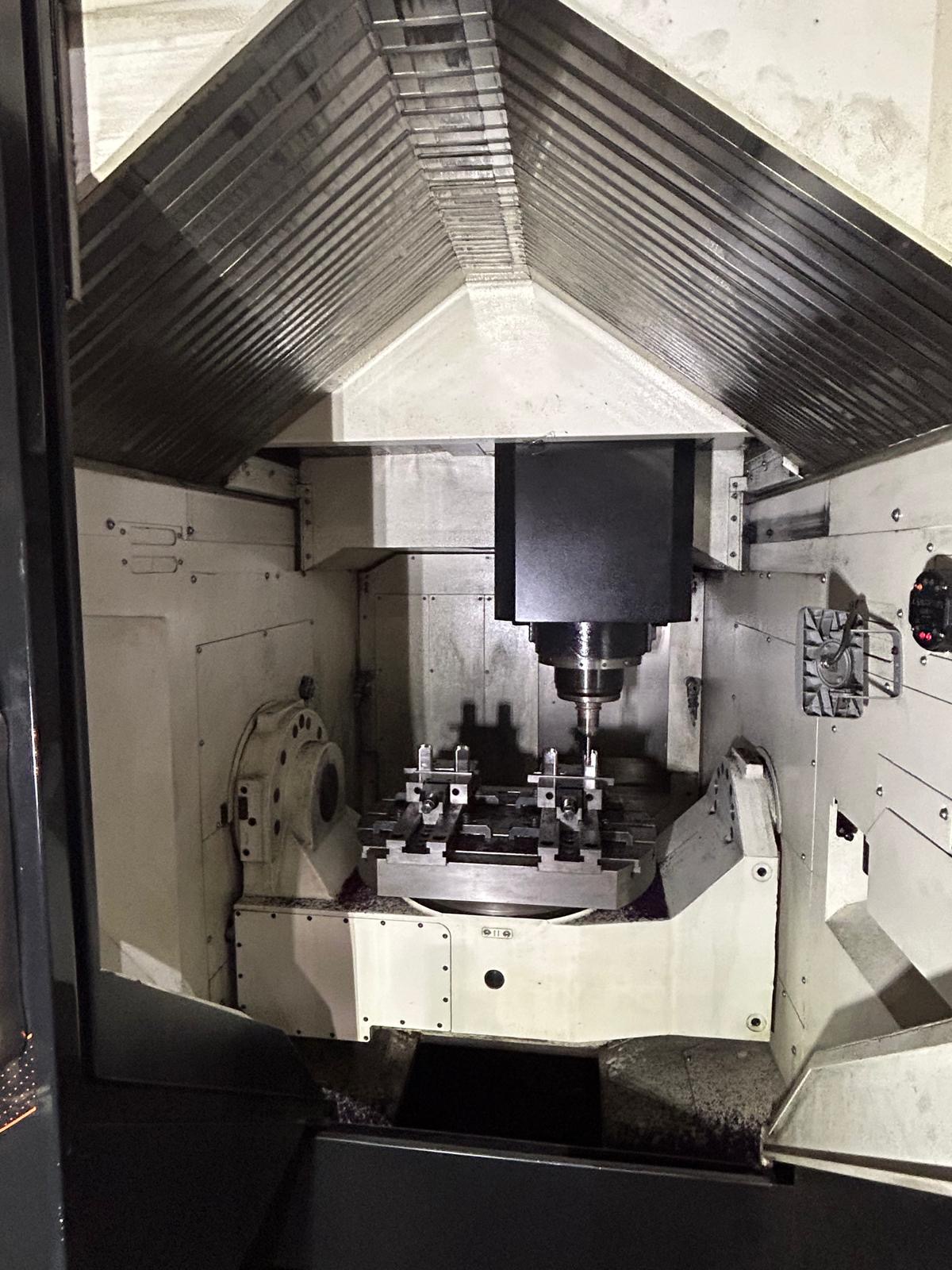

WORK AREA:

Maximum workable diameter: 850 mm

Maximum working height: 500 mm

X-axis travel: 630 mm

Y-axis travel: 1,100 mm

Z-axis travel: 600 mm

A-axis (tilting table with 0.0001° indexing): from -120° to 30° (axis control)

Axis C (table rotation) indexing 0.0001°: ±360° (axis control)

TABLE:

Distance between the table and the spindle nose: 100–700 mm (horizontal table)

Clamping surface: 700 x 500 mm

Maximum workpiece dimensions: 850 x 500 mm

Max. table load: 700 kg

CHUCK:

Maximum rotational speed: 25,000 rpm

Spindle taper type: HSK-A63

ASSI:

Rapid feed rates for the X, Y, and Z axes: 60, 60, and 56 m/min

A and C-axis rapid traverse: 18,000 °/min

X, Y, Z Feed Rate: 56 m/min

A and C axis speed: 18,000 °/min

Simultaneously controlled axes: 5

Minimum indexing increment: 0.0001°

A-axis indexing time: 0 .55 sec/90°

TOOL STORAGE:

Tool storage: 30 slots

Max. tool diameter / length / weight: 90 mm / 360 mm / 8 kg

Max. diameter with adjacent spaces empty: 130 mm

Tool position selection type: random

Tool change time (chip-to-chip): 3 .6 sec.

DIMENSIONS:

Height: 3457 mm

Width: 2400 mm

Length: 4295 mm

Machine weight: 15,000 kg

Machine comes complete with:

• Instruction Manuals and EC Declaration

Year built: 2019

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
