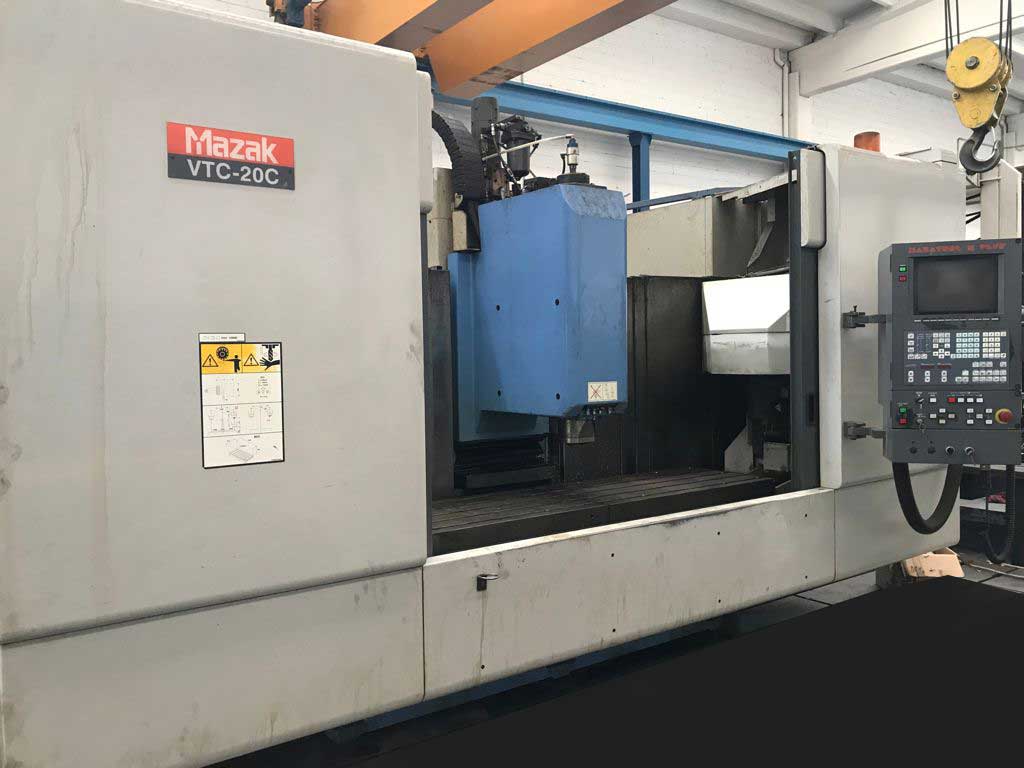

TECHNICAL SPECIFICATIONS:

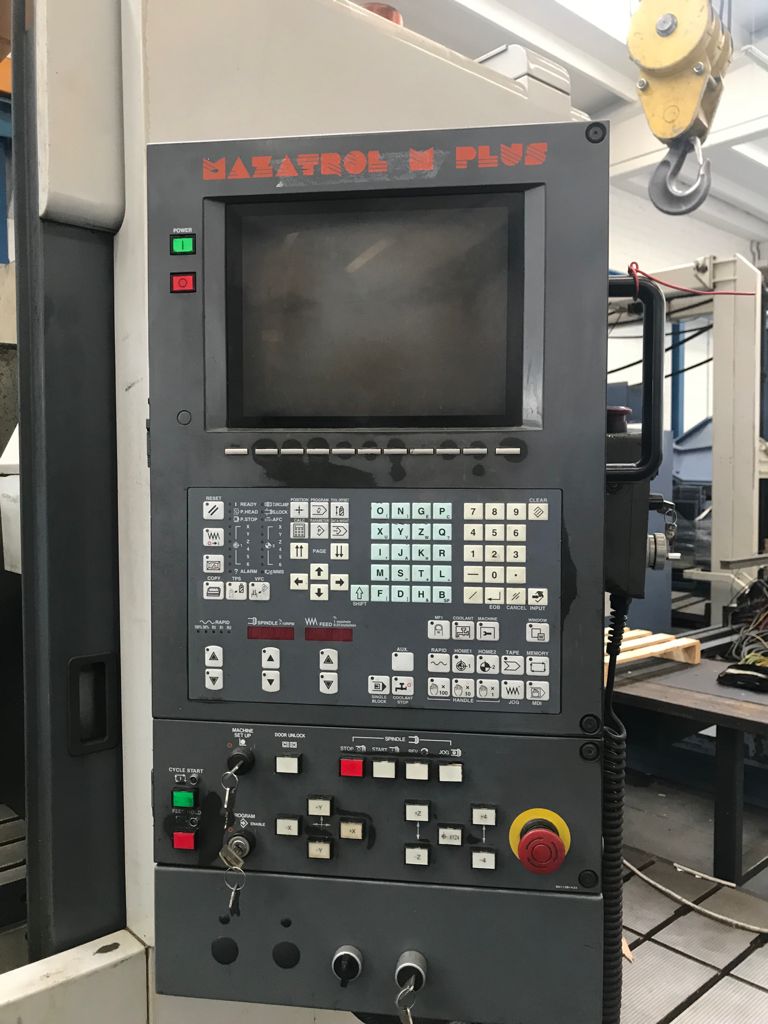

CNC Mazatrol M PLUS
Longitudinal X travel: 1,660 mm
Transverse Y travel: 510 mm
Vertical Z travel: 510 mm
Table-to-spindle distance: 180–690 mm
Column-to-spindle-center distance: 550 mm
Table dimensions: 2,000 x 510 mm
Maximum load: 1,000 kg
Spindle speed: 7,000 rpm
Spindle taper: ISO 40
Spindle motor: 15 kW
Tool holder taper: CAT 40
Tool magazine: 24 tools
Rapid traverse on X and Y axes: 24,000 mm/min
Rapid traverse on Z axis: 20,000 mm/min

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
