TECHNICAL SPECIFICATIONS:

CAPACITY:

Maximum turning diameter: 366 mm

Maximum turning length: 705 mm

RACE:

X-axis: 260 mm

Y-axis: ±50 mm

Z-axis: 795 mm

Counter-spindle stroke (B-axis): 734 mm

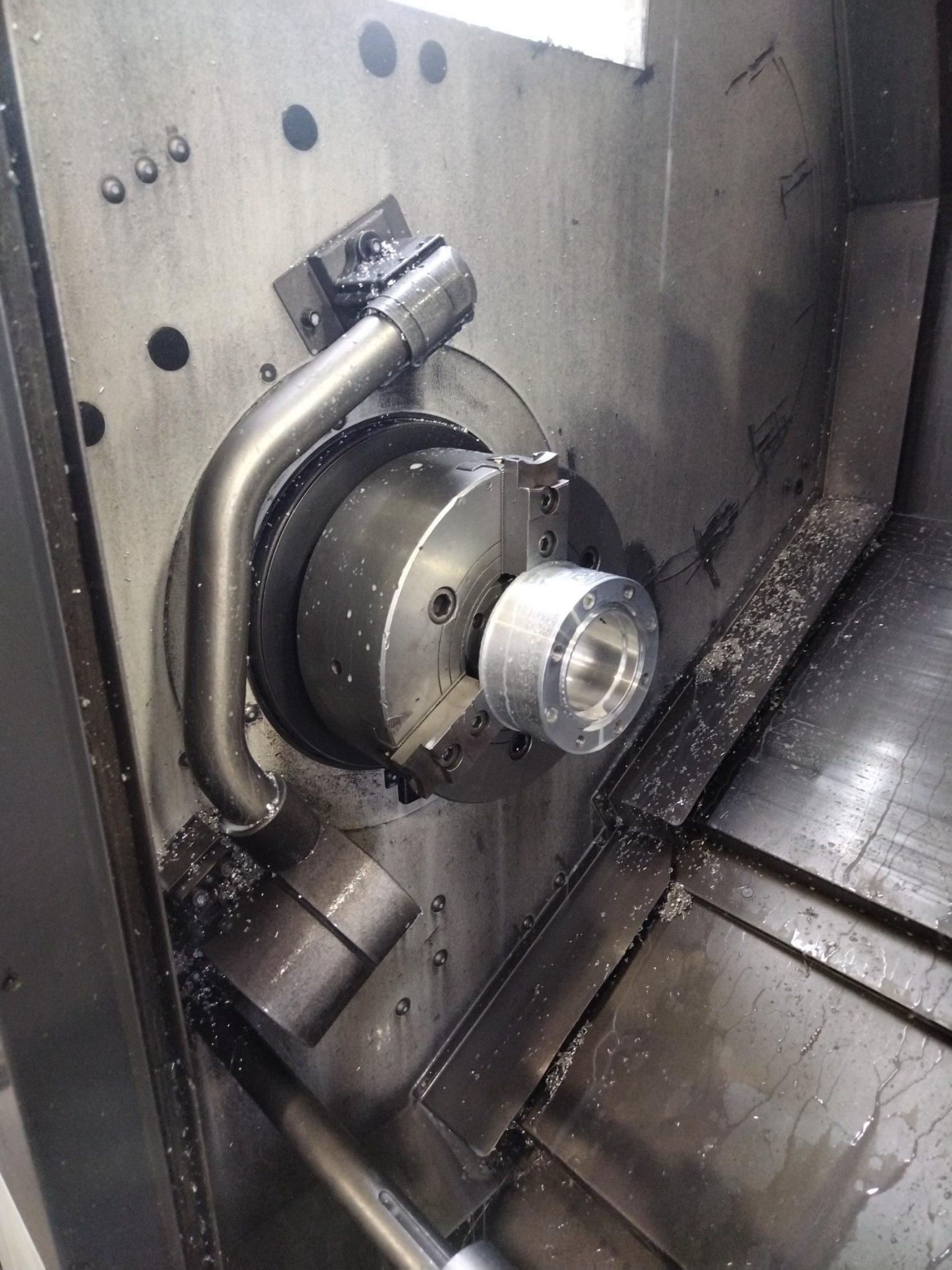

MAIN SPINDLE:

Maximum spindle speed: ⁴ ,000 ^min-1

Spindle nose: ASA 8

Spindle bore: 80 mm

Spindle power: 18.5 kW

Kitagawa self-centering diameter: 250 mm

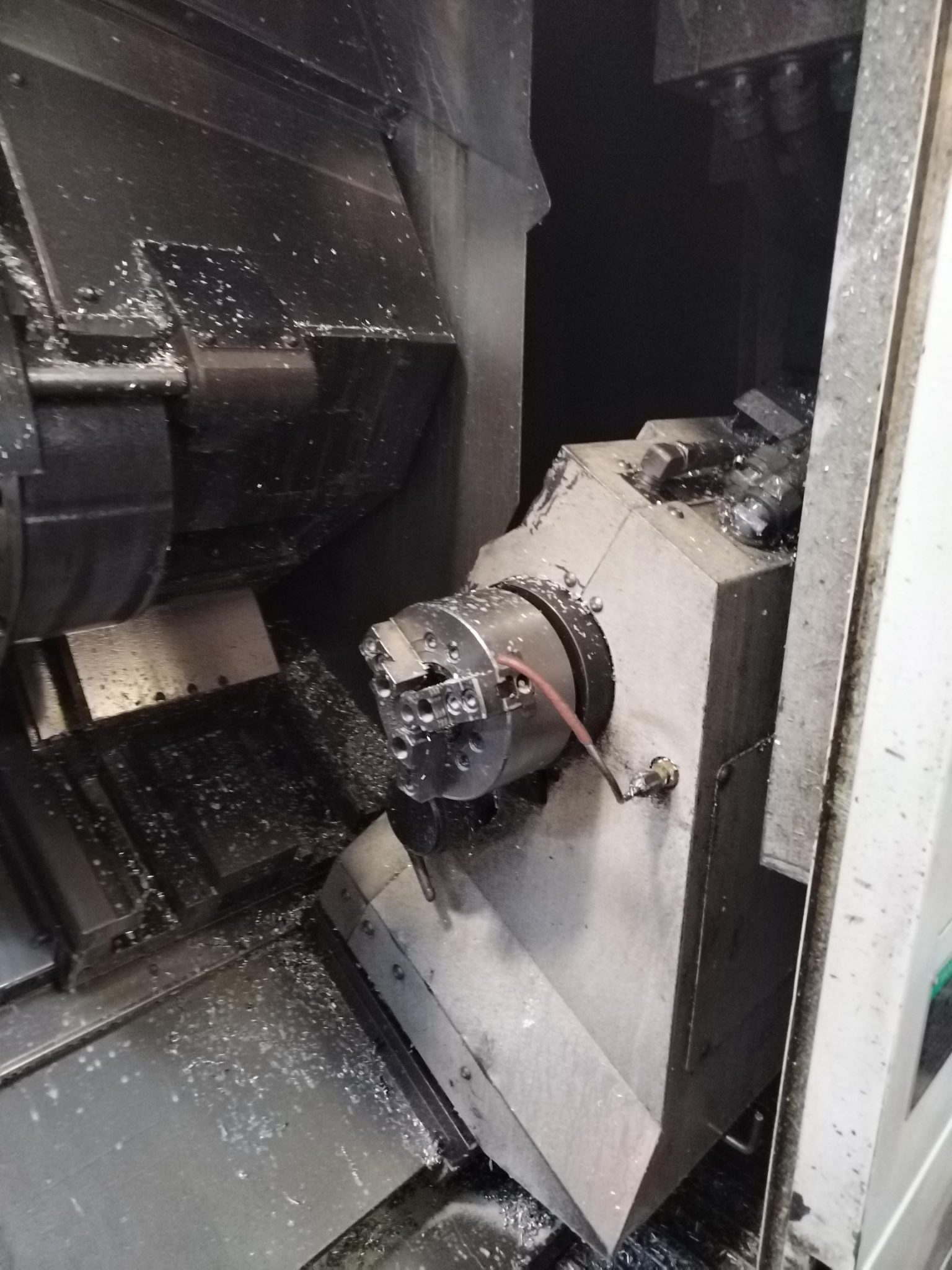

COUNTERSPINDLE:

Spindle bore: 42 mm

Kitagawa self-centering diameter: 170 mm

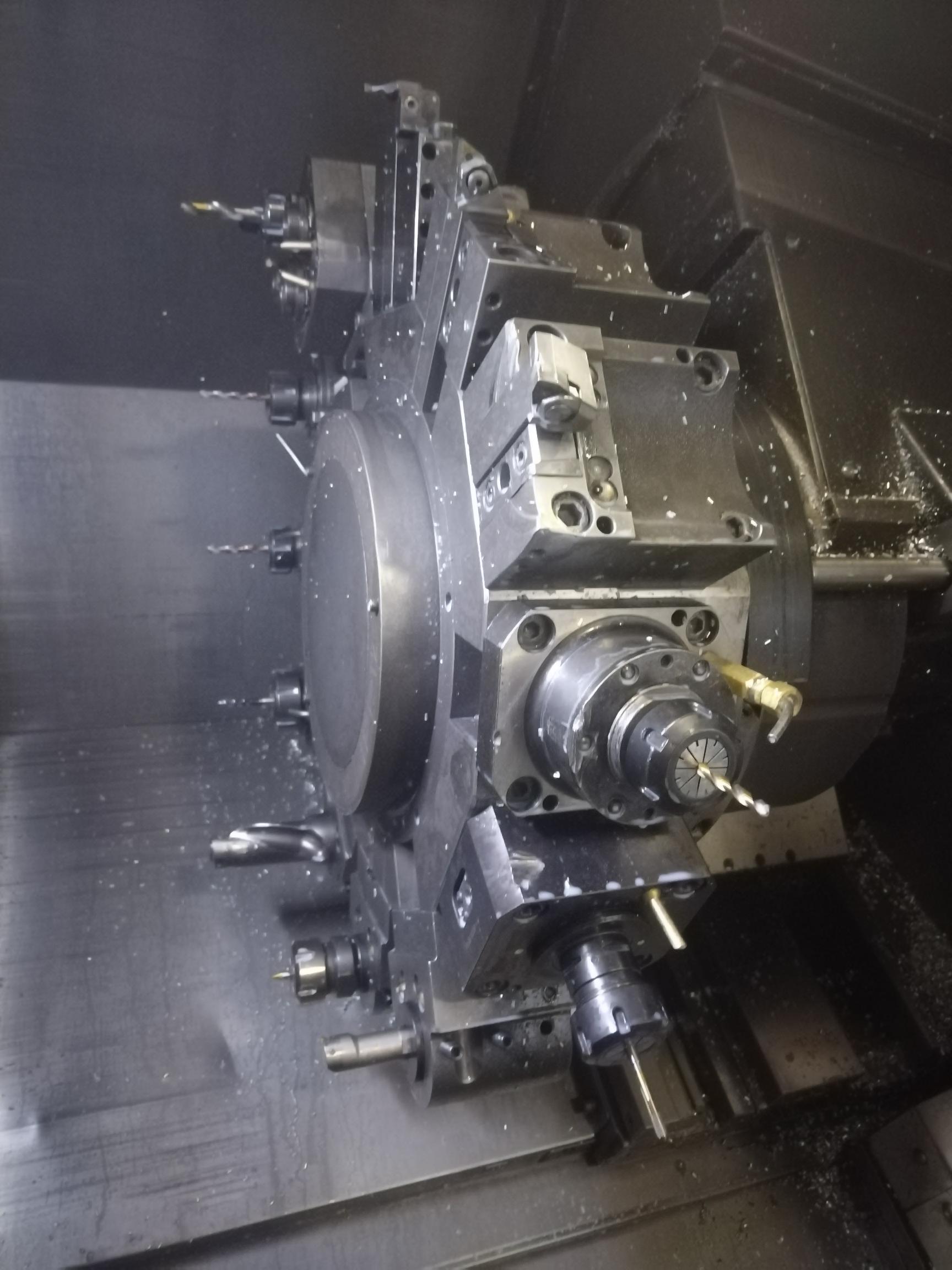

TORRETTA:

Number of motorized tool stations: 12 stations

Machine comes complete with:

• Counter-spindle
• Y-axis

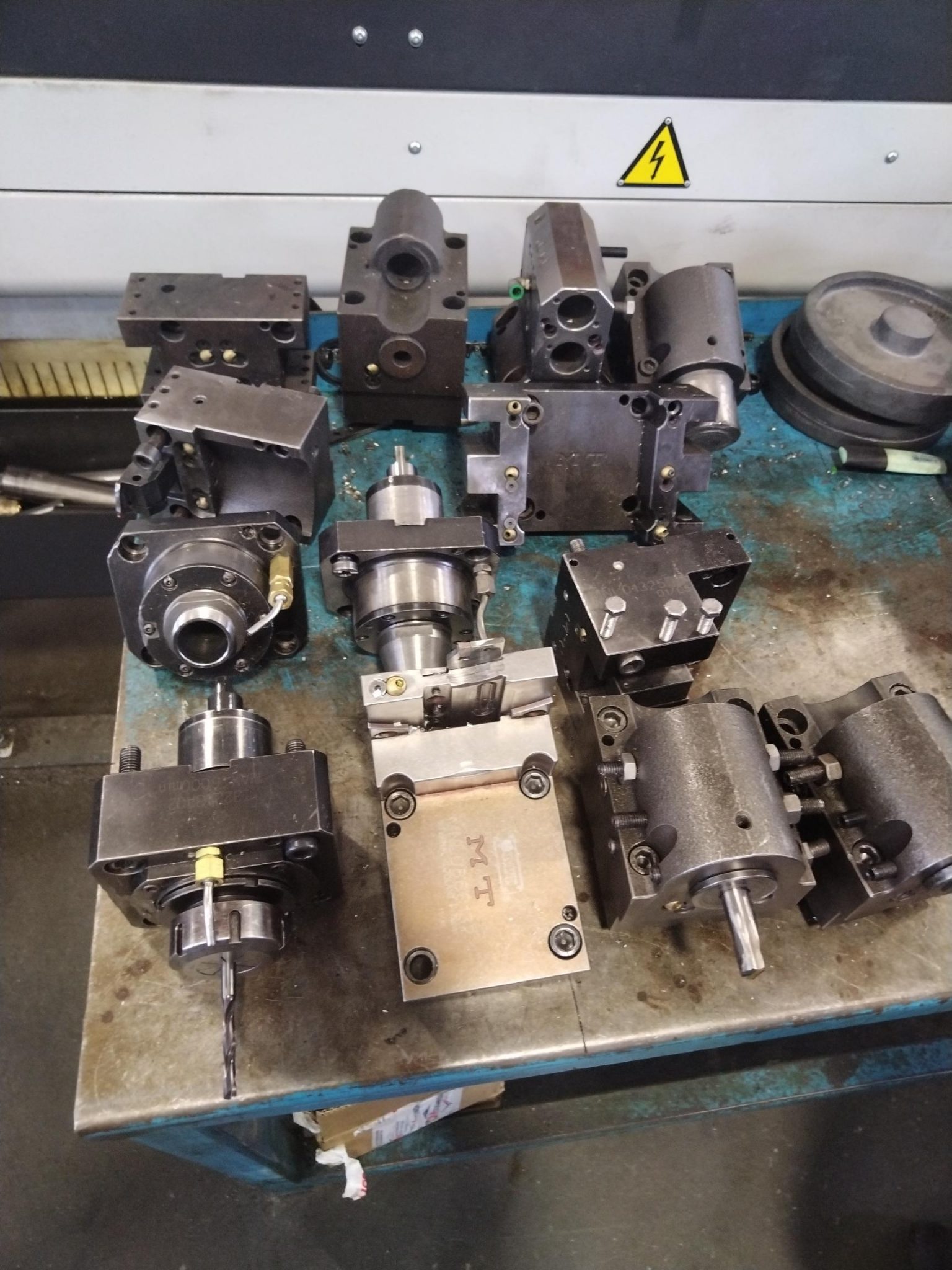

• 8 motorized modules (5 axial and 3 radial)
• Workpiece Ejection Device
• Presetting
• Bellegrandi Collet Chucks for the Main Spindle
• Interface for a bar feeder
• Chip Conveyor
• Instruction Manuals and EC Declaration

Year: 2004

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
