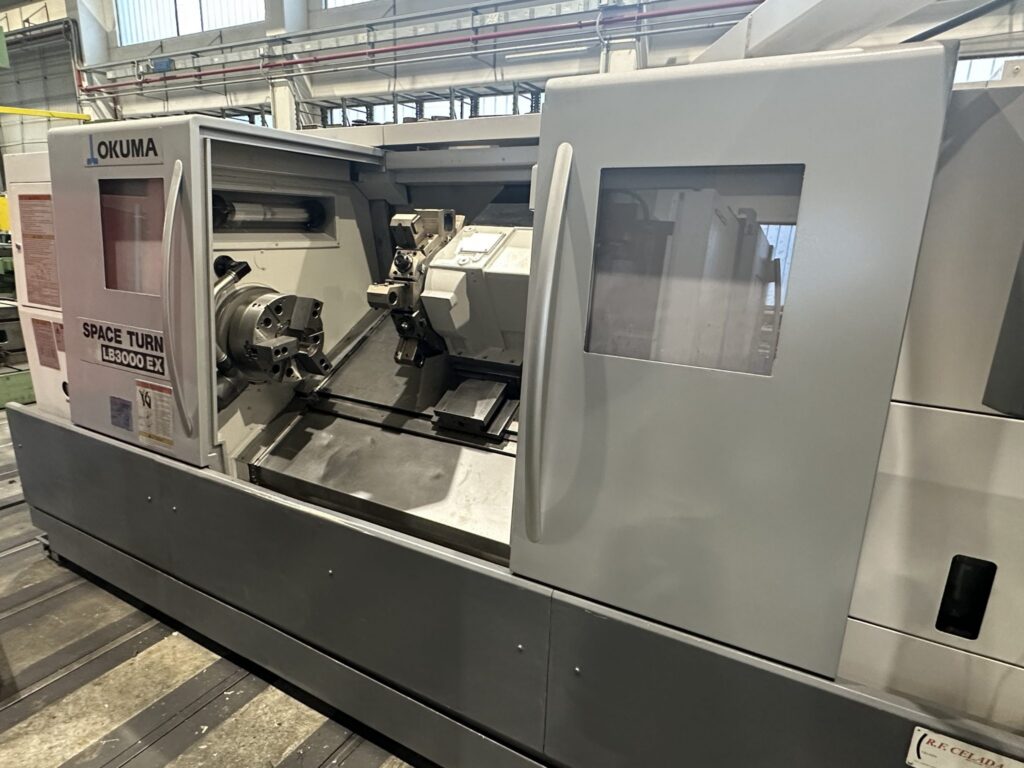

Technical Specifications
TECHNICAL DATA:
CNC OSP-P200L
WORKING CAPACITY:
Swing over carriage: 580 mm
Swing over carriage: 470 mm
Distance between centers: 1,020 mm
Maximum turning diameter x length: mm x mm 340 x 1,000
SPINDLE:
Spindle diameter: 120 mm
Spindle nose type: JIS A2-6
Through spindle hole: 80 mm
Spindle speed: 45–5,000 rpm
TRAVELS:
Z-axis travel: 1,065 mm
X-axis travel: 260 mm
C axis: 360° (increment: 0.001°)
Rapid Z, X axes: 30 m/min , 25 m/min
TURRET:
Type: V12
Number of tools: 12
Rotary tool spindle speed: 45–6,000 rpm
TAILSTOCK:
Tailstock spindle taper hole: MT No. 5
Tailstock travel: 1.015 mm
DIMENSIONS:
Floor space: 3,310 x 1,895 mm
Weight: 6.150 kg
Year of manufacture: 2008
