TECHNICAL SPECIFICATIONS:

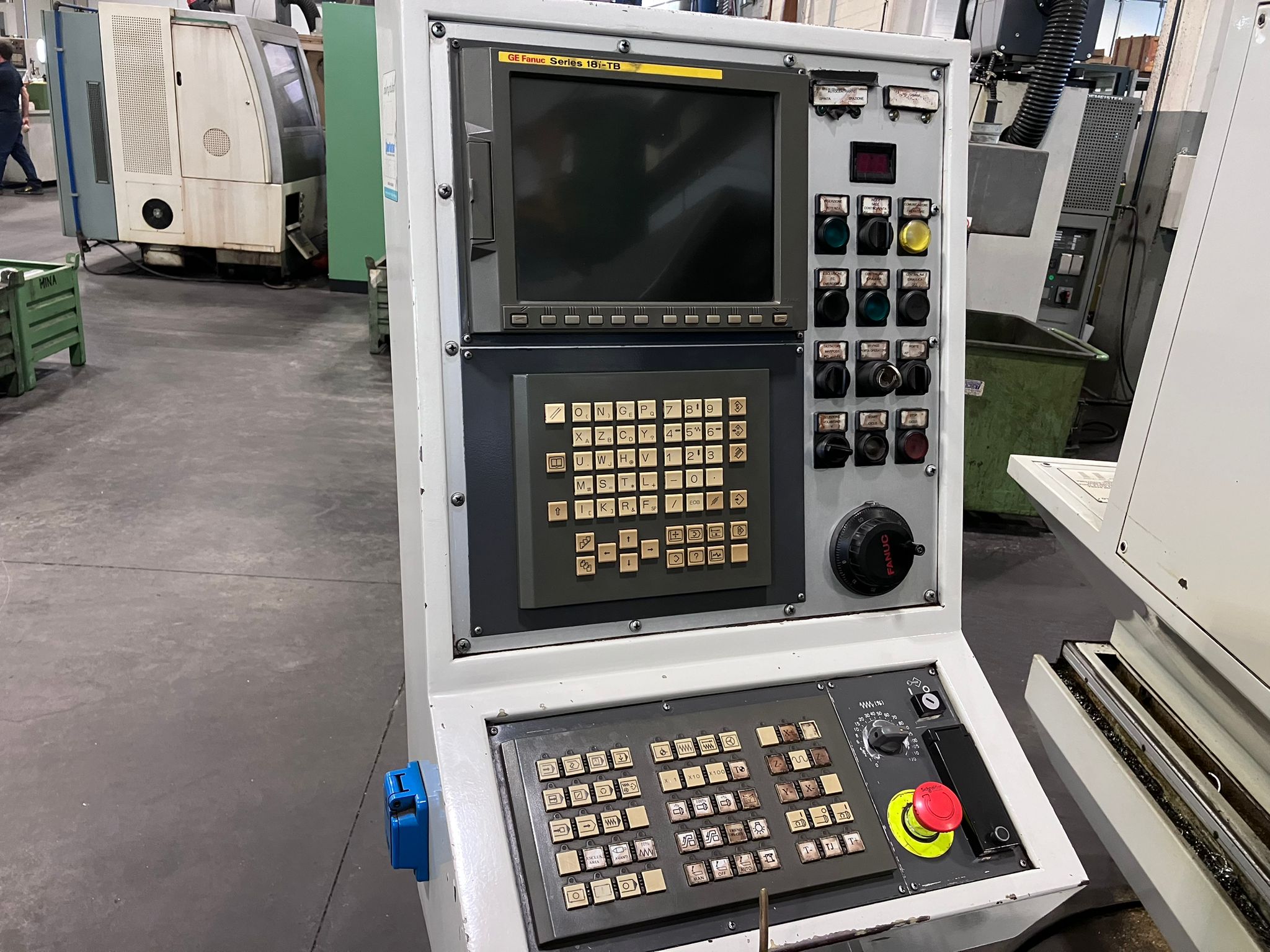

CNC Fanuc 18i-TB
Center height: 300 mm
Rotating diameter on the bed: 550 mm
Maximum turning diameter on the bed: 500 mm
Turning diameter on the cross slide: 340 mm
Distance between the tips: 1,000 mm

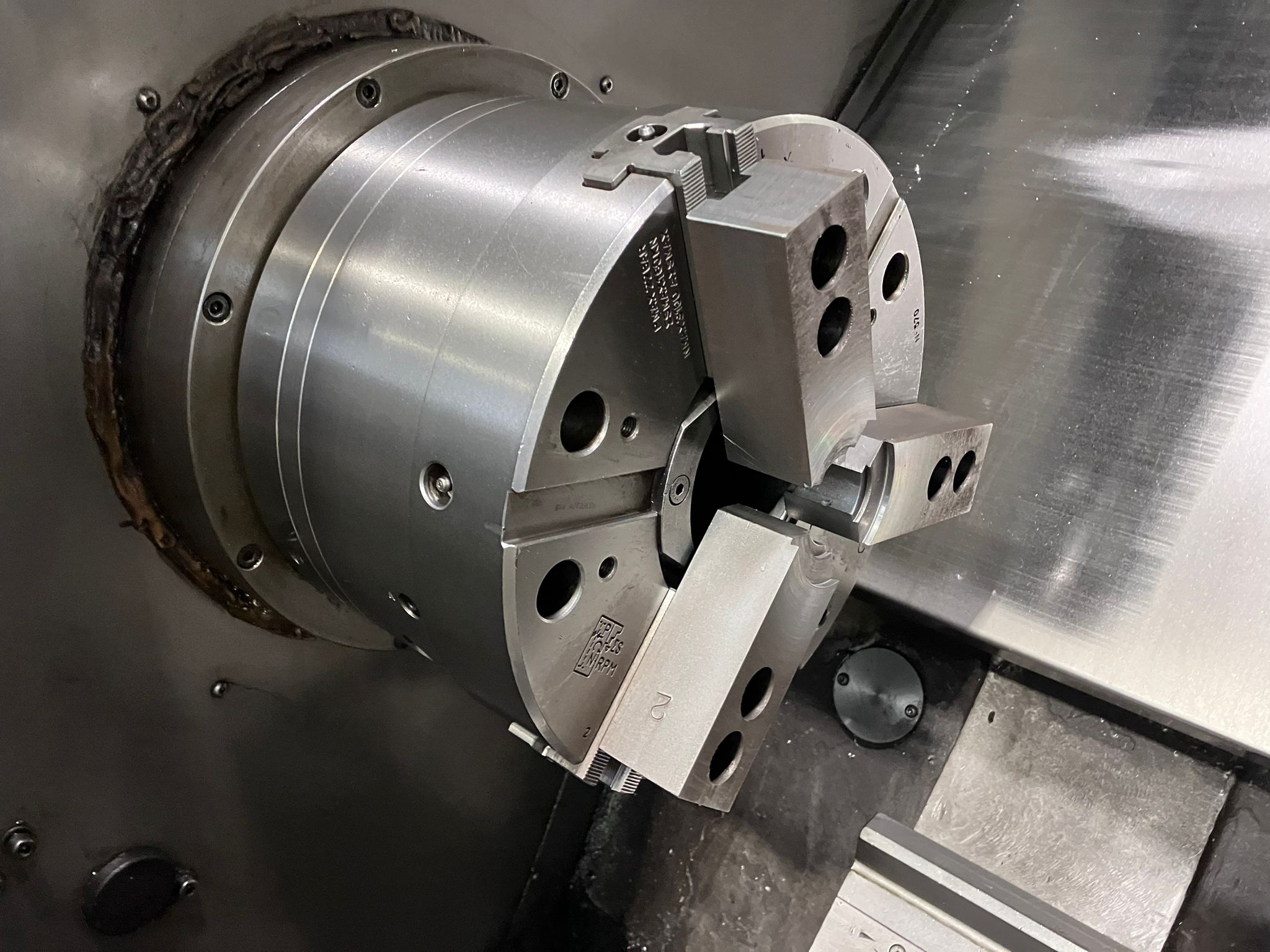

Spindle mount: ASA 11’’
Spindle bore: 102 mm
Min./max. spindle speed: 0–4,000 rpm
Speed range: 1
Longitudinal carriage guide width: 400 mm
Tailstock guide width: 220 mm
Length of cross carriage: 400 mm
X-axis travel: 300 mm
Y-axis travel: 65 mm
Z-axis rapid traverse: 18,000 mm/min

X-axis rapid traverse: 10,000 mm/min
Spindle motor power: 26 kW
Machine length x width: 4,073 x 1,809 mm
Machine weight: 5,500 kg
Year of manufacture: 2014

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
