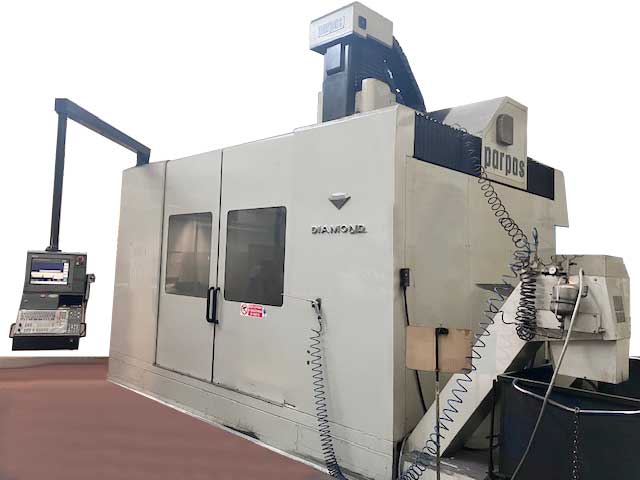

Technical Specifications
CNC: Heidenhain TNC 530
_
TRAVEL
Longitudinal: 2,200 mm (+220)
Transverse: 1,500 mm (+220)
Vertical: 1,000 mm
_
FEED RATES
X, Y rapid feed rates: 40,000 mm/min
Z rapid feed rate: 30,000 mm/min
_
MAXIMUM ACCELERATIONS
Acceleration in X, Y, Z: 7,000 mm/sec
_
AXIS ROTATION
C-axis rotation: ±400° (continuous positioning)
A-axis rotation: ±105° (continuous positioning)
_
TABLE
Table dimensions: 2,300 x 1,600 mm
Maximum load: 20,000 kg
Machine weight: 30,000 kg
_
TOOL CHANGER Number of positions: 24
Maximum tool diameter: 80 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Year built: 2006

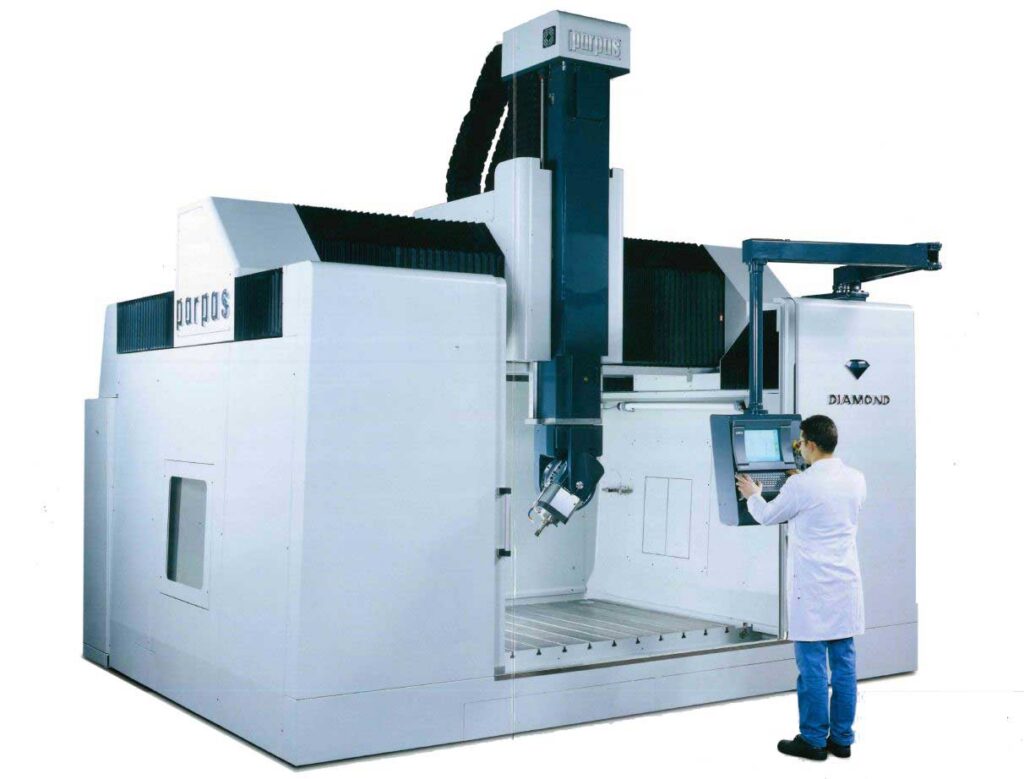

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
Machine comes complete with:
Macchina completa di:
• Testa di fresatura 5 assi TOE 24 18.000 giri/min HSK63
• Cambio utensili
• Refrigerazione attraverso l’utensile
• Trasportatore trucioli
• Manuali d’istruzione e dichiarazione CE
