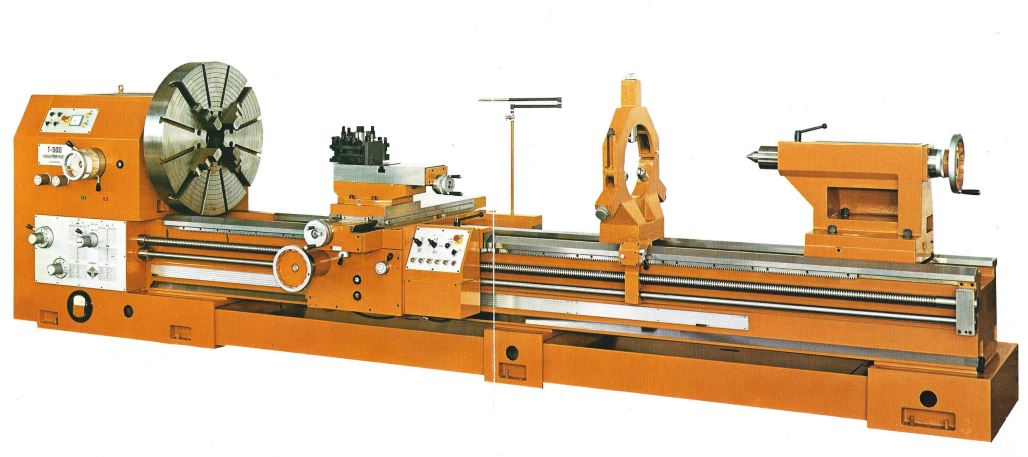

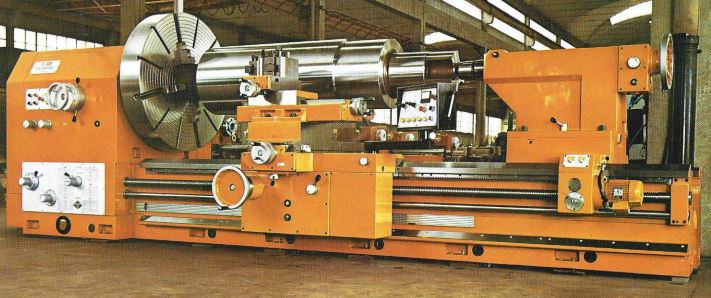

Technical Specifications
TECHNICAL SPECIFICATIONS:
Height of tips: 600 mm
Distance between tips: 3,000 mm
Maximum turning diameter
On the cross slide: 890 mm
On the pallet: 1,230 mm
On the natural recess: 1,250 mm
Bench width (hardened guides): 670 mm
Length of the groove: 480 mm
Length of the recess in front of the platform: 320 mm
CAR
Length of the guides on the bench: 1,020 mm
Transverse slide travel: 640 mm
Cart travel: 360 mm
CHUCK
Spindle nose diameter: ASA 15’’
Spindle bore diameter: 150 mm
NN front bearing dimensions: 200/310/82 mm
NNU rear bearing diameter: 190/260/69 mm
Internal Morse taper on reduction sleeve: No . 6
Rotation speed: 24
Speed range: 4–800 rpm
THREADS
Threads: 398
Metric: 0.5 to 224 mm
Modular: models 0.25–112
Whitworth: 1-inch thread , 56 to 1/8
Diameters: 112 ÷ 1/4
PROGRESS
Number: 108
Longitudinal, transverse, and roller: 0.05–22.4 mm/g
QUICK MOVES
Longitudinal, transverse, and on a cart: 2,500 mm/1’
Longitudinal return: 5,000 mm/1’
TAILSTOCK
Hub diameter: 130 mm
Morse taper: No. 6
Hub travel: 420 mm
LUNETTE
Bezel passage on the workbench: 140–500 mm
Bezel clearance on the carriage: 40–350 mm
MAXIMUM WEIGHT
Overhang: approx . 1,500 kg
Among the tips, without the bezel: approx . 5,000 kg
Among the tips, with bezel: approx . 6,000 kg
Machine weight: approx . 9,200 kg
