Technical Specifications
TECHNICAL SPECIFICATIONS:

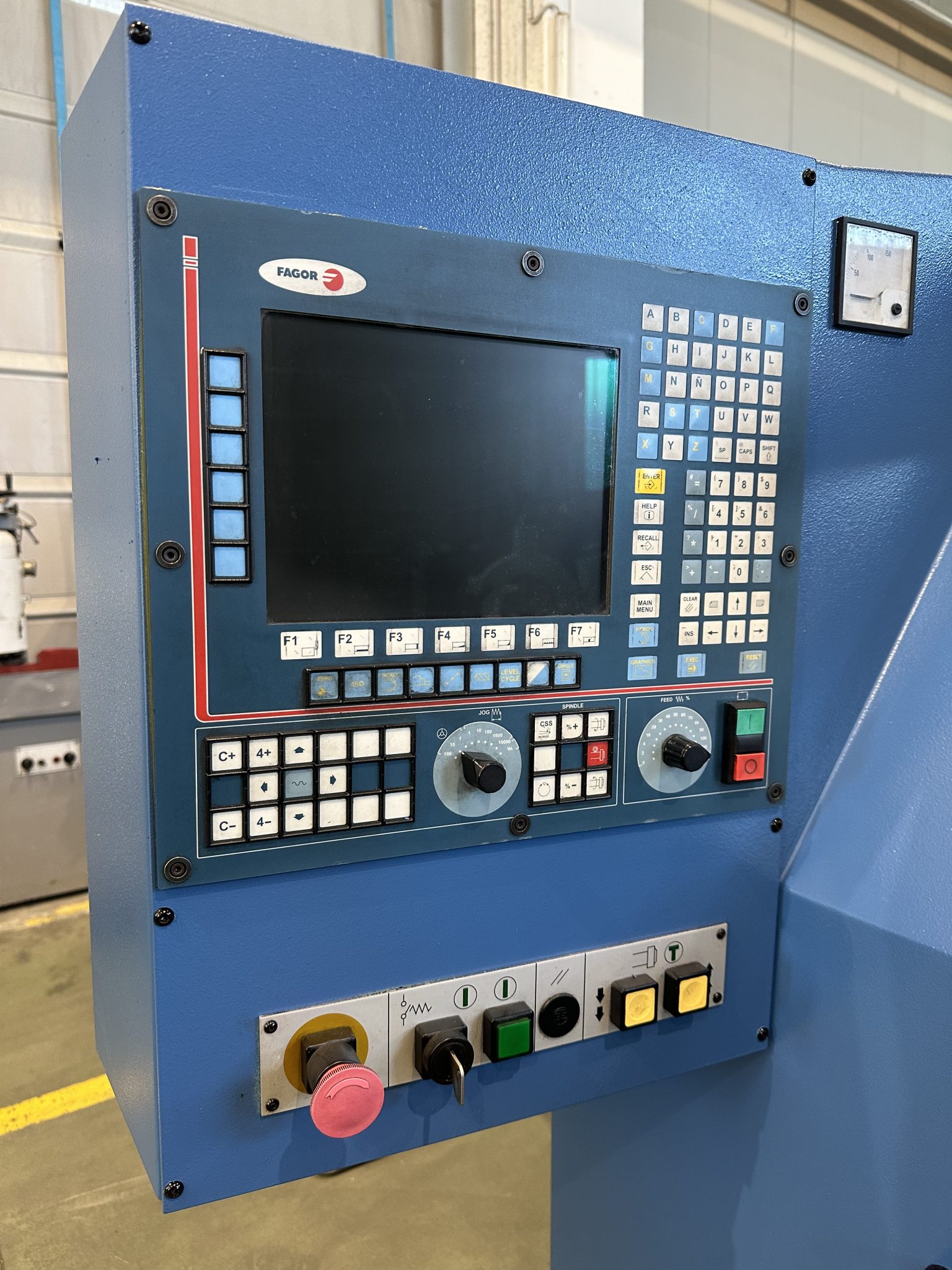

Fagor 8055 TC CNC
Tip height: 300 mm
Nominal distance between the tips: 2,000 mm
Maximum turning diameter: 600 mm
MAXIMUM PASSAGE DIAMETER:
On the pallet: 625 mm
On the cross slide: 325 mm
Bench width: 450 mm
CARRO:
Wheelbase: 750 mm
Carriage guide length: 970 mm
Transverse slide travel: 450 mm
AXIS ADVANCEMENTS:
Longitudinal/transverse feed rates: mm/min 1 – 10,000
Longitudinal/transverse feed rates: 10,000 mm/min
CHUCK:
Cam-Lock Attachment Nozzle: D .1-8’’
Spindle bore diameter: 105 mm
Speed ranges: 2
Rotational speed: 0–2,000 rpm
COUNTERPOINT:
Hub diameter: 115 mm
Morse taper: No. 6
Hub travel: 250 mm
BEZELS:
Bezel travel on the bench: 80–320 mm
Bezel clearance on the carriage: 30 mm : 210
MAXIMUM WEIGHT:
Overhang: approximately 1,200 kg
Between the tips, without the bezel: approximately 3,000 kg
Including the tips and bezel: approximately 4,000 kg
Machine weight: 6,050 kg
Machine comes complete with:
- Autoblok Self-Centering, 400 mm diameter
- Platform with 4 independent clamps, 500 mm in diameter
- Quick-Change Manual Turret
- Instruction Manuals and EC Declaration
Year built: 2001
