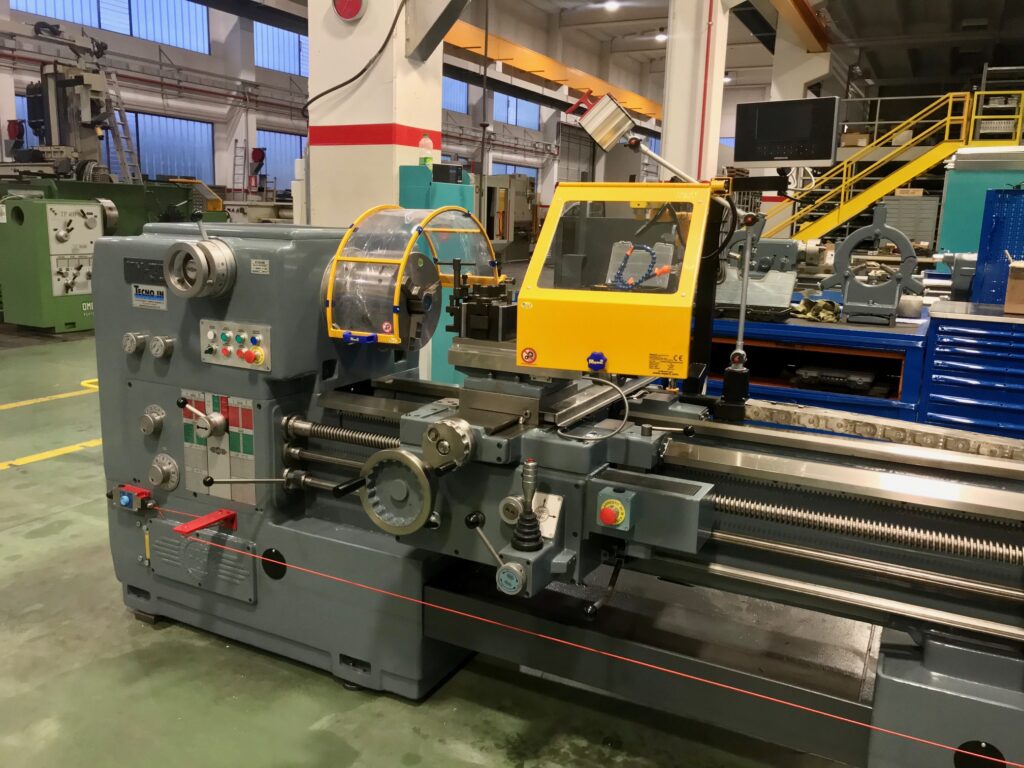

PBR T30 x 1500 Parallel Lathe

TECHNICAL SPECIFICATIONS:

Center height: 300 mm
Maximum turning diameter
Maximum diameter on cross slide: 400 mm
Maximum diameter on the bed: 620 mm
Maximum diameter in the natural recess: 860 mm
Length of induction-hardened guides: 440 mm
Groove length: 350 mm
Groove length in front of the spindle nose: 320 mm

SPINDLE
Spindle nose: ASA 8”
Spindle bore diameter: mm 105
Number of speeds: 16
Speed range: rpm 15 – 1,500
Motor power: HP. 15

TAILSTOCK
Sleeve diameter: mm 80
Clamp taper sleeve: n. 5
Sleeve displacement stroke: mm 200

THREADS (without gear changes)
No. of threads: 326
Metric: 0.5–112 mm
Modular: Mod 0.25–56
Whitworth: Fil/1’’ 56–1/4
Diametric: Diam. 112–1/2

FEED RATES
Number of feed rates per group: 90
Longitudinal: 0.05 ÷ 11.2 mm
Transverse: 0.05 ÷ 11.2 mm
Machine weight: 3,900 kg
