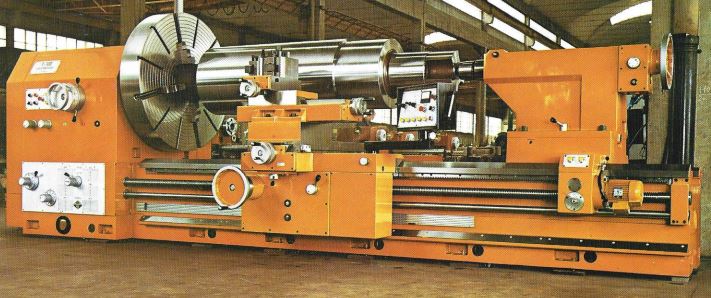

Technical Specifications
TECHNICAL SPECIFICATIONS:
Height of tips: 450 mm
Maximum turning diameter
Maximum diameter on the cross slide: 620 mm
Maximum diameter on the bench: 920 mm
Maximum diameter in the natural recess: 1,200 mm
Length of the induction-hardened guides: 570 mm
Groove length: 460 mm
Length of the recess in front of the spindle nose: 430 mm
SLED
Length of the guides above the pallet: 1,000 mm
Transverse slide travel: 560 mm
Tool holder slide travel: 340 mm
CHUCK
Spindle nose: ASA 11’’
Spindle bore diameter: 130 mm
Number of speeds: 24
Speed range: 5–1,000 rpm
Engine power: 25 HP
Number of advances: n . 108
RAPIDS
Rapid longitudinal, transverse, and slide movements: 2,500 mm/min
Rapid longitudinal return movement: 5,000 mm/1’
TAILSTOCK
Hub diameter: 115 mm
Morse taper: No . 6
Hub travel: 380 mm
LUNETTE
Minimum and maximum workable diameter with the fixed steady rest: 100–400 mm
Minimum and maximum workable diameter with the movable faceplate: 40–280 mm
MAXIMUM WEIGHT
Among the tips, without the bezel: 3,500 kg
Between the tips, including the bezel: 4,500 kg
Machine weight: 7,200 kg
