TECHNICAL SPECIFICATIONS:

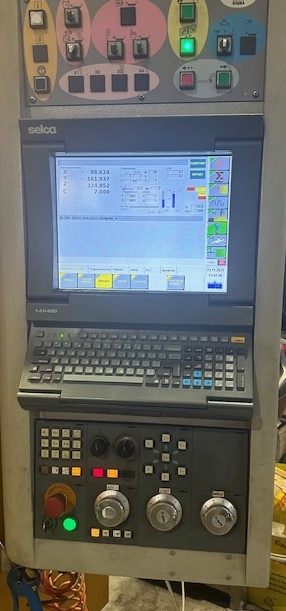

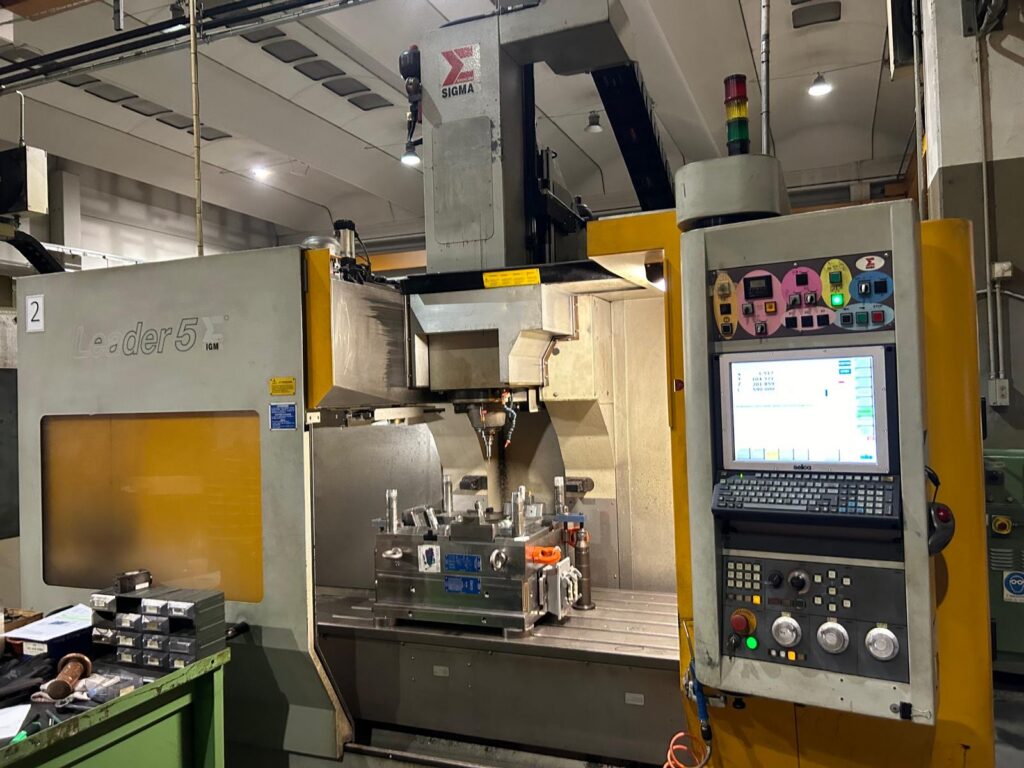

CNC SELCA S 4045

WORK AREA:

X-axis travel: 1,250 mm

Y-column cross travel: 810 mm

Z-axis vertical travel: 630 mm

Rapid feed rate for X, Y, and Z axes: 40 m/min

Acceleration: 5,000^mm/s²

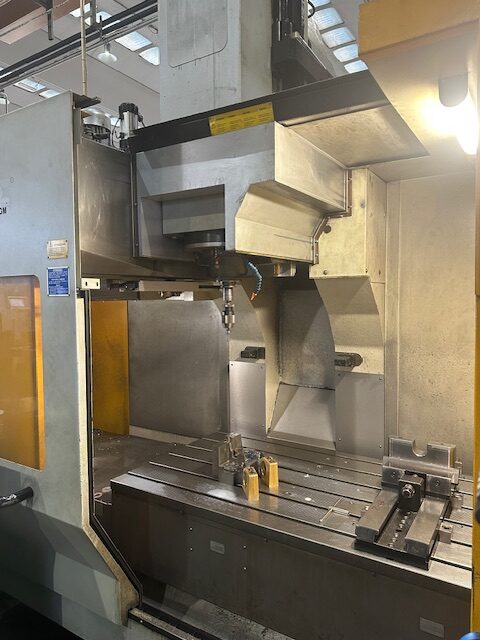

TABLE:

Table dimensions: 1,400 x 700 mm

T-slots (No. x width x pitch): 5 x 18 x 125 x H7

Maximum uniformly distributed load: 1,400 kg

MOTORIZED SPINDLE:

Spindle taper: ISO 40 DIN 69871-A

Maximum rotational speed: 15,000 rpm

Maximum power: 27 kW

Max torque: 235 Nm

Minimum/maximum distance between spindle nose and table: 150/780 mm

Maximum distance between spindle axis and column: 830 mm

TOOL STORAGE:

Horizontal-axis bidirectional chain type

Tool storage: 40 slots

Selection: Random

Maximum tool diameter: 300 mm

Maximum tool length: 350 mm

Maximum weight of each tool: 8 kg

Approximate tool change time: 1.5 sec

Approximate chip-to-chip tool change time: 4.5 sec

DIMENSIONS:

Dimensions (including the conveyor): 3,700 x 3,510 x 3,200 mm (h)

Minimum dimensions for transport: 2,400 x 2,990 x 2,740 mm (h)

Machine weight: 10,000 kg

Machine comes complete with:

• Instruction Manuals and EC Declaration

Year: 2004

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
