TECHNICAL SPECIFICATIONS:

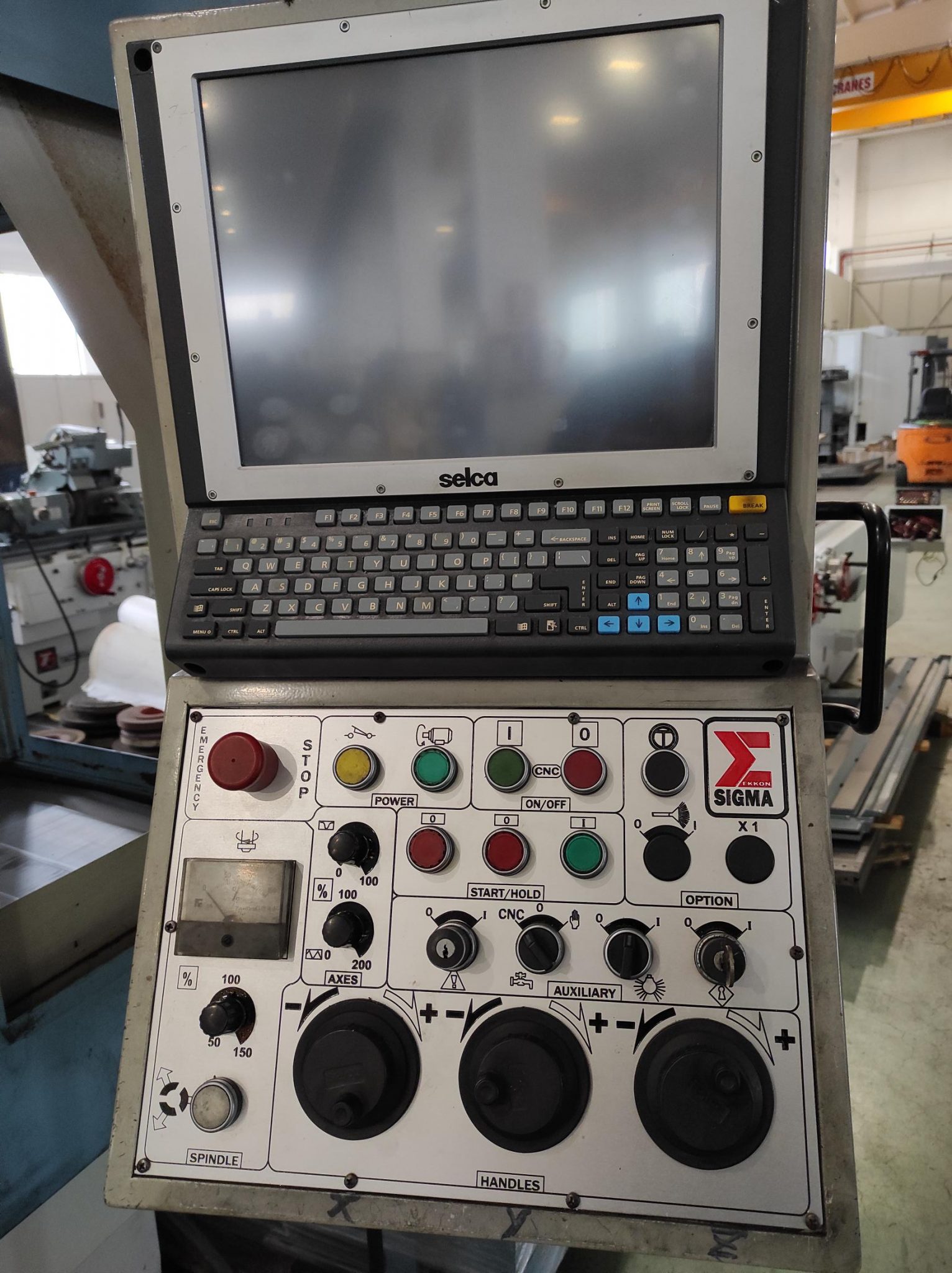

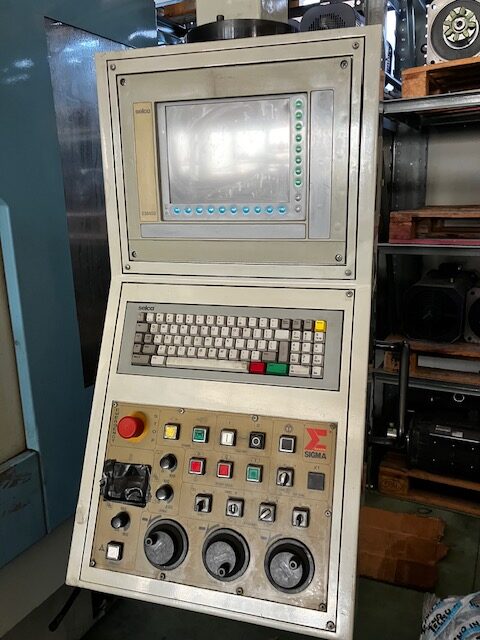

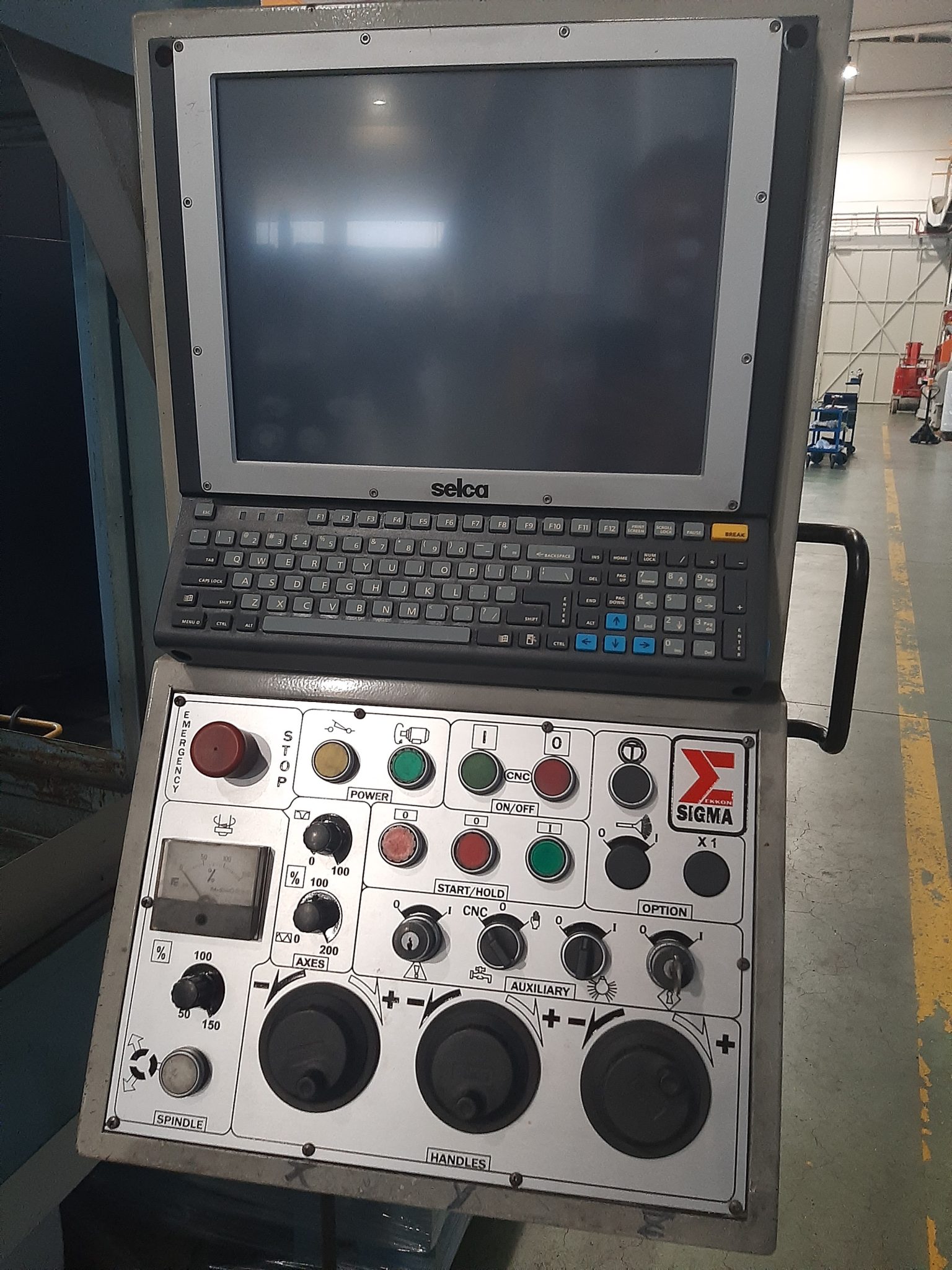

CNC SELCA S3045

TABLE:

Table dimensions: 1,750 x 650 mm

WORK RUNS:

Length of Table X: 1,600 mm

Y-axis cross member: 600 mm

Z-axis vertical travel: 685 mm

PROGRESS:

X-Y feed rates: 24,000 mm/min

Rapidi Z: 15,000 mm/min

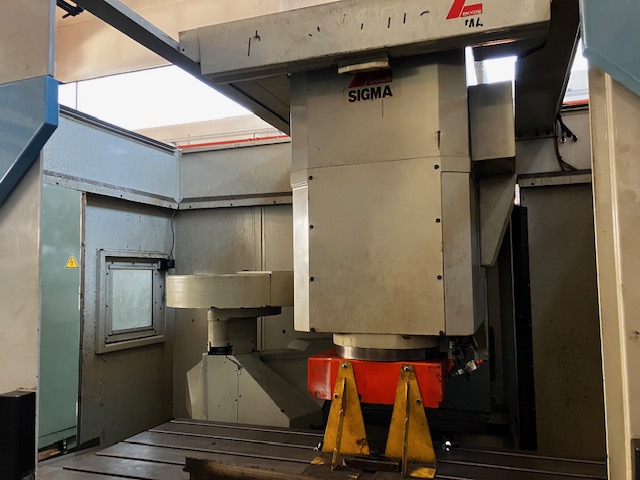

CHUCK:

Spindle taper: ISO 40

Maximum power: 25 kW

Rotational speed: 12,000 rpm

Minimum/maximum distance between spindle nose and table: 150/835 mm

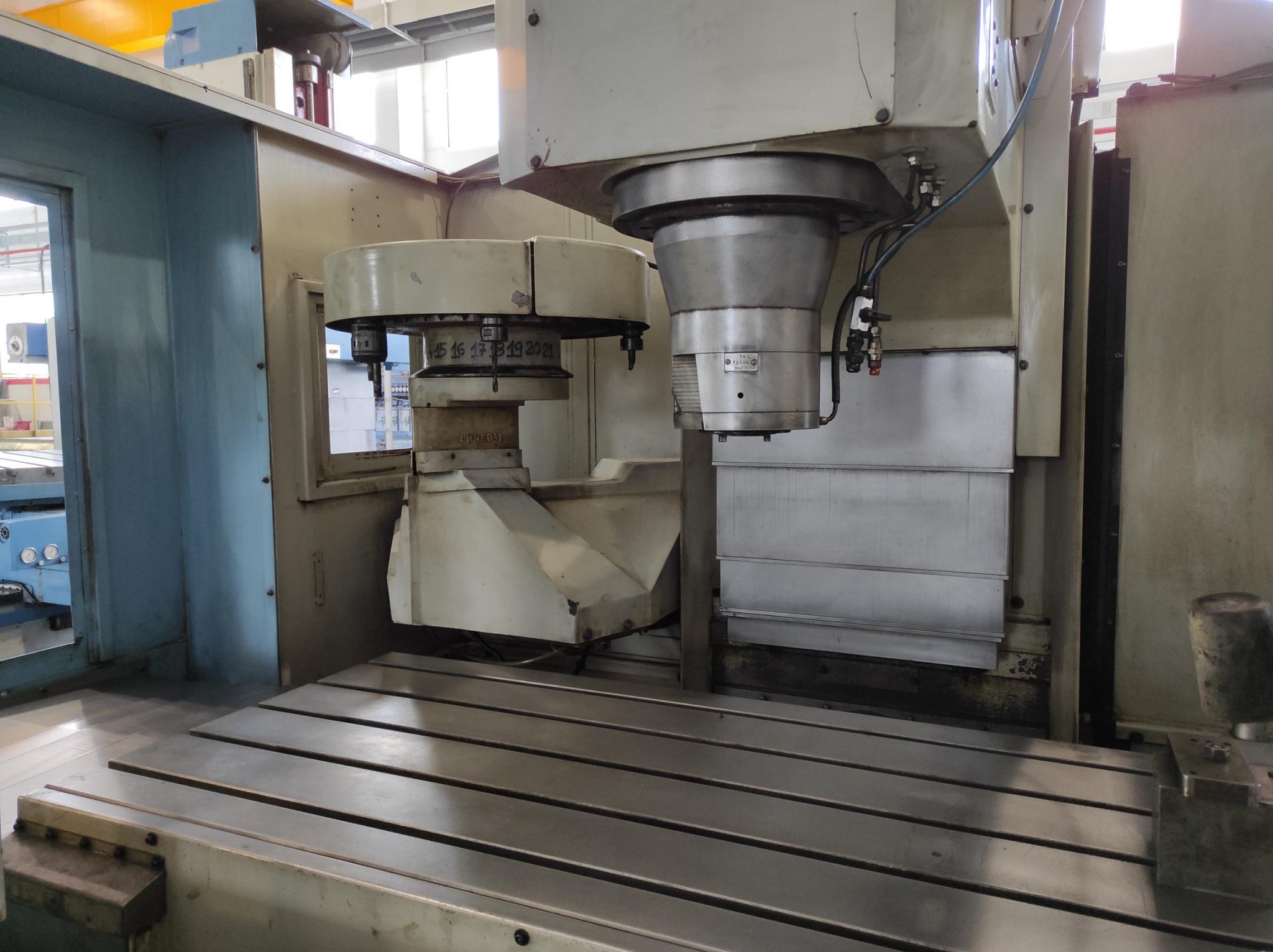

TOOL STORAGE:

Number of seats: 21

Selection: Fixed Random

Max. tool diameter: 100 mm

Tool change time: 7 seconds

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
