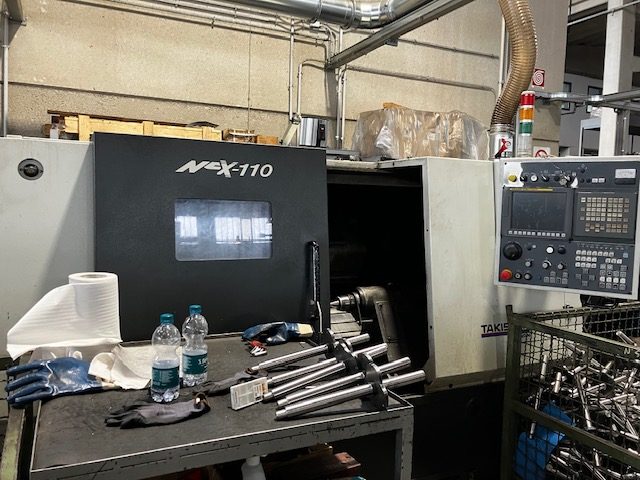

Technical Specifications
TECHNICAL SPECIFICATIONS:
Fanuc 0i-TD CNC
Year built: 2010
WORKING CAPACITY
– ROTATING DIAMETER ON THE BED: 495 mm
– ROTATING DIAMETER ON THE CARRIAGE: 400 mm
– MAXIMUM TURNING DIAMETER: 400 mm
– MAXIMUM TURNING LENGTH: 657 mm
– TIE-ROD HOLE DIAMETER: 75 mm
AXLE
RACING- X AXIS mm 220
– Z AXIS mm 710
SPINDLE
– SPINDLE NOSE ASA 8″
– SPINDLE BORE mm 86
– SPINDLE BEARING INTERNAL DIAMETER mm 120
– SPINDLE RPM WITH TWO RANGES rpm 35/3.500
– SPINDLE POWER KW 18.5/15
TURRET
– TOOL POSITIONS nr 10
– TOOL STEM SECTION mm 25X25
– BARREL DIAMETER mm 50
RAPID FEEDS
– X-AXIS m/min 18
– Z-AXIS m/min 22
CUTTING FEEDS
– X-AXIS mm/min 0/1,260
– Z-AXIS mm/min 0/1,260
TAILSTOCK
– TAILSTOCK BODY TRAVEL 580 mm
– SPINDLE TRAVEL 150 mm
– SPINDLE DIAMETER 110 mm
– SPINDLE CONE 5 cm
ENGINES
– SPINDLE MOTOR KW 18.5/15
– SERVO MOTOR X AXIS KW 1.2
– SERVO MOTOR Z AXIS KW 2.5
TANK CAPACITY
– COOLING SYSTEM TANK 220
lt- HYDRAULIC POWER UNIT TANK 40
lt- LUBRICATION UNIT TANK 20 lt
MACHINE DIMENSIONS
– HEIGHT mm 1,755
– FOOTPRINT mm 2,830 x 1,745
– WEIGHT KG 5,000
– TOTAL POWER REQUIREMENT KVA 35
Machine comes complete with:
• Autoblok self-centering device, diam. 250mm
• User and Maintenance Manuals
• Electrical Schematics
• EC Declaration of Conformity
