Technical Specifications
TECHNICAL SPECIFICATIONS:

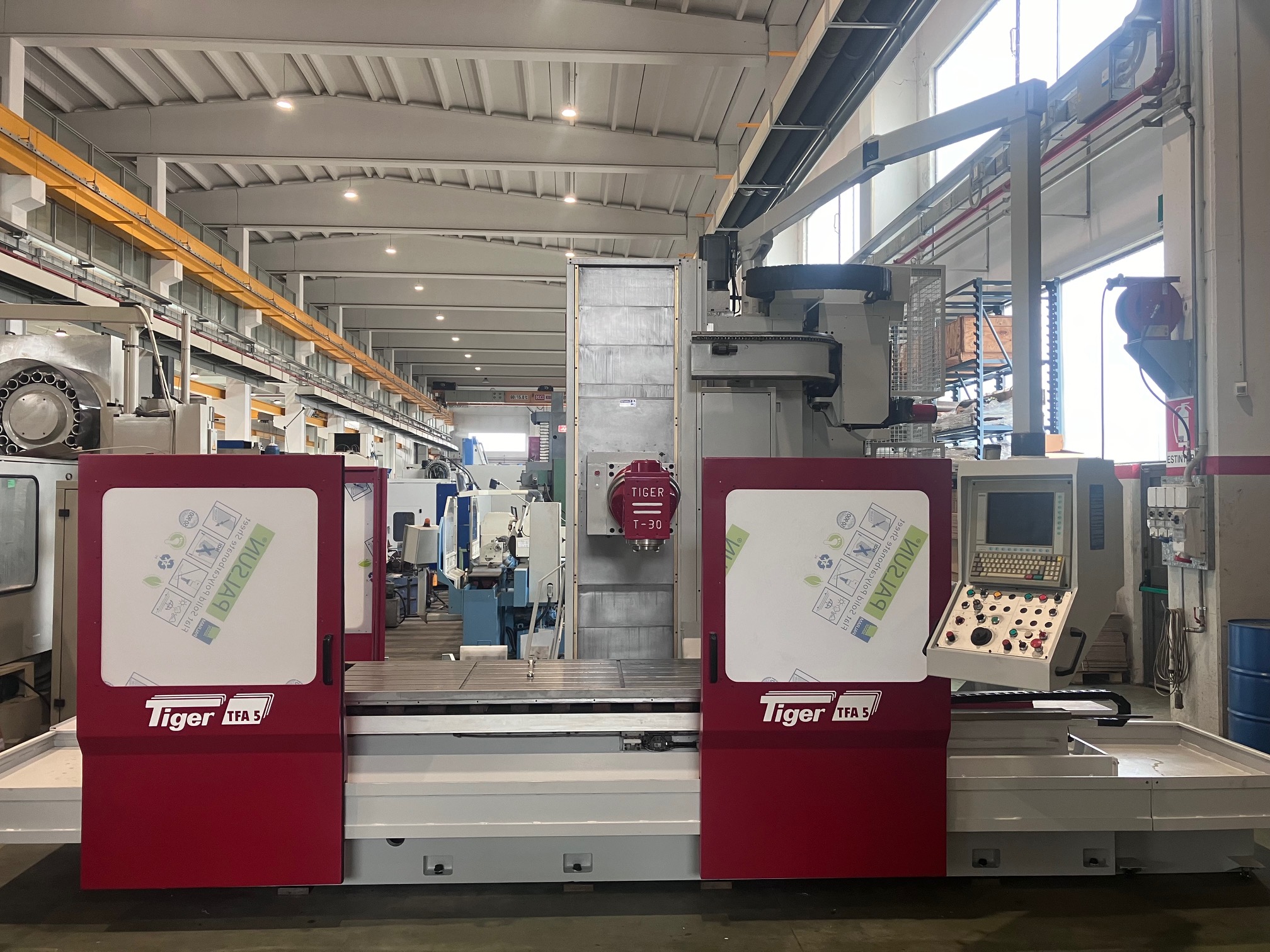

CNC SELCA 3045
TABLE:
Length: 2,800 mm
Width: 800 mm
T-slot dimensions: 18 mm H8
Number of T-shaped quarries: 5
Center-to-center distance of T-slots: 112 mm
WORK CAPACITY:
Longitudinal travel: 2,500 mm
Slider cross travel: 920 mm
Vertical travel: 1,550 mm
PROGRESS
Axis travel: 0–4,000 mm/min
Rapid axis feed rate: 12,000 mm/min
SPINDLE SPECIFICATIONS
Spindle taper: ISO 50
Tool clamping force: 18,000 N
Maximum rotational speed: 3,000 rpm
Speed ranges: 2
ACCESSORIES:
- T-30 ISO 50 Automatic Dual-Spindle Head
- Sidepalsa 40-position tool magazine with the option to change tools in both vertical and horizontal positions
- OMO Spark Swivel Table with a 600 x 600 mm top
Year built: 2000
