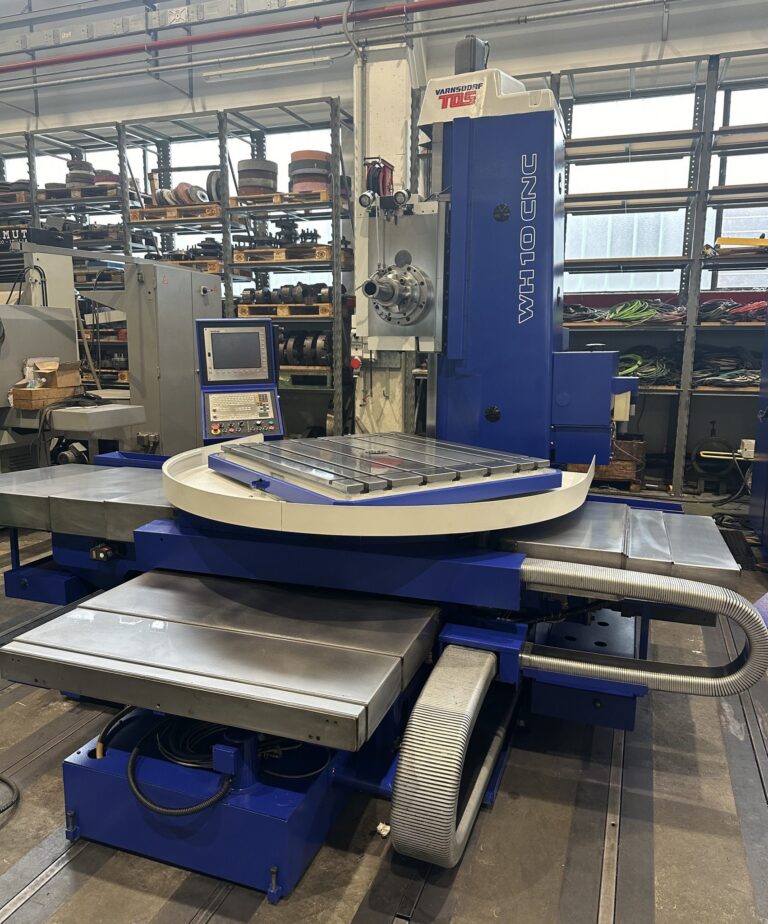

TECHNICAL DATA:

Heidenhain 530 CNC

WORK AREA:

X-axis longitudinal travel: 1 ,250 mm

Y-axis transverse travel: 1 ,100 mm

Z-axis vertical travel: 940 mm

W-axis quill stroke: 630 mm

B-axis rotary table: 0 – 360°

SPINDLE:

Spindle diameter: 100 mm

Spindle attachment cone: ISO 50

Max spindle speed: 2 ,500 rpm

TABLE:

Table dimensions: 1 ,000 x 1,120 mm

Maximum capacity: 3 ,000 kg

ADVANCEMENTS:

X, Y, Z, and W-axis feed rates: 4–1,600 mm/min

Rapid X, Y, Z, W axes: 8,000 mm/min

Rapid B-axis: 720 °/min

Machine weight: 12 ,500 kg

Year of construction: 2014

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
