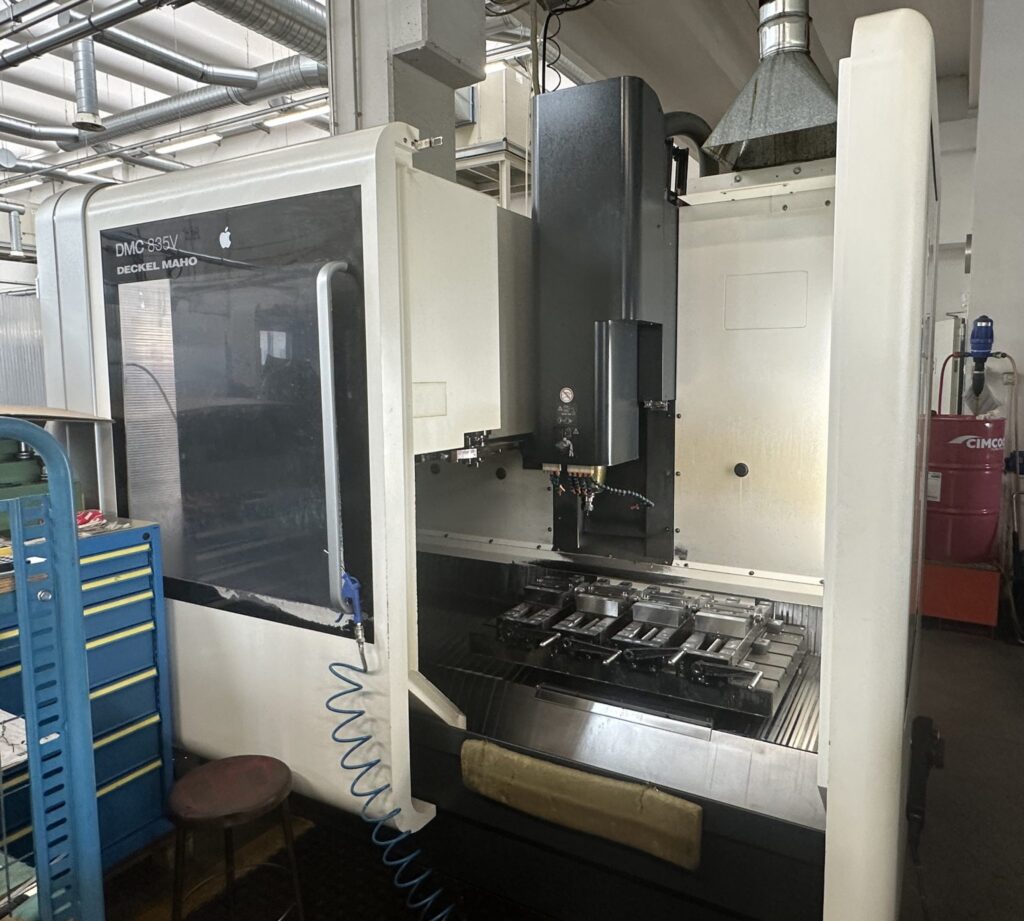

Specifiche tecniche
TECHNICAL DATA:
CNC Heidenhain TNC 530
WORK AREA:
Longitudinal travel X: mm 835
Cross travel Y: mm 510
Vertical travel Z: mm 510
SPIDLE:
Spindle rotation speed: rpm 20 – 10.000
Spindle motor power 40%/100% ED: kW 13/9
Max spindle torque 40%/100% ED: Nm 83/57
Tool attachment cone: SK 40
FEEDS:
Work feeds axes X, Y, Z: mm/min 20.000
Rapids X, Y, Z: m/min 25
TABLE:
Clamping surface: mm 1.000 x 560
Distance of T-slots: mm 100
Number of clamping grooves/size: pieces 4/H12
Max load: kg 800
TOOL CHANGER:
Places: 20
Max tool diameter without free places: mm 80
Max tool diameter with free places: mm 130
Max tool length from the spindle nose: mm 300
Max tool weight: kg 6
Machine complete with:
- Remote electronic handwheel
- Washing gun
- Instruction manuals and CE declaration
- 15 SK 40 cones
Year of construction: 2011
