TECHNICAL SPECIFICATIONS:

Heidenhain 530 CNC

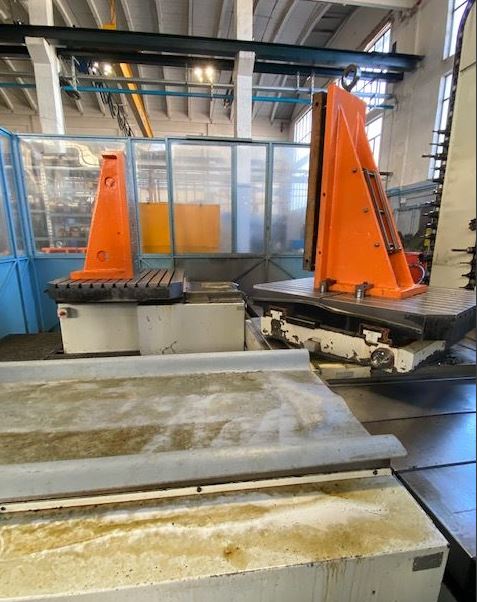

TABLE:

Table dimensions: 1,600 x 1,250 mm

Table rotation: continuous

Load capacity: 6,000 kg

WORK CAPACITY:

X-axis longitudinal travel: 3,000 mm

Y-axis traverse: 1,250 mm

Vertical travel along the Z-axis: 1,600 mm

W-axis slide travel: 650 mm

CHUCK:

Spindle mount: ISO 50

Hub diameter: 130 mm

Rotational speed: 2,000 rpm

Engine power: 22 kW

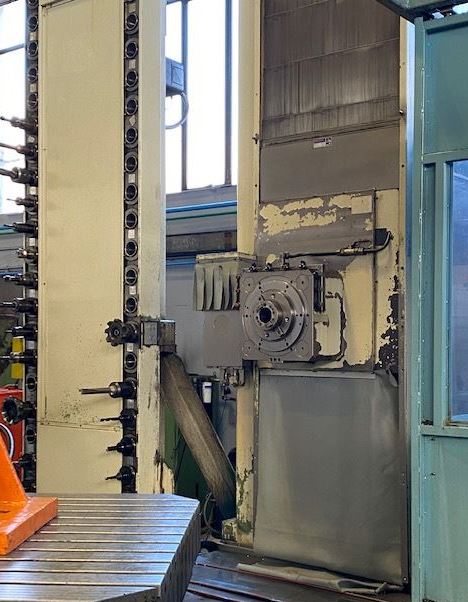

TOOL STORAGE:

Tool holders: No. 60

GENERAL:

Overall dimensions: 7,700 x 5,500 x 4,600 mm

Machine weight: 33,000 kg

Machine comes complete with:
• High-pressure feed through the spindle
• Air blow-through the spindle
• Remote electronic handwheel
• Heidenhain optical scales

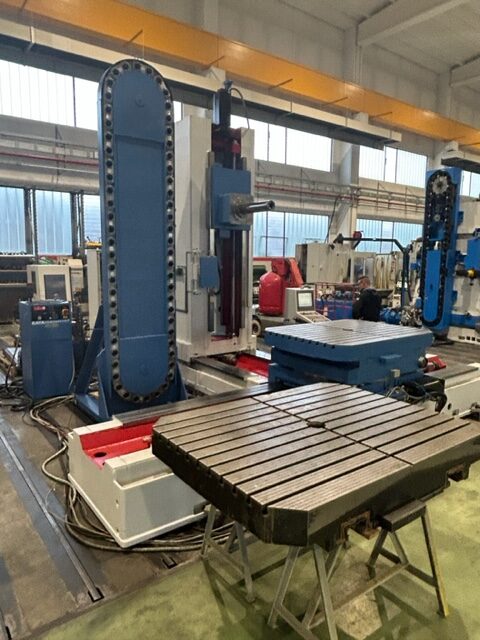

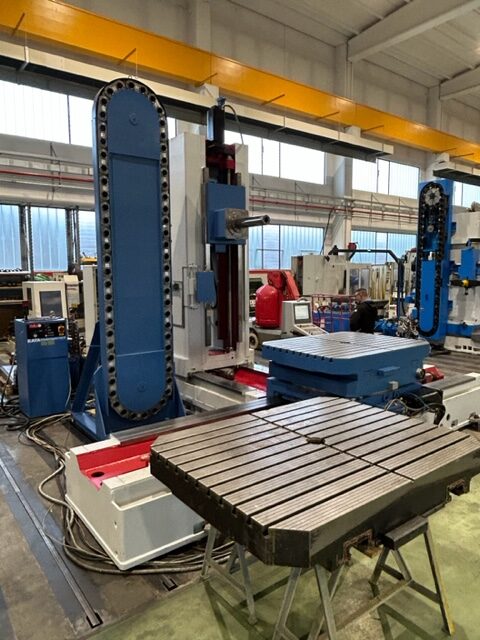

• 2 additional tables for pallet changing
• Instruction manuals

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
