Technical Specifications
TECHNICAL SPECIFICATIONS:

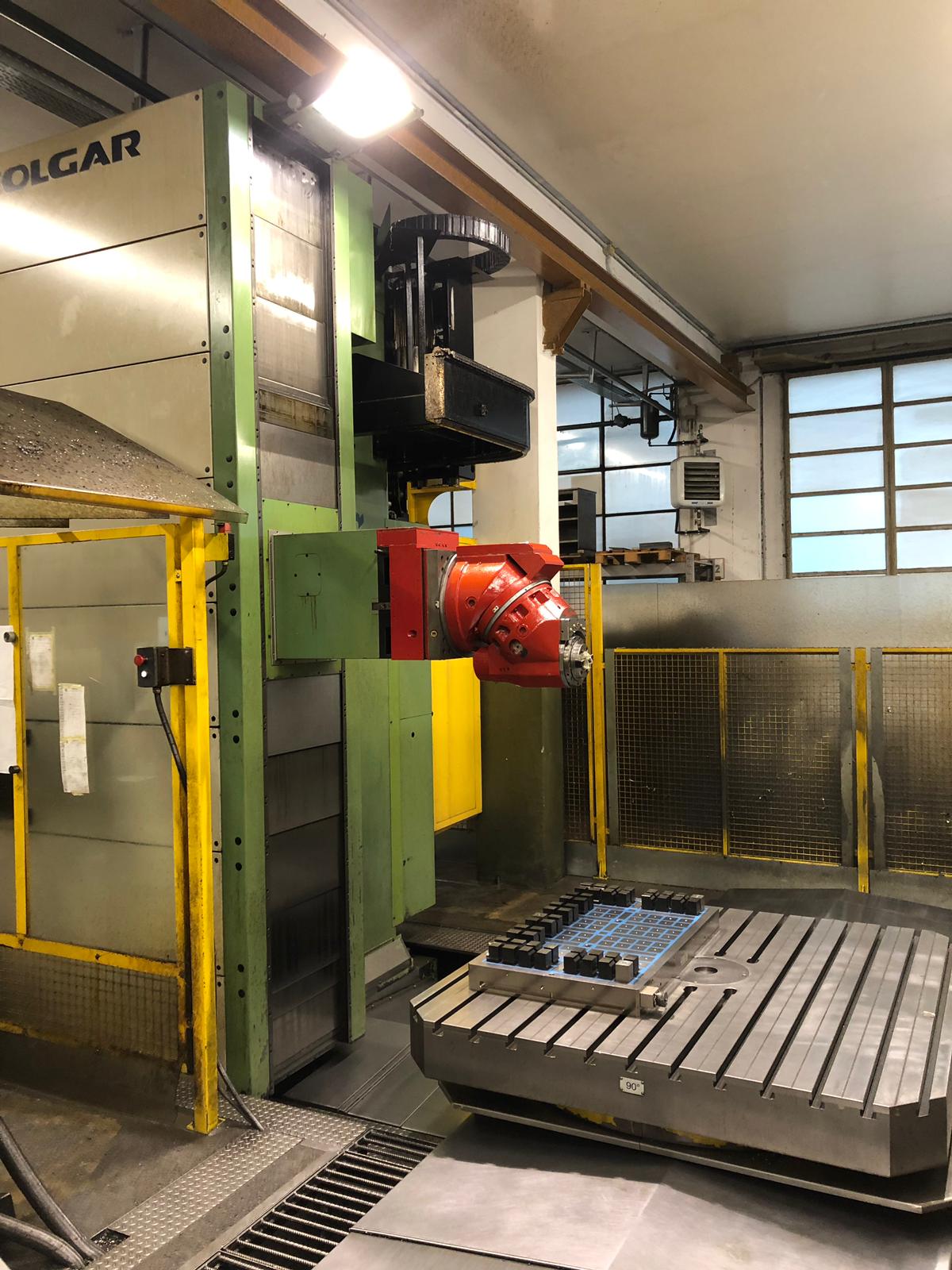

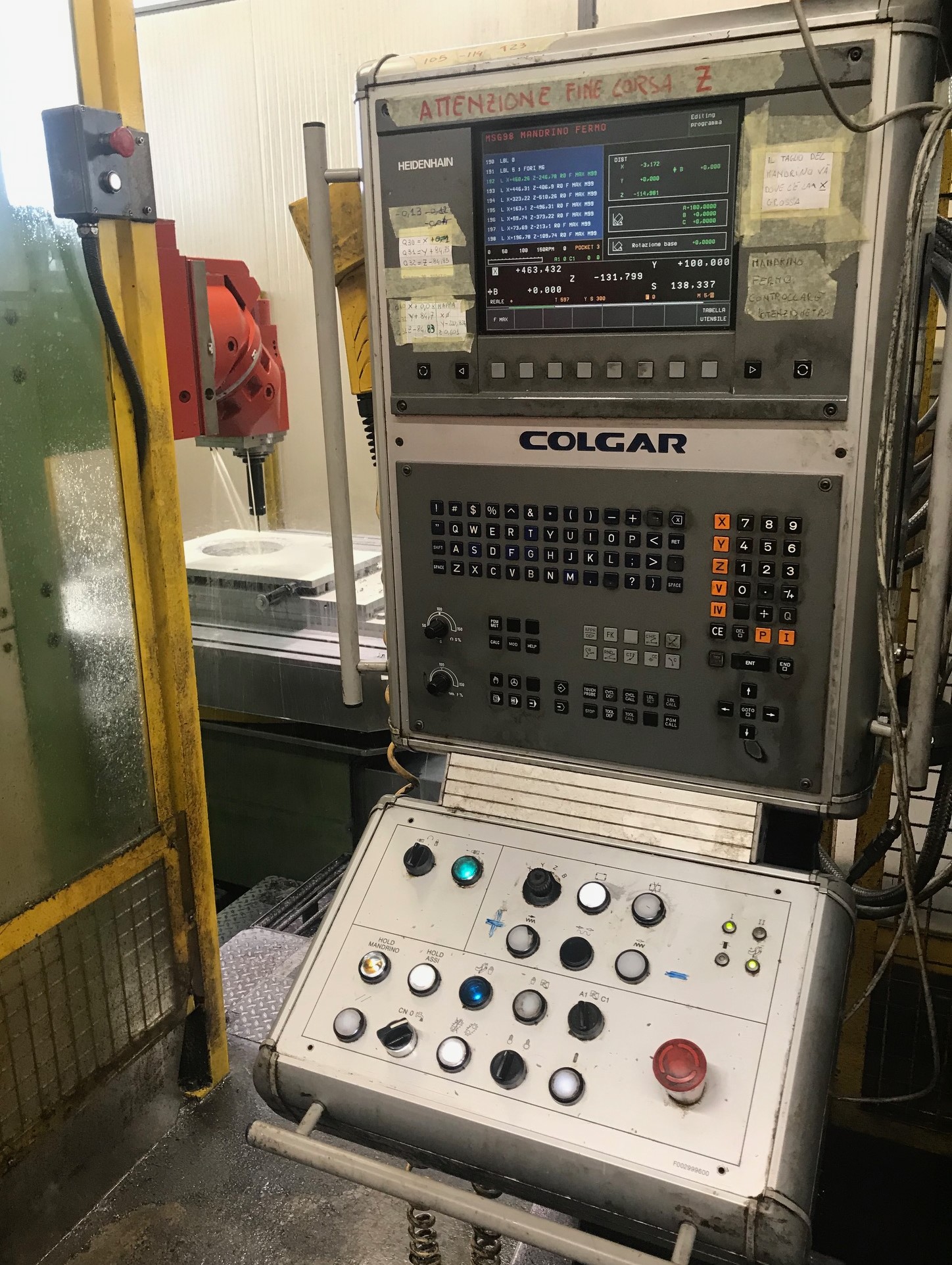

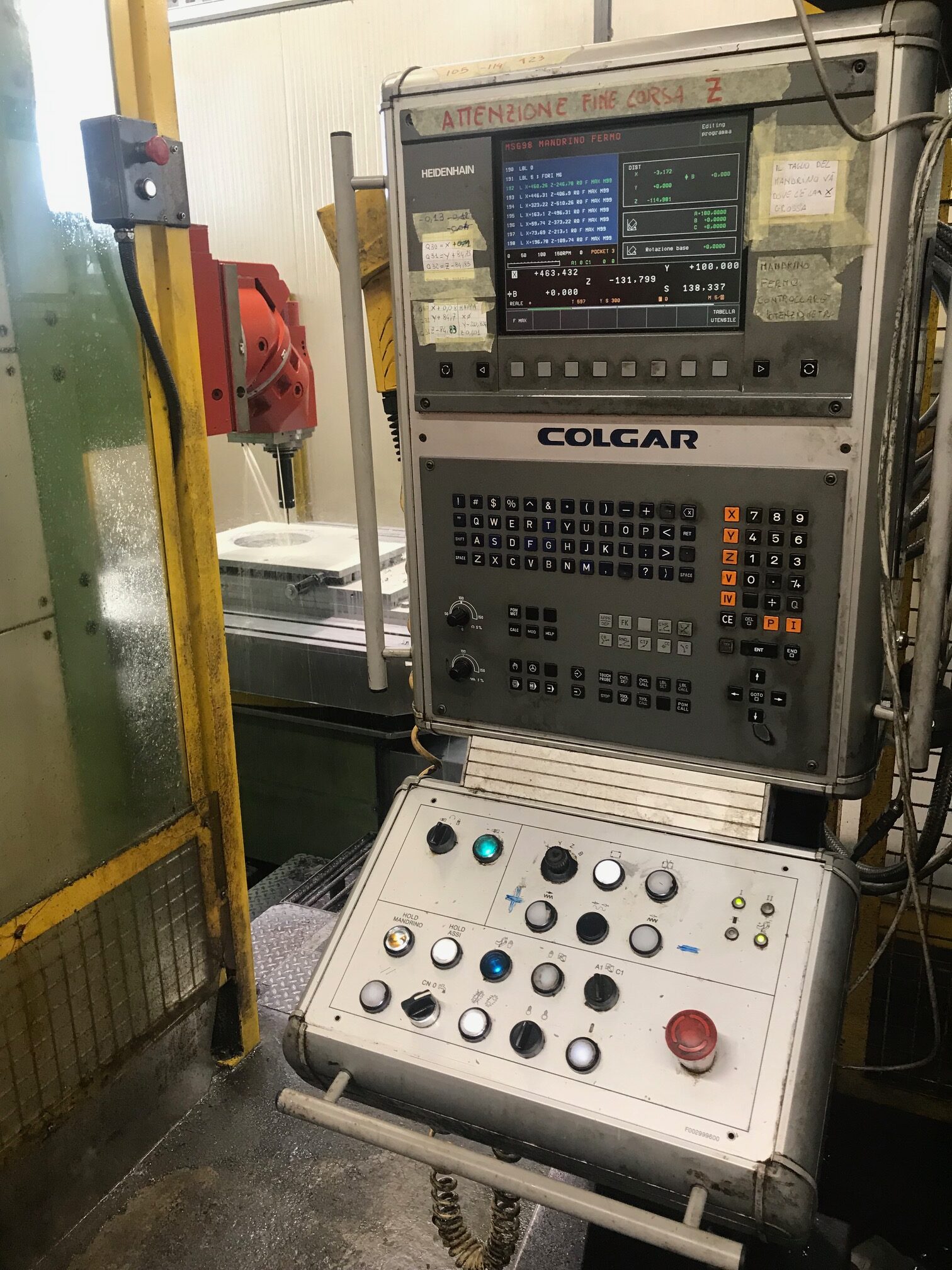

Heidenhain TNC 430 CNC
FIELD OF WORK:
X-axis travel: 3,000 mm
Vertical travel of the Y-axis: 2,000 mm
Transverse travel of the W-column: 1,650 mm
Continuous table rotation: pos . 360,000
Working surface of the table: 1,600 x 1,600 mm
Maximum load capacity of the table: 8,000 kg
CHUCK HEAD:
Slide section: 410 x 505 mm
Spindle taper: ISO 50
Continuously variable spindle speed: 4 to 3,000 rpm
- At constant torque: 4–185 rpm
- At constant power: 185–3,000 rpm
Maximum torque at operating speed: 2,400 Nm
PROGRESS:
Continuous operating speed: 0–5,000 mm/min
B-axis rotation: rpm : 0.002 to 2
Rapid feed rates for X, Y, and Z axes: 15,000 mm/min
B-axis feed rate: rpm : 0.002 to 2
Torque: 20,000 Nm
TOOL STORAGE:
Number of positions: 40
Maximum tool length: 300 mm
Maximum tool diameter: 250 mm
ENGINE POWER:
Spindle motor for continuous operation (S1-100%) AC: 37 kW
Spindle motor in S2 duty cycle (30 min), AC: 52 kW
Axis drive motors (each): 50 Nm
Auxiliary engines: 4.5 kW
Table linear drive motor: 15 Nm
Table circular feed motor: 15 Nm
Approximate net weight: 33,500 kg
Machine comes complete with:
- High pressure through the spindle, tank with paper filter
- Hydrostatic-supported guides on all axes and the table
- Siemens 611 Drives and Motors
- Heidenhain Measurement Systems
- Automatic 2.5° Indexed Dual-Rotation Head, Model TOV 110

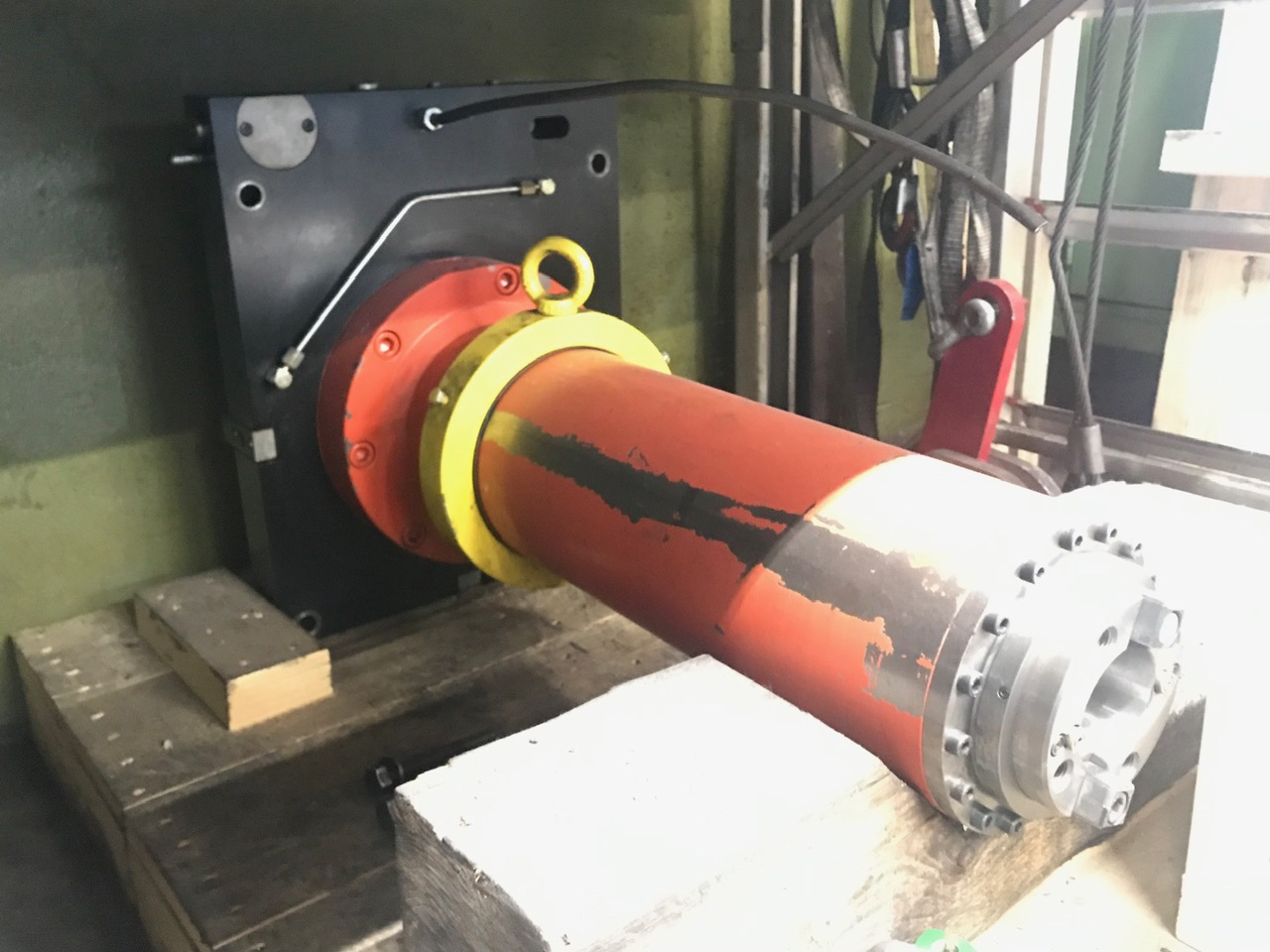

- Extended Spindle Mount, Length 600 mm, Model MAPA 750
- Chip Conveyor
- Remote-Controlled Electronic Flapper
- Instruction Manuals and EC Declaration
Year built: 2002
