Technical Specifications
TECHNICAL SPECIFICATIONS:
Fanuc 16 i CNC – M13
WORK AREA:
Longitudinal stroke X: 700 + 530 mm
Y-axis vertical travel: 700 mm
Z-axis travel: 800 mm
ELECTRIC SPINDLE:
Spindle mounting cone: HSK – A100
Max. spindle speed: 12,000 rpm
Maximum power: 22 kW
Max torque: 420 Nm
PALLET:
Pallet dimensions: 630 x 630 mm
Maximum load capacity per pallet: 550 kg

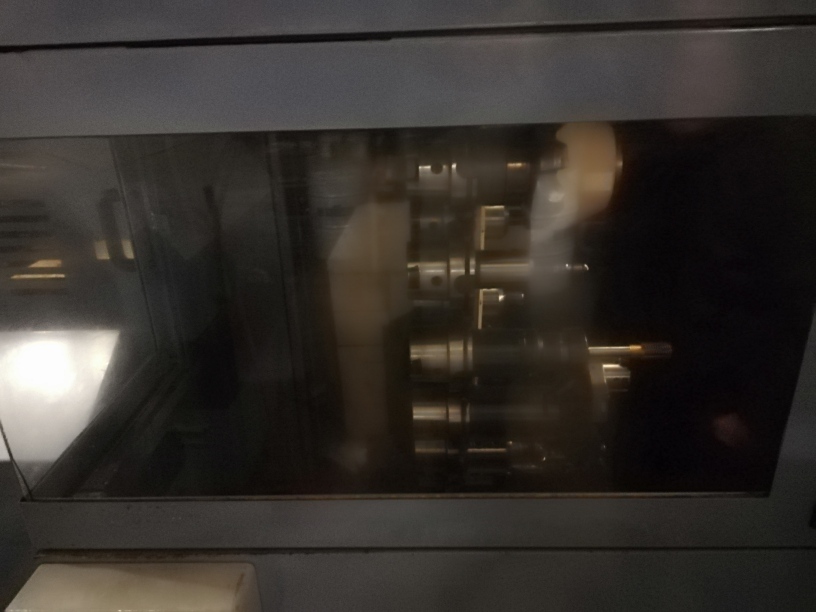

TOOL STORAGE:
Tool Holder: HSK – A100
Warehouse spaces: 48
Machine comes complete with:
- 4-position pallet changer
- 4 pallets
- 20 HSK tool holders – A100
- High pressure through the spindle, tank with paper filter
- Chip Conveyor
- Instruction Manuals and EC Declaration
Year built: 2006
