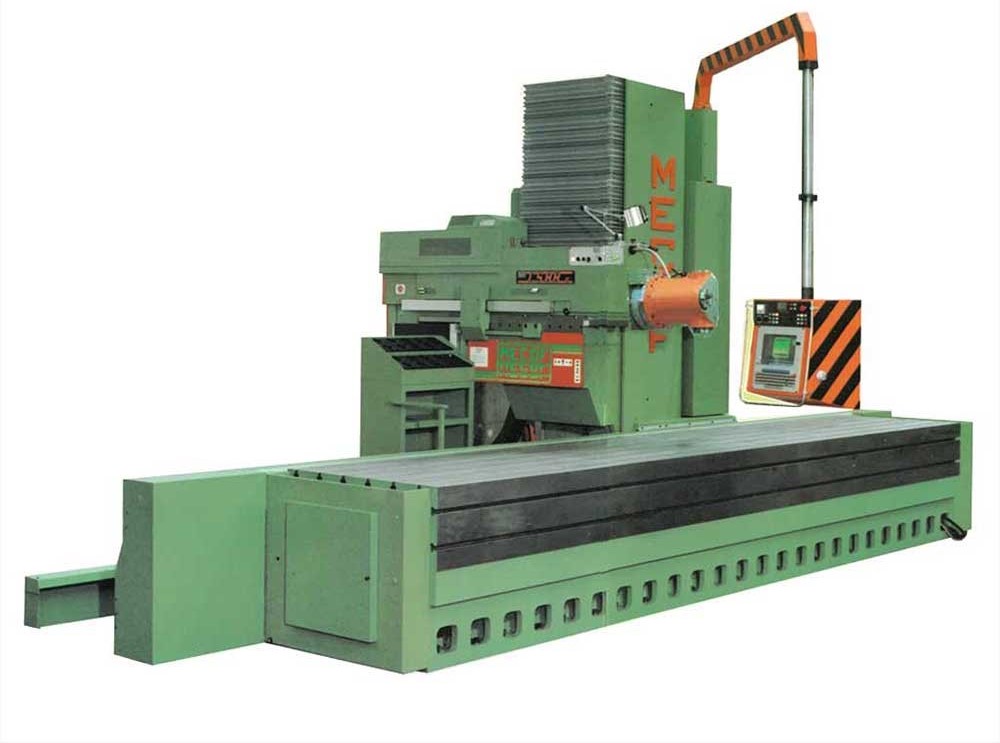

TECHNICAL SPECIFICATIONS:

CNC: Selca 1200
X-axis travel: 5,300 mm
Vertical travel along the Z-axis: 1,700 mm
Y-axis slide travel: 1,000 mm
Table dimensions: 7,000 x 1,060 mm
Spindle speed: 2,000 rpm
Spindle taper: ISO50
Max. installed power: 66 kW

Included accessories:
• ISO 50 bi-rotary head indexed by 1° on the rear mount
• Horizontal/vertical twin-spindle head
• 2 cubes
• Spindle assembly

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
