TECHNICAL SPECIFICATIONS:

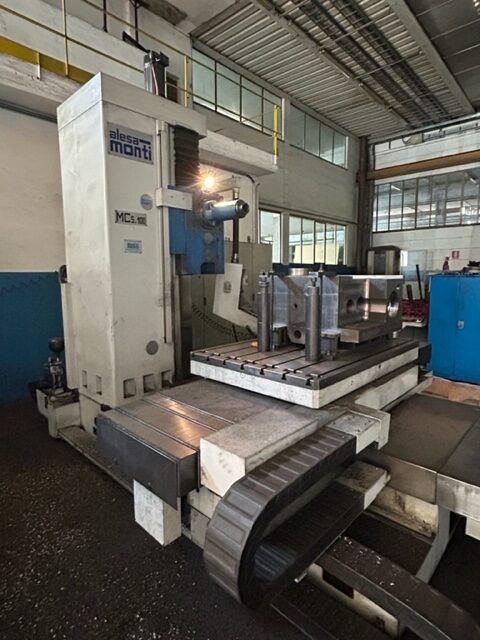

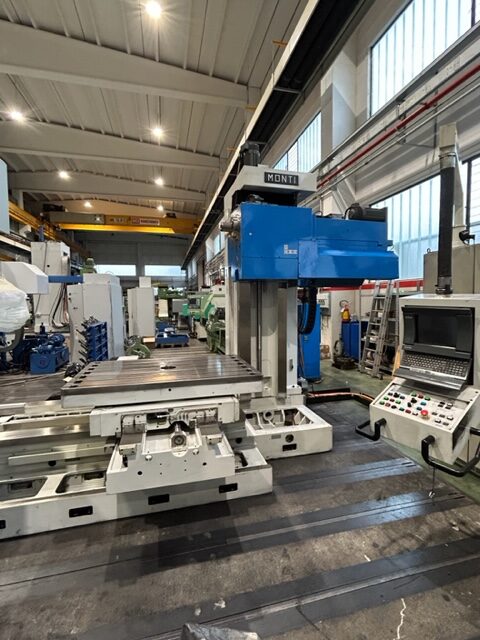

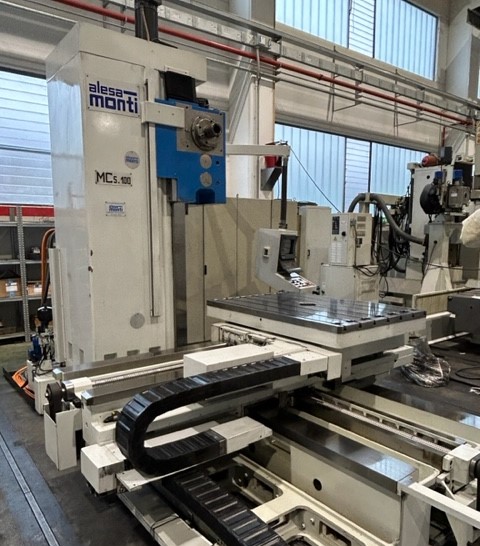

MACHINE FULLY OVERHAULED BY MONTI S.P.A.
IN 2014:
- COMPLETE MECHANICAL OVERHAUL;
- INSTALLATION OF NEW HEIDENHAIN OPTICAL SCALES ON THE 3 AXES, NEW HEIDENHAIN ROD TABLE CENTER ENCODER;
- COMPLETE REFURBISHMENT OF THE MACHINE EDGE;
- NEW ELECTRICAL PANEL WITH NEW DRIVES;
- ENGINE OVERHAUL.

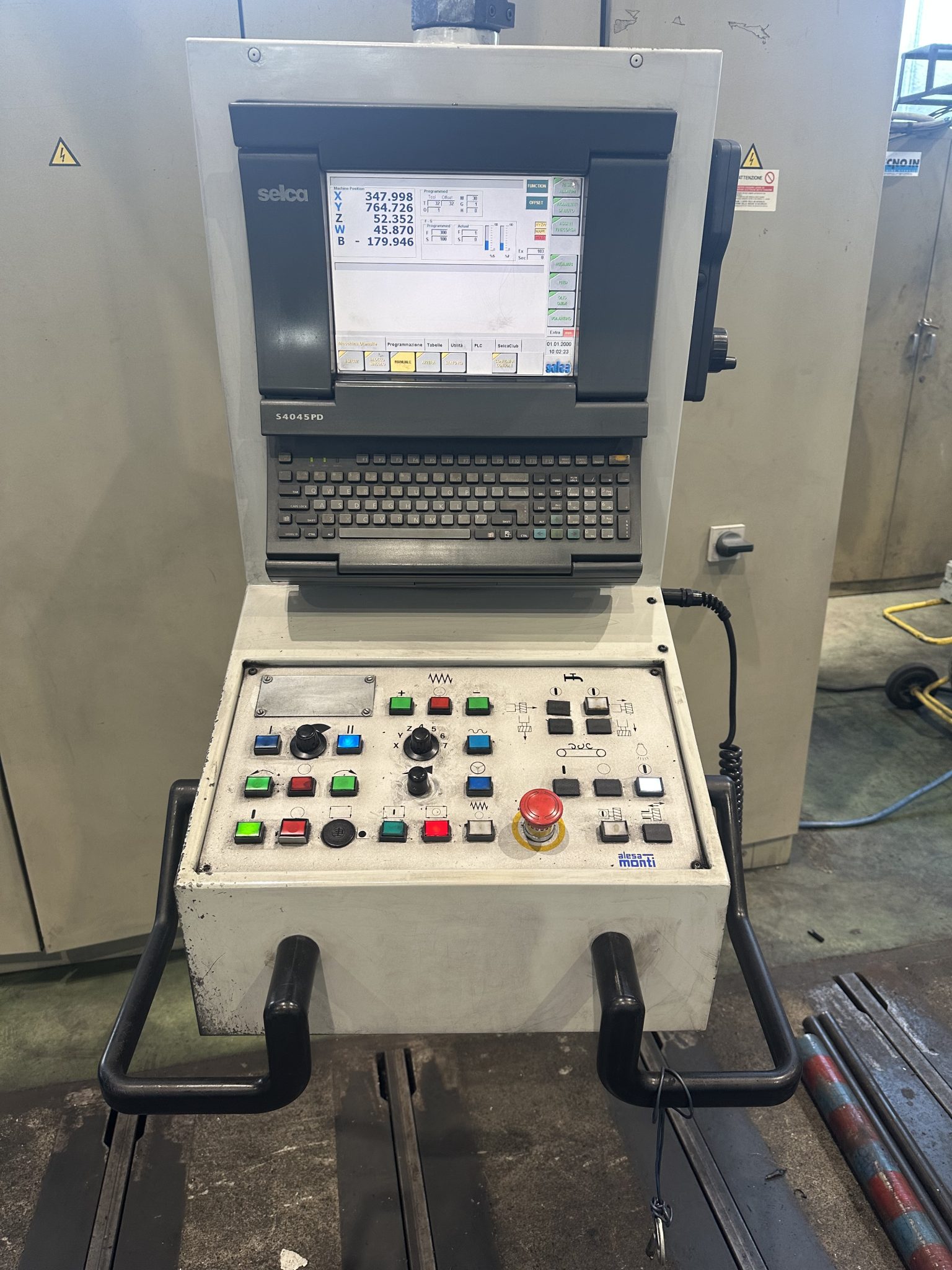

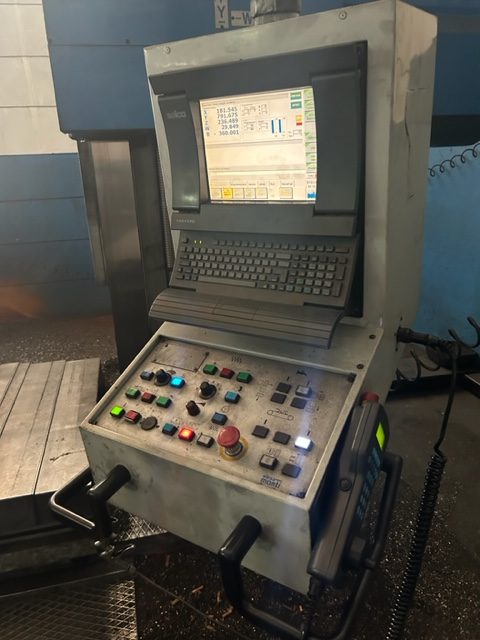

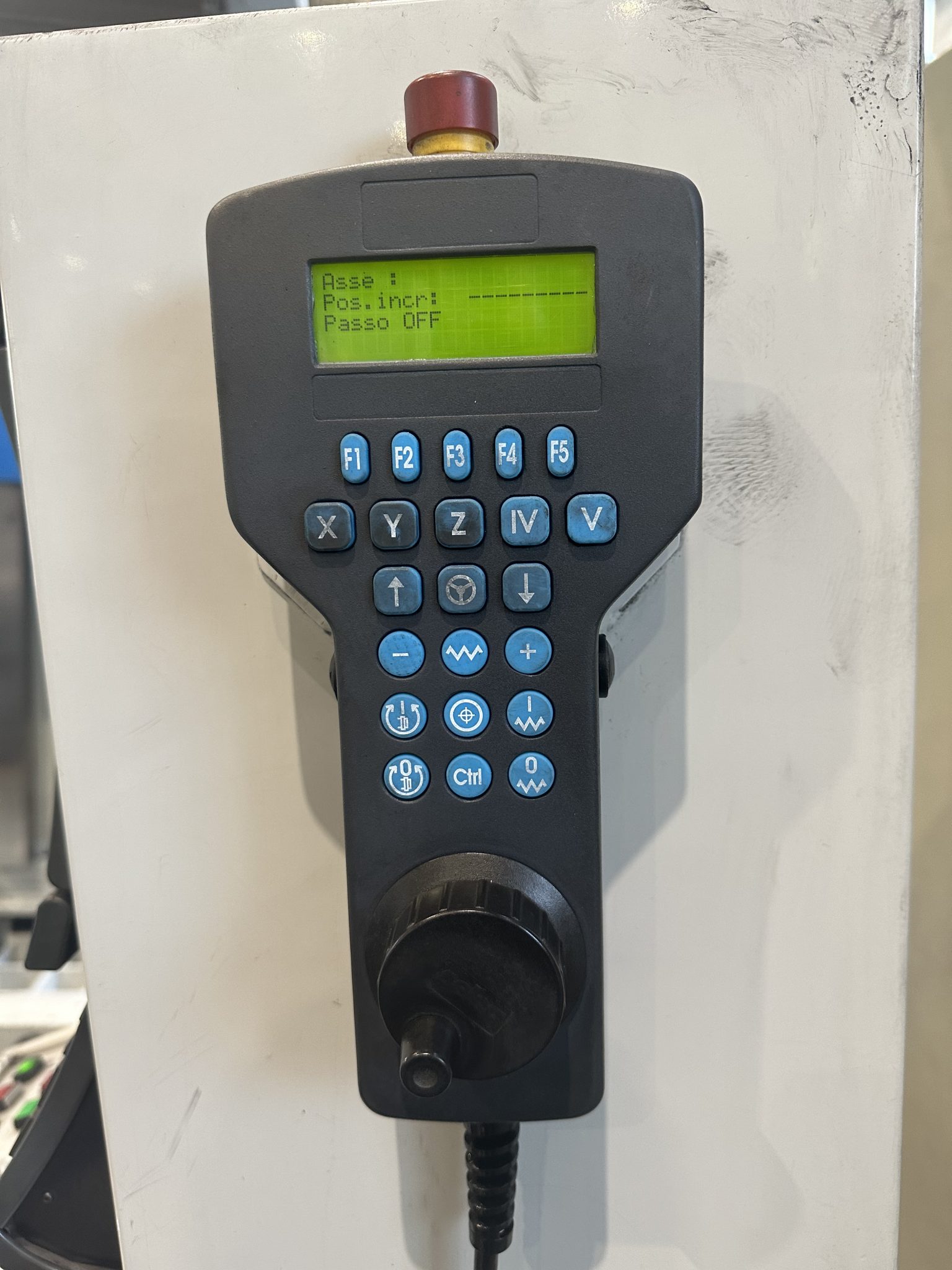

CNC Selca 4045 PD
CHUCK:
Spindle bore diameter: 100 mm
Spindle taper: ISO 50
Rotational speed: 12–1,300 rpm
PROGRESS:
Feed rates for the X, Y, Z, and W axes: mm/min 2 to 1,000
Rapid feed rates for X, Y, Z, and W axes: 6,000 mm/min
Automatic table rotation: 1/4 rpm
Automatic rapid rotation of the table: 1.5 rpm
RACES:
Hub-to-hub distance (W-axis): 700 mm
Table width (Z-axis): 1,500 mm
Table length (X-axis): 1,900 mm
Vertical head (Y-axis): 1,450 mm

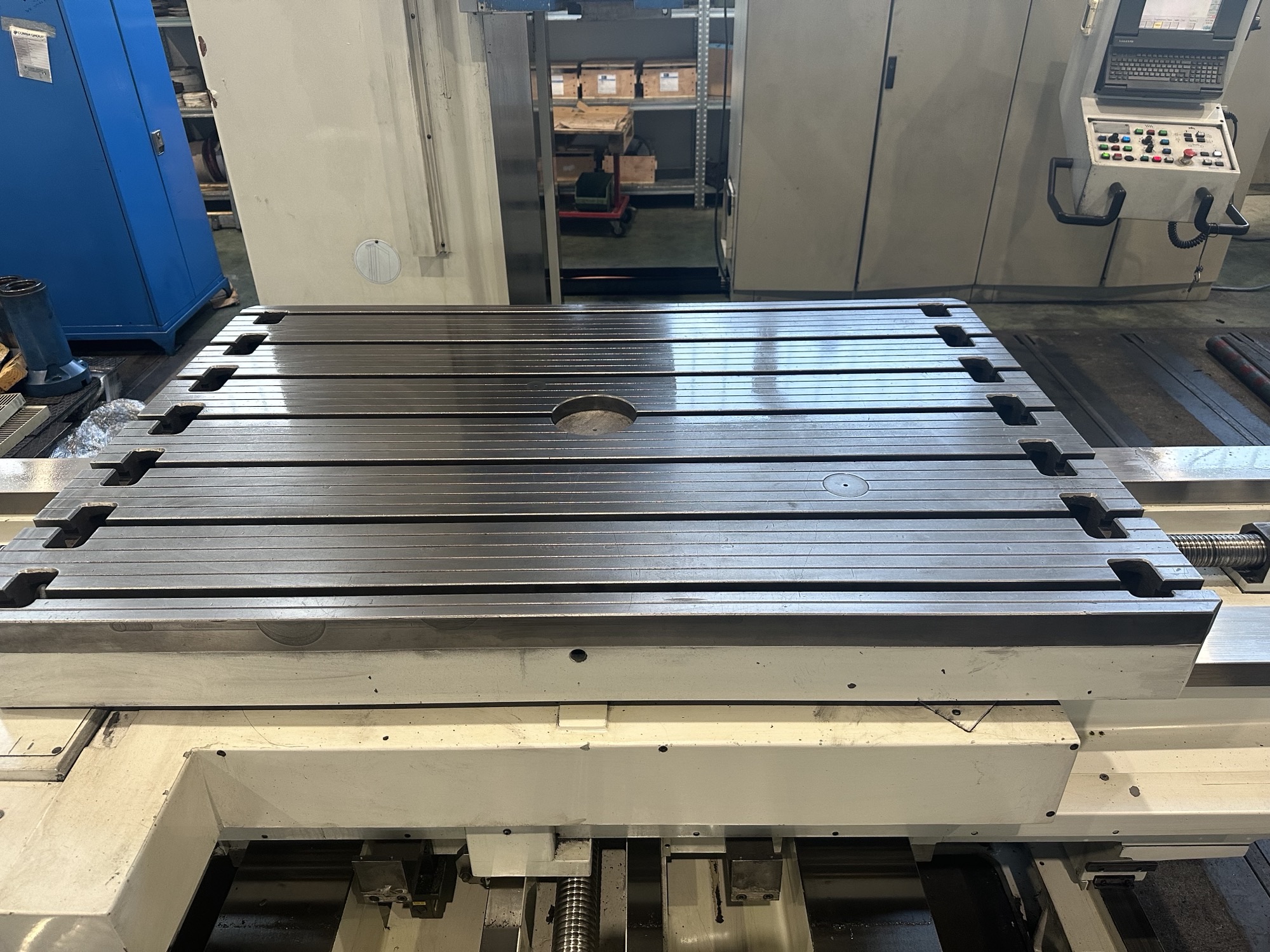

TABLE:
Worktop dimensions: 1,500 x 1,000 mm
No. 7 T-slots: 18 mm
Distance between the T-slots: 180 mm
Maximum load on the table: 4,000 kg
INSTALLED CAPACITY:
Spindle motor power: 15 H .P.
Motor power per axis: 3.5 H .P.
Machine weight: 13,000 kg
Machine comes complete with:
– Dual-rotating head with hydraulic locking, working width 950 mm;
– Spindle lock;
– Cabinet containing various spindles and tools.
