Technical Specifications
TECHNICAL DATA:

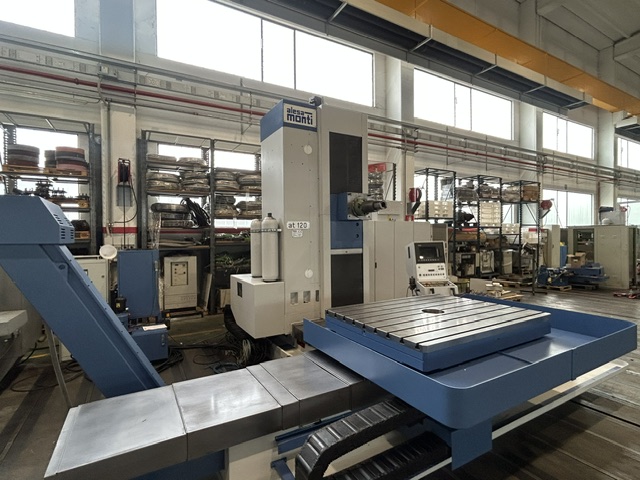

MACHINE COMPLETELY OVERHAULED BY MONTI S.P.A.
IN THE YEAR 2014:
COMPLETE MECHANICAL OVERHAUL;
INSTALLATION OF A NEW HEIDENHAIN OPTICAL SCALE ON THE 3 AXES AND A NEW HEIDENHAIN ROD CENTER TABLE ENCODER;
COMPLETE REFURBISHMENT OF THE MACHINE EDGE;
NEW ELECTRICAL PANEL WITH NEW DRIVES;
ENGINE OVERHAUL.
CNC Selca 4045 PD
SPINDLE:
Spindle quill diameter: 100 mm
Spindle taper: ISO 50
Rotation speed: 12–1,300 rpm
ADVANCEMENTS:
X, Y, Z, W-axis feed rates: mm/min 2 to 1,000
Rapid X, Y, Z, W axes: 6,000 mm/min
Automatic table rotation: 1/4 rpm
Automatic rapid table rotation: 1.5 rpm
TRAVELS
Travel of the sleeve (W axis): 700 mm
Transverse table (Z-axis): 1,500 mm
Longitudinal table (X-axis): 1,900 mm
Vertical head (Y-axis): 1,450 mm
TABLE:
Worktop size: 1,500 x 1,000 mm
No. 7 T-slots: 18 mm
Distance between T-slots: 180 mm
Maximum load capacity of the table: 4,000 kg
INSTALLED POWER:
Spindle motor power: 15 H.P.
Motor power for each axis: 3.5 H.P.
Machine weight: 13,000 kg
Machine complete with:
– Bi-rotating head with hydraulic locking, length 950 mm;
– Spindle hardener;
– Cabinet with various spindles and tools.
