TECHNICAL SPECIFICATIONS:

Spindle axial travel (Z-axis): 500 mm
Vertical travel (Y-axis): 1,500 mm
Table dimensions: 1250 x 1500 mm
Transverse travel (X-axis): 2,000 mm
Longitudinal travel (W-axis): 1,500 mm
Boring spindle diameter: 110 mm
Mounting cone: ISO 50
Milling spindle diameter: 160 mm
Spindle speed: 0–3,000 rpm
Rapid rotation of the turntable, rpm: 6
Maximum load: 4,000 kg
Rapid feed rate: 8,000 mm/min
Approximate machine weight: 16,000 kg

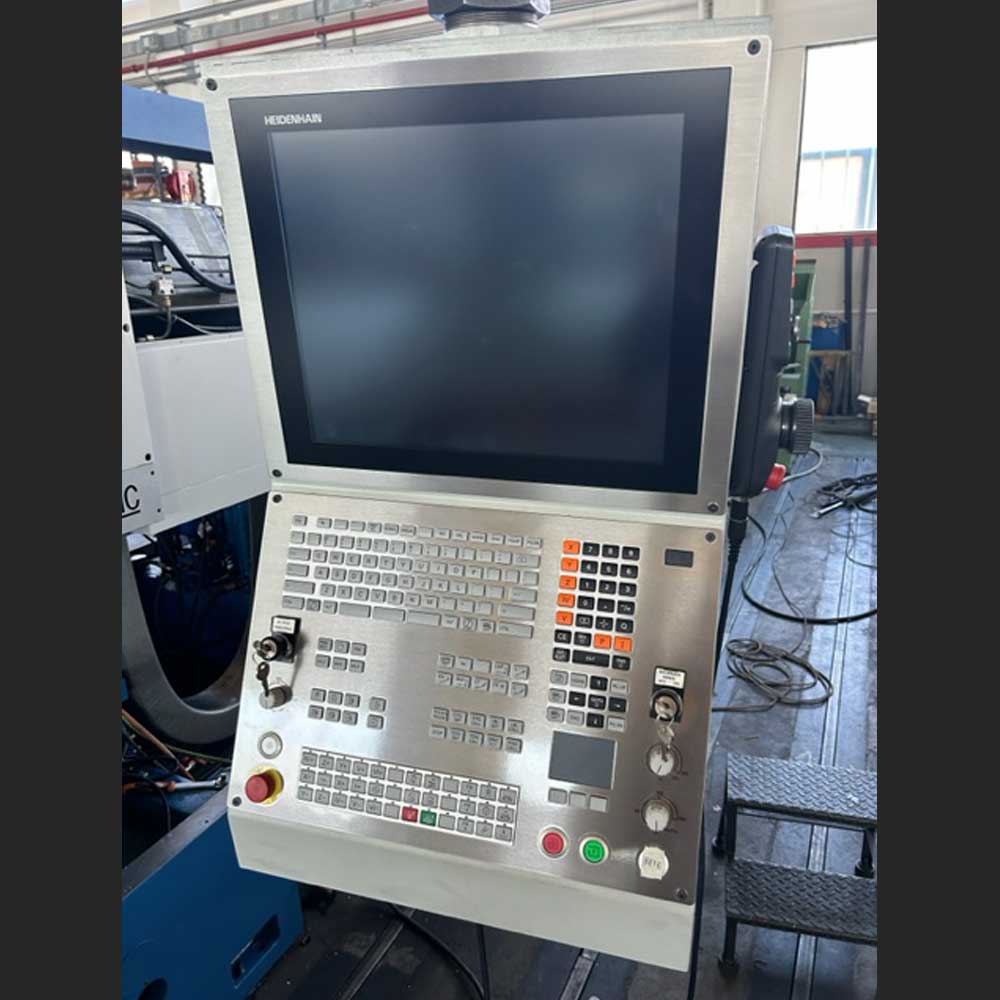

Heidenhain TNC 640 CNC
Year: Built in 2001, retrofitted in 2023

Machine equipped with:
Heidenhain optical scales
Siemens digital drives
Internal spindle cooling

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
