Technical Specifications
TECHNICAL SPECIFICATIONS:

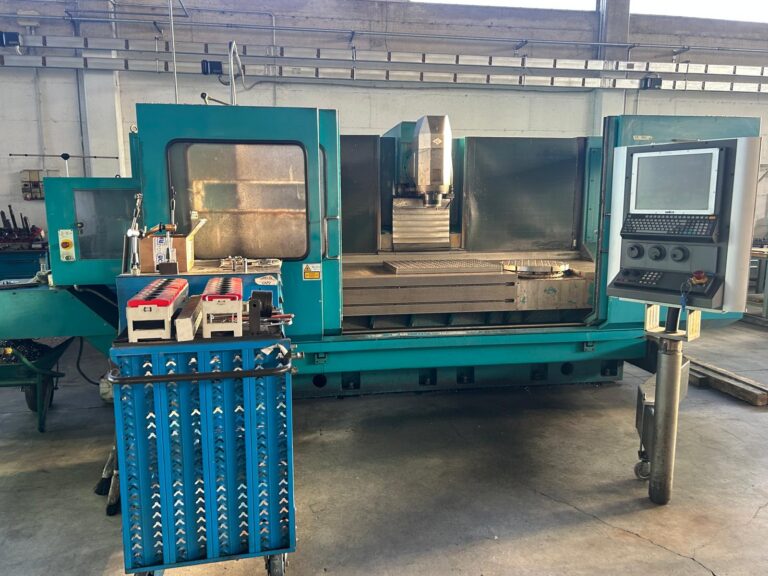

CNC SELCA 3045
RACES:
X-axis longitudinal travel: 2,500 mm
Y-axis traverse: 1,200 mm
Z-axis traverse: 1,200 mm
TABLE:
Dimensions: 2,700 x 900 mm
T 22H7 slots: 7
Maximum load capacity: 10,000 kg
KOSMO 4000 AUTOMATIC DUAL-ROTATION HEAD:
Continuous power: 24 kW
KOSMO head spindle speed: 4,000 rpm
Tool shank: DIN 69871-A50
Tie rod: DIN 69872-28 (50)
(DIGITAL) AXES:
Rated continuous torque (X-axis = 3,500): 70 Nm
Rated continuous torque (Y-axis): 70 Nm
Rated continuous torque (Z-axis): 27 Nm
Rapid feed rate (X, Y, Z axes): 18 m/min
TOOL STORAGE:
Tool stations: 20
Maximum tool diameter: 120 mm
Maximum tool diameter with adjacent positions free: 200 mm
Max. tool length: 400 mm
Max. tool weight: 20 kg
GENERAL:
Maximum machine weight: 19,800 kg
Maximum installed power: 48 kW
Machine comes complete with:
- KOSMO 4000 universal dual-rotation indexed head with oil lubrication
Positions on the rear plane: 144 (2.5° pitch)
Positions on the front plane: 120 (3° pitch) - 03 Electronic handwheels for the X, Y, and Z axes mounted on the overhead unit
- Electronic device for compensating for thermal expansion of the head
- Belt-type chip conveyor with a tank and a coolant pump
- Instruction Manuals and EC Declaration
Year built: 1999
