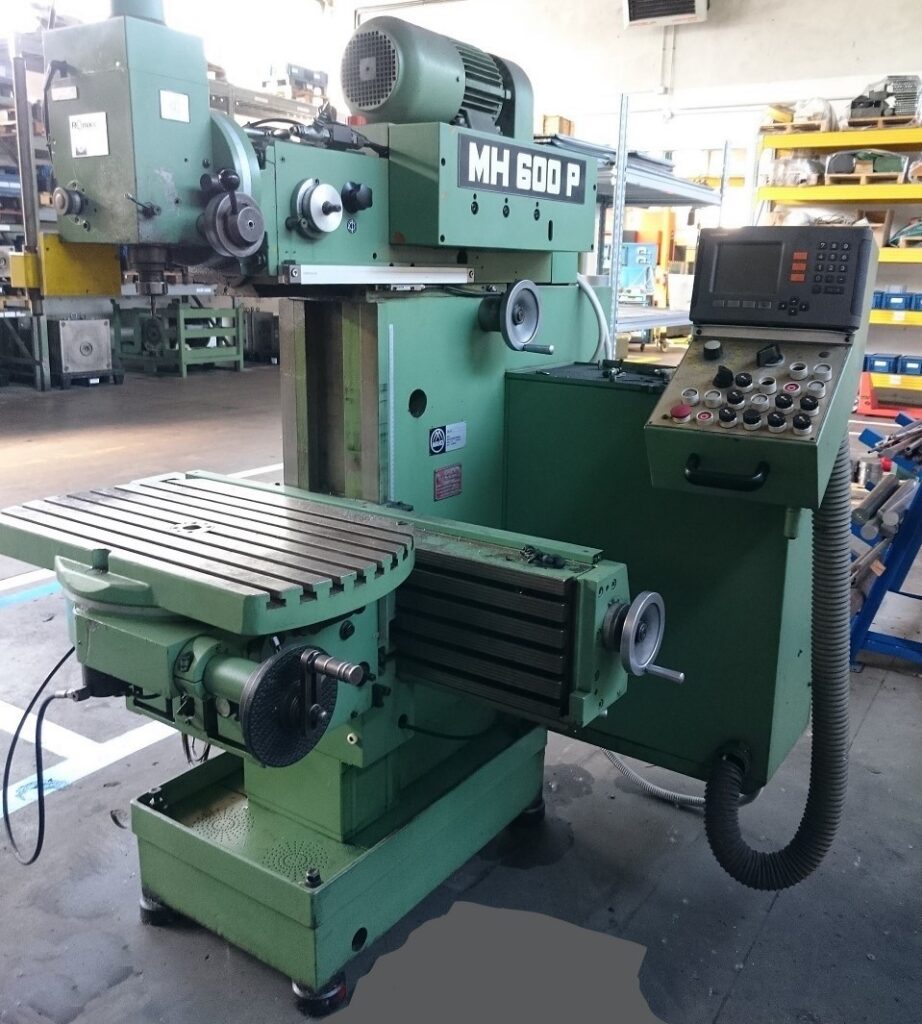

Technical Specifications
TECHNICAL SPECIFICATIONS:
Includes:
• Manual rotary-translational table with hydraulic locks

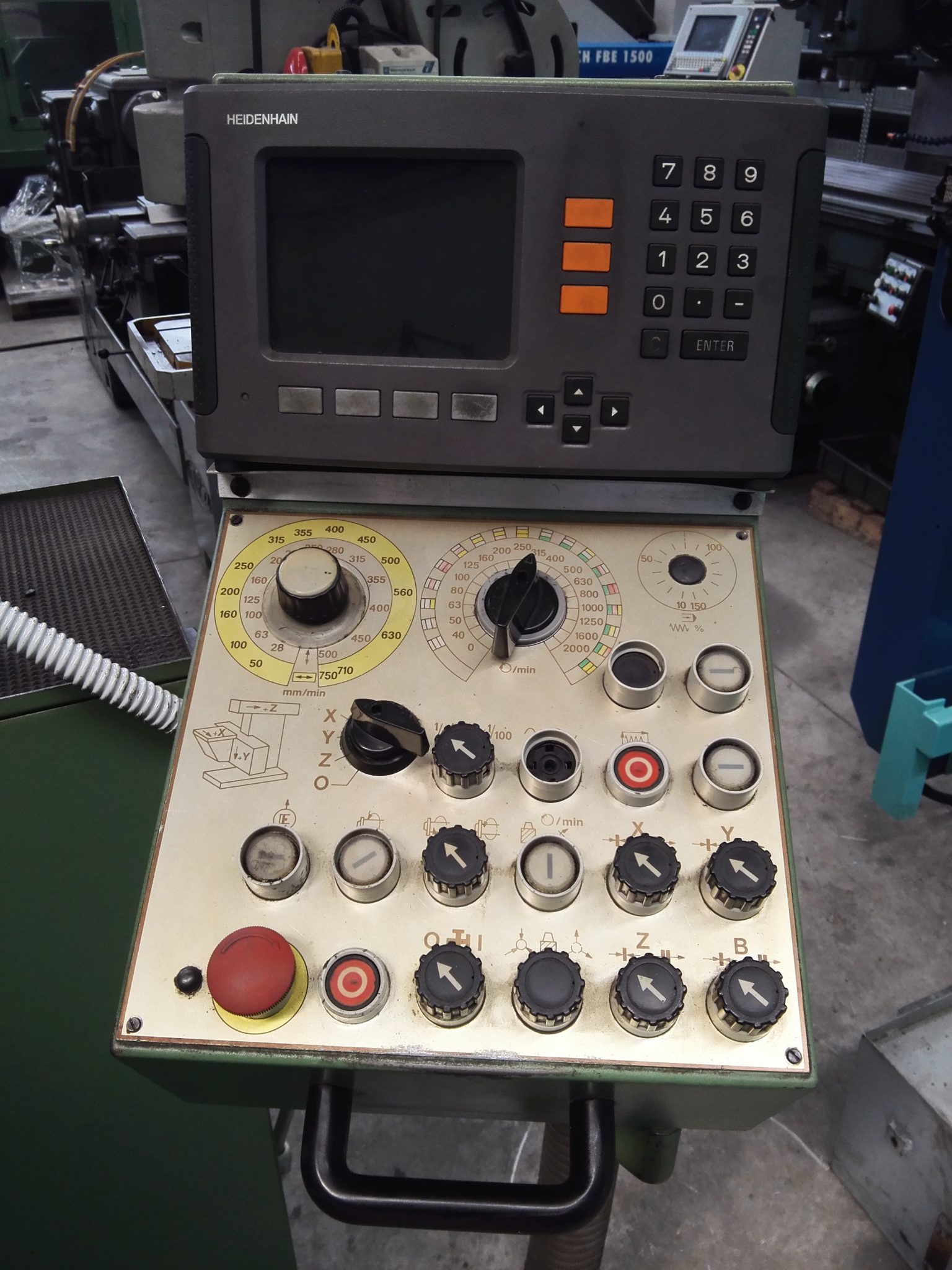

• Heidenhain Coordinate Display
• Variable-speed drive for adjusting spindle speed
• Tiltable vertical head with sleeve (stroke: 80 mm)
• Horizontal spindle with ISO 40 taper (stroke: 80 mm)
WORKING RANGE
Cross-slide travel:
– In the horizontal longitudinal axis (X-axis): 500 mm
– In the vertical axis (Y-axis): 400 mm
Spindle head travel:
– In the horizontal transverse axis (Z-axis): 400 mm
WORKING AREA
Vertical clamping table:
– Clamping surface: 250×1030 mm
– Number of H7 T-slots: 14
– Distance between T-slots: 45 mm
WORKING SPINDLES:
– Tool holder: ISO40
– Horizontal and vertical working spindle quill stroke: 80 mm
SPEEDS AND FEEDS:
– Work spindle speed: rpm 40–2000
Feeds:
– On the X and Z axes: mm/min 1–750
– On the Y-axis: mm/min 1–500
Rapid traverse:
– On the X and Z axes: m/min 1.2
– On the Y-axis: m/min 0.8
Reduction of feed rates and rapid traverse:
– On the X, Y, and Z axes: 1:100

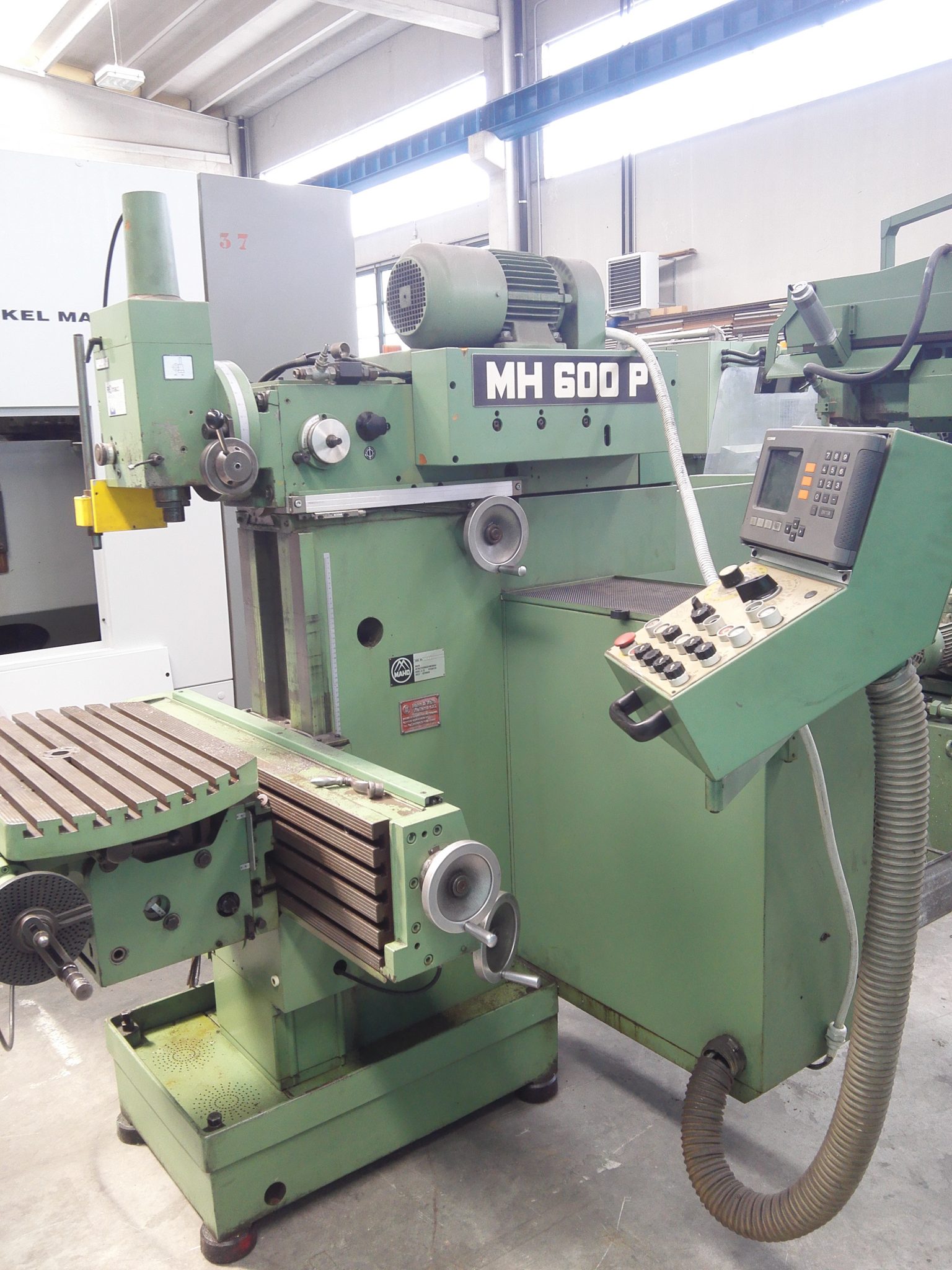

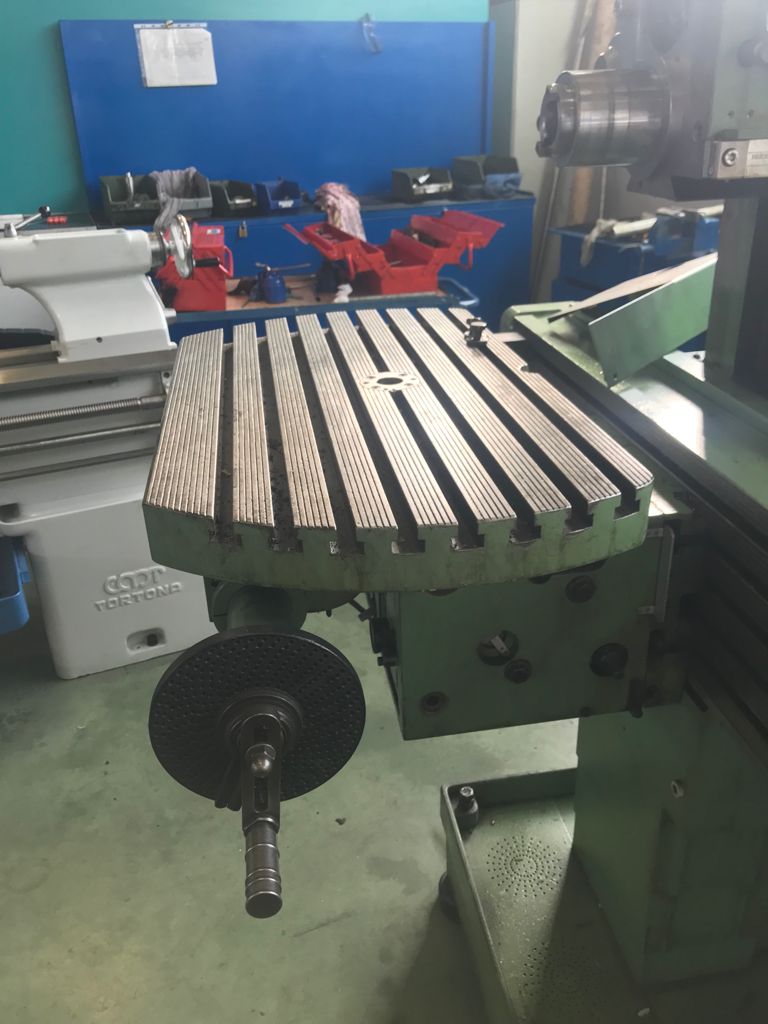

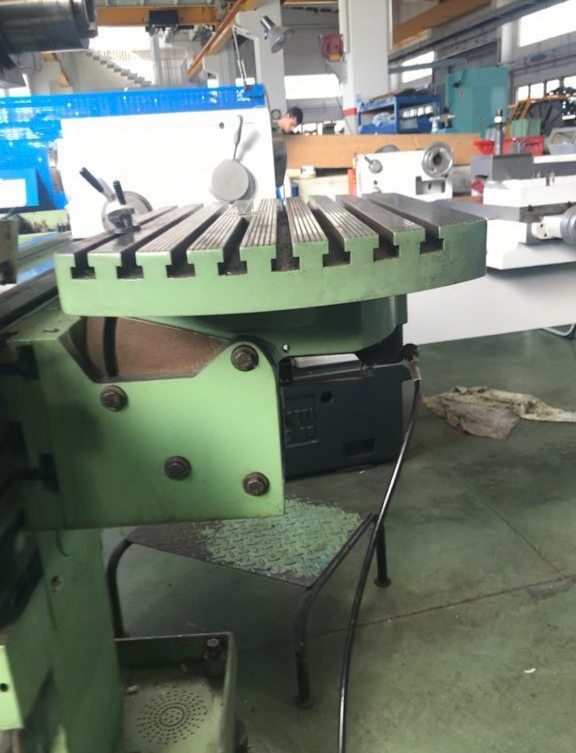

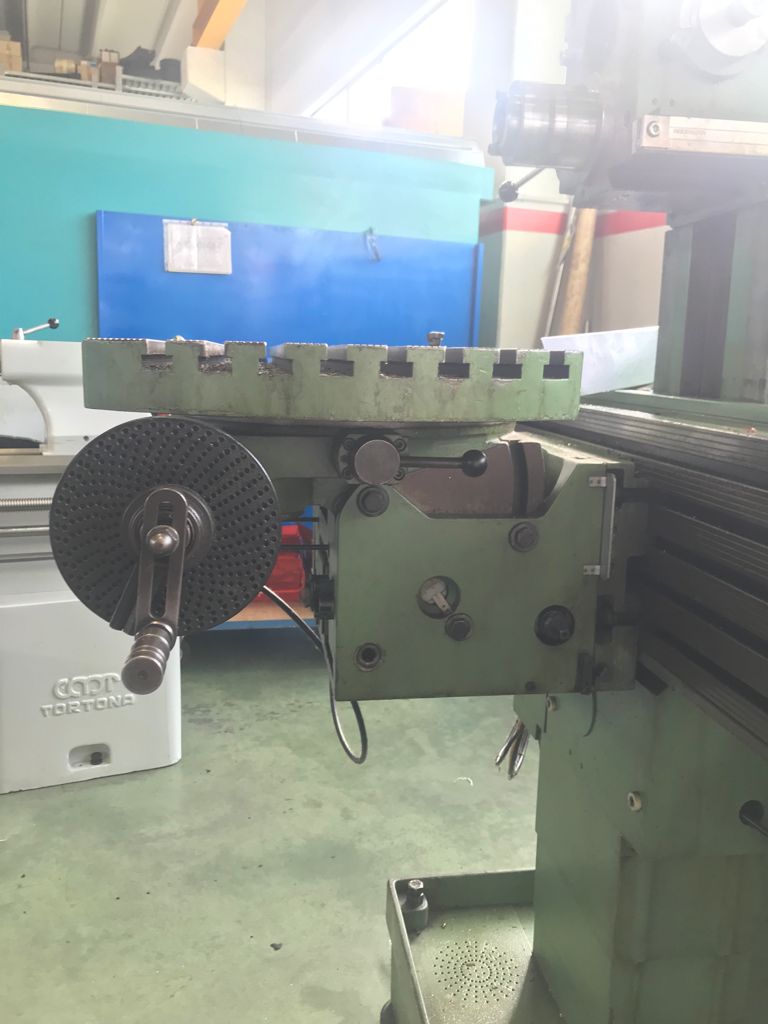

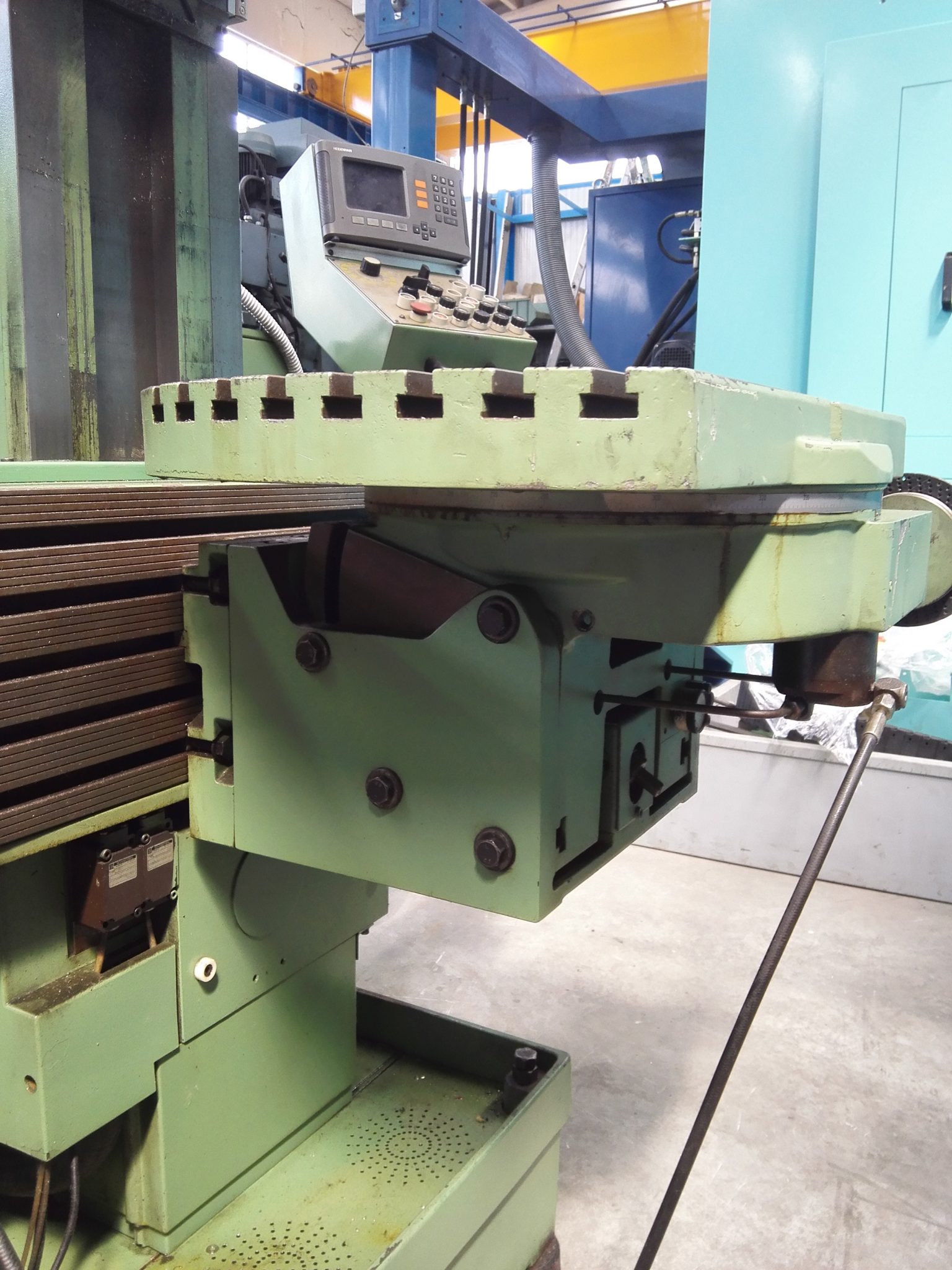

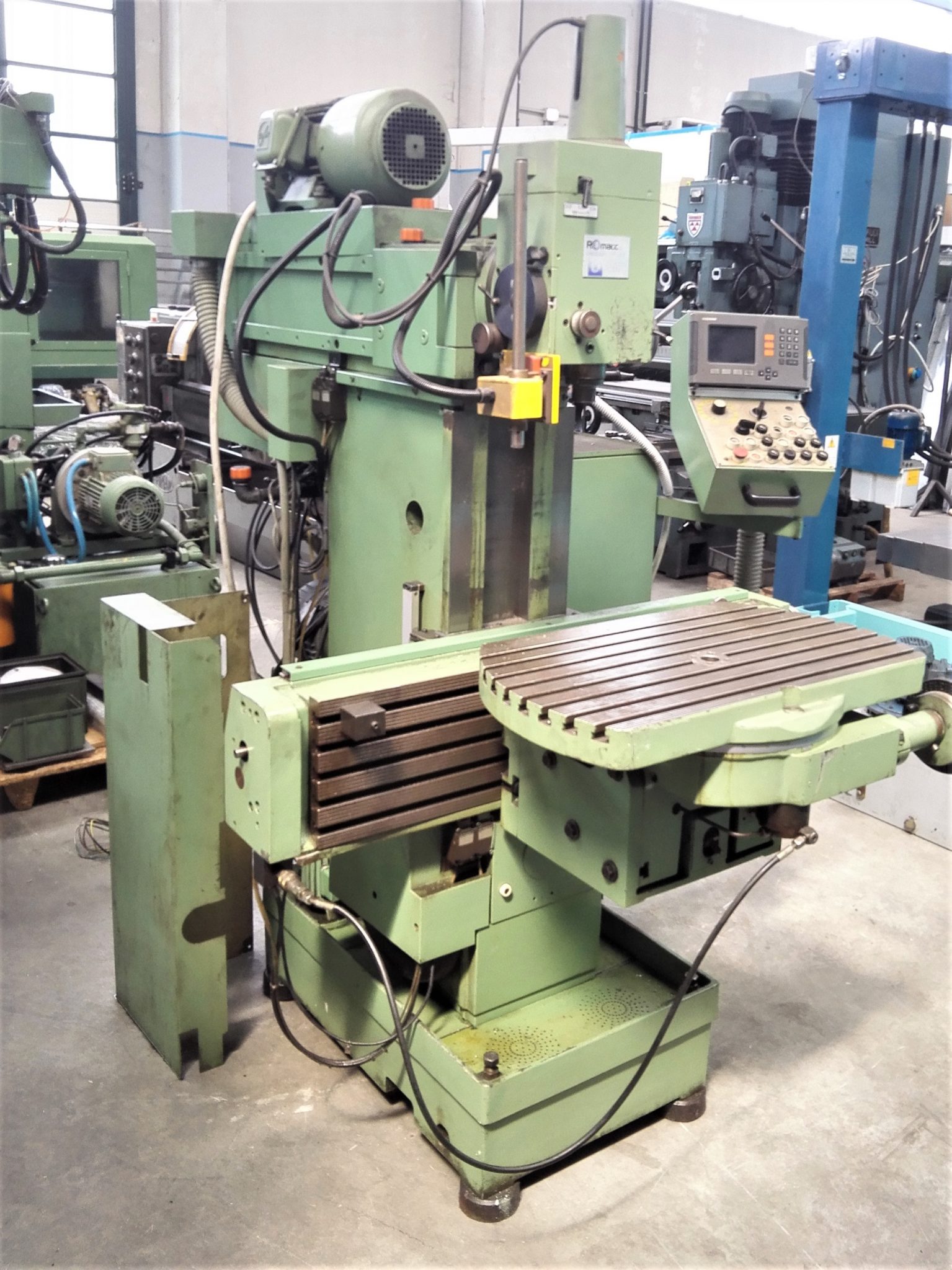

COMES COMPLETE WITH A UNIVERSAL CIRCULAR TABLE
The universal circular table is designed to accommodate large, heavy workpieces that require complex, three-dimensional machining and high geometric precision.
To adjust the solid angle, the table can be tilted around its transverse and longitudinal axes by ±30°, respectively, and the table plate can be rotated 360°.
The table is designed for both direct and indirect indexing.
The table plate features a permanent mechanical lock and is hydraulically unlocked to perform indexing operations.
TECHNICAL DATA OF THE CIRCULAR
TABLEFixing surface: mm 720×410
Centering hole: 30 mm H7
Number of grooves: 8
Groove spacing: 45 mm
Angle of rotation around the board’s transverse axis: ± 30°
Angle of rotation around the board’s longitudinal axis: ± 30°
Table plate rotation range: 360°
Direct Division
– Angular increment: 5°
– Number of angular increments: 72
Indirect Division
– Full gear ratio: 120:1
– Number of perforated circles: 18
– Graduated ring division: 2
Maximum table load (workpiece and equipment weight): 300 kg
Weight: approx. 260 kg
