Technical Specifications
TECHNICAL SPECIFICATIONS:

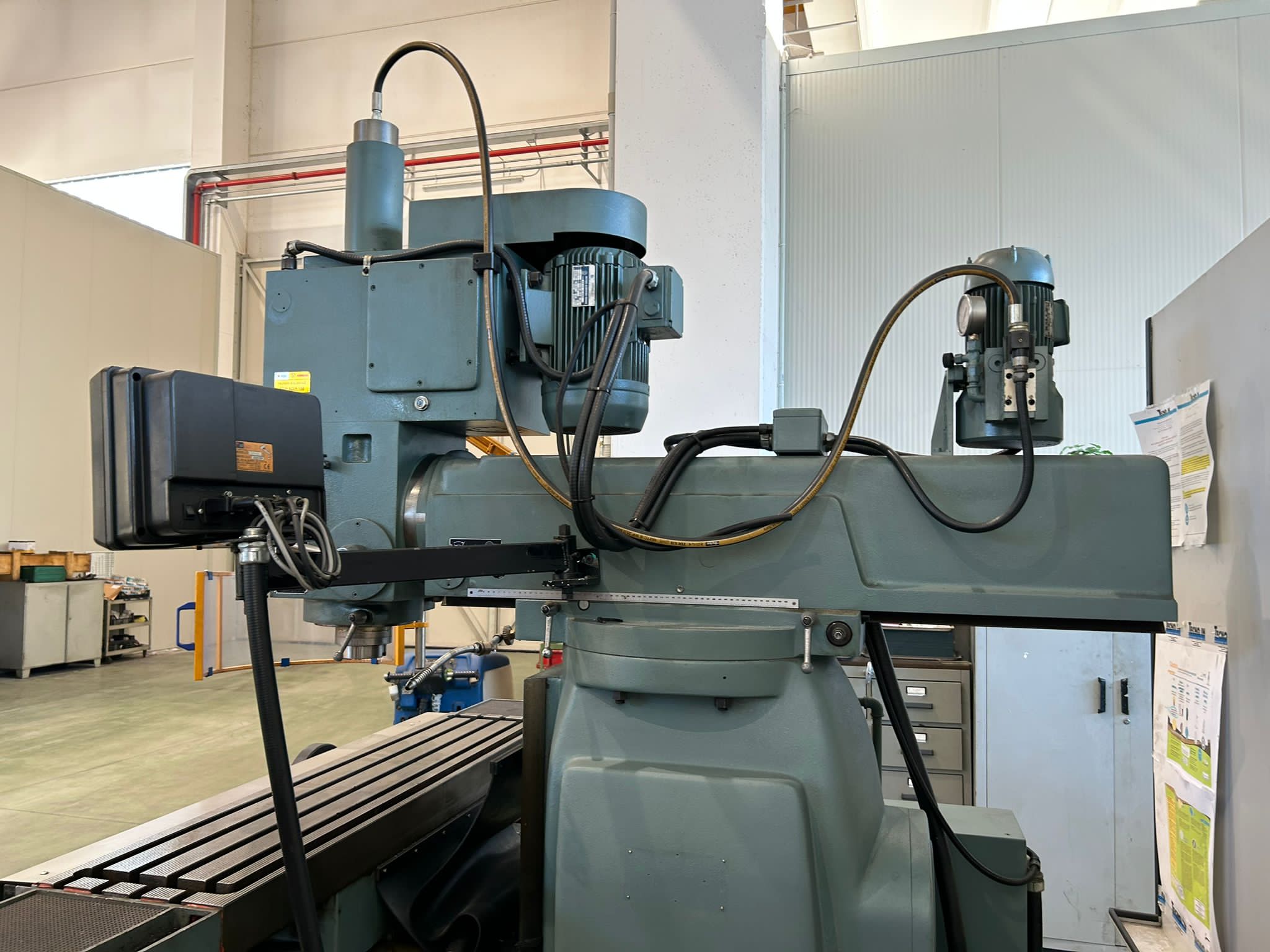

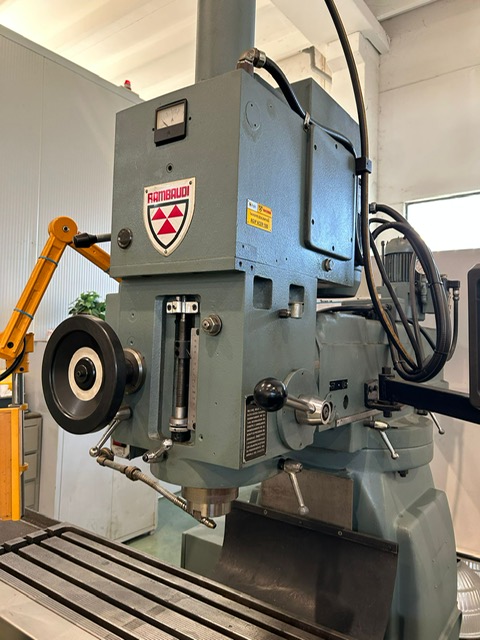

VERTICAL HEAD:
Spindle taper: ISO 40
Automatic and manual spindle travel: 150 mm
No. 3 automatic spindle feeds: 0.035–0.15 mm/rev
Spindle speed: 40–3,000 rpm
Max–min distance between the spindle nose and the table: 510–65 mm
Sled travel: 550 mm
Rotation of the slide in the horizontal plane: 360°
TABLE:
Dimensions: 1,300 x 300 mm
No. of T-slots (width): 4 (18)
Automatic and manual longitudinal travel: 950 mm
Automatic (manual) cross travel: 380 (390) mm
Automatic (manual) vertical travel: 415 (445) mm
No. 12 automatic longitudinal and transverse feeds: mm/1’ 12 ÷ 550
No. 12 automatic vertical feeds: mm/1’ 6 to 275
POWER:
Vertical spindle motor: 4 kW
DIMENSIONS AND WEIGHTS:
Width x length x height: 182 x 195 x 220 cm
Weight: 2,090 kg
Machine comes complete with:

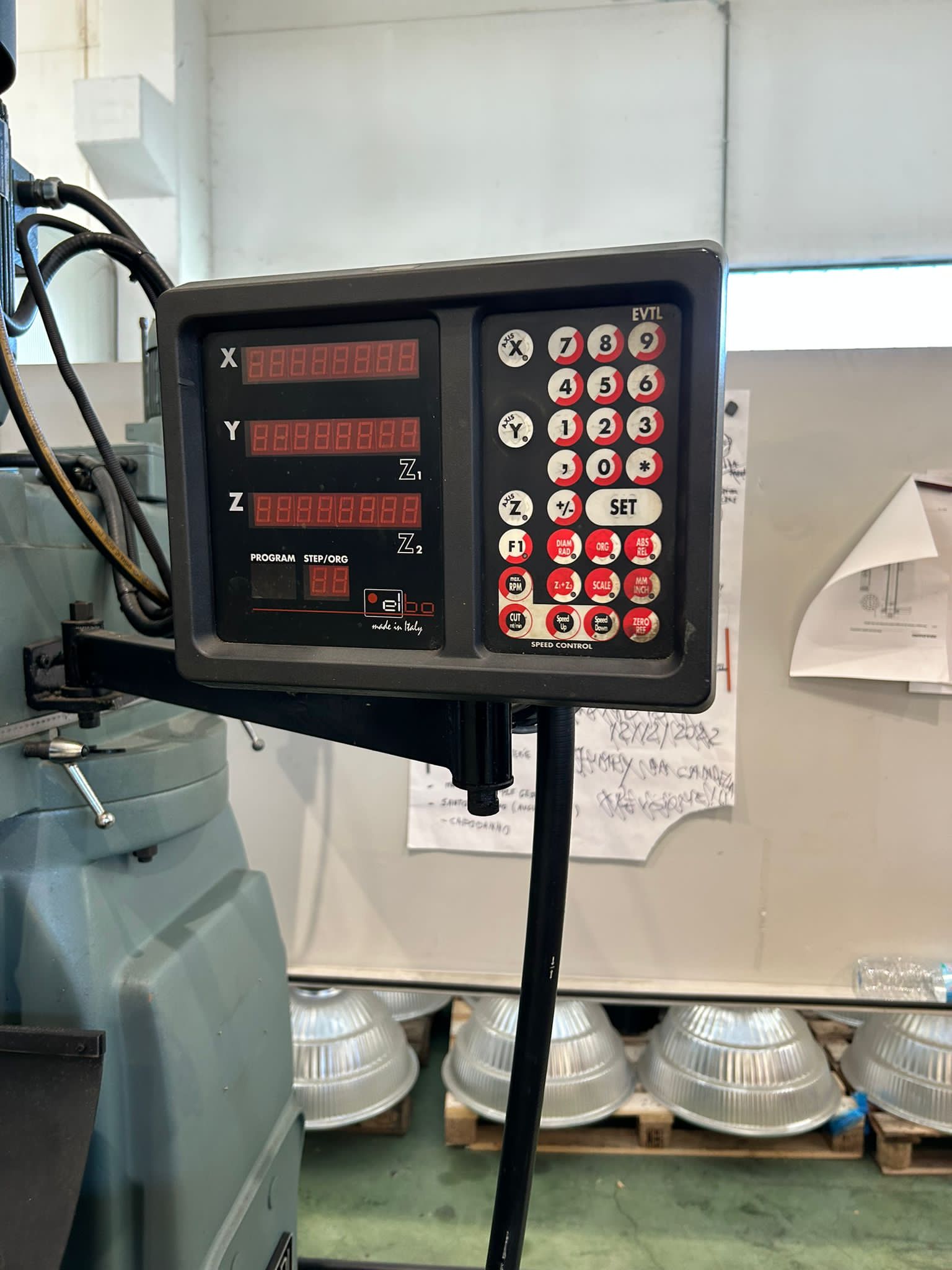

- ELBO 3-Axis Coordinate Display
- Instruction Manuals
