Technical Specifications
TECHNICAL SPECIFICATIONS:

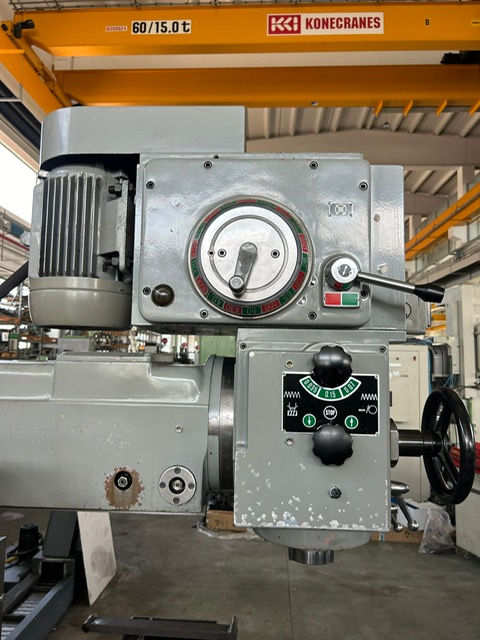

HEAD
Motor power: kW 4
Spindle taper: ISO 40
Automatic stroke: mm 150
No. 3 automatic spindle feeds: mm/rev 0.035-0.15
Rotation speed (number): rpm (18) 40÷3000
Head rotation in the vertical plane: +- 45°
Min./max. distance between spindle nose and table: mm 510-65
Ram stroke: mm 550
Min./max. distance between spindle axis and crankcase: mm 720-170
Ram rotation in the horizontal plane: 360°
TABLE
Surface: mm 1300×300
N. T-slots (width mm): 4 (18)
Automatic and manual longitudinal stroke: mm 950
Automatic transverse stroke (manual): mm 380 (390)
Automatic vertical stroke (manual): mm 415 (445)
N. 12 automatic longitudinal and transverse feeds: mm/min 12-550
N. 12 automatic vertical feeds: mm/min 6-275
Rapid longitudinal and transverse: mm/min 2000
Rapid vertical: mm/min 1000
POWER
Vertical spindle motor: 4 kW
Feed drive motor: 1.10 kW
Electric pump: 0.10 kW
WEIGHTS
Net weight: 2090 kg
Gross weight: 2490 kg
OVERALL DIMENSIONS
: Width x Length x Height: 1560 x 1780 x 2150 mm
Machine equipped with:
2-axis coordinate display
