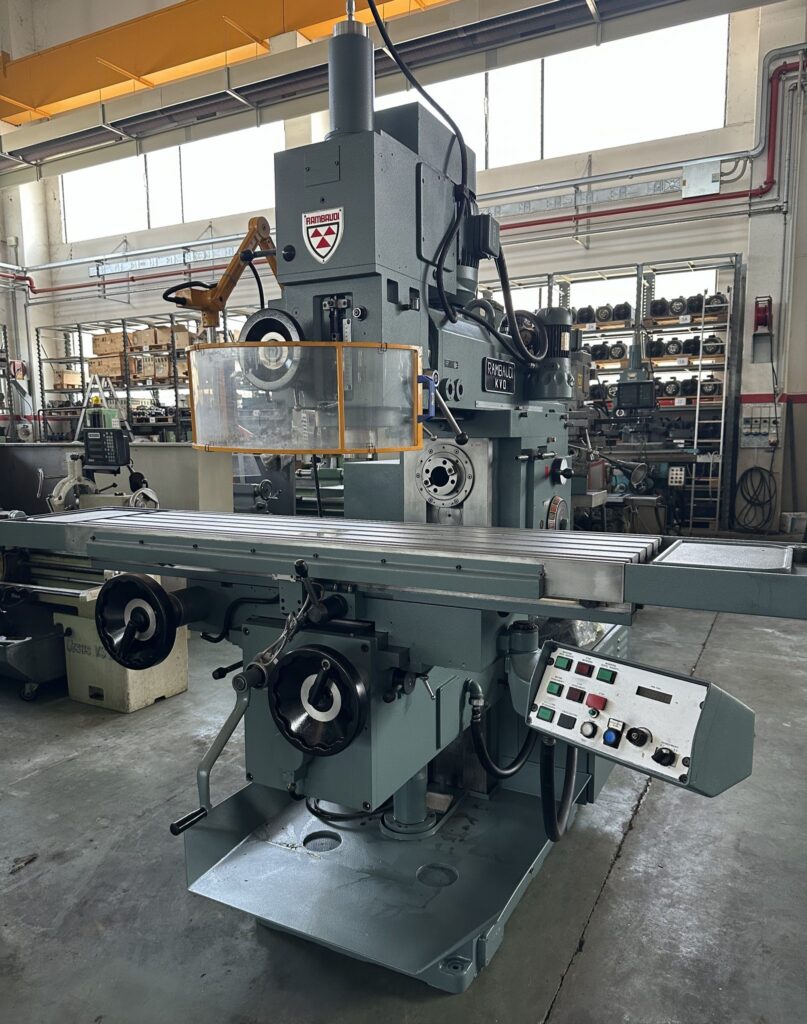

TECHNICAL SPECIFICATIONS:

TABLE

Dimensions: 1600 x 450 mm

1. T-slots (width in mm): No. 5 (18)

Automatic (manual) longitudinal stroke: 1200 (1250) mm

Automatic (manual) cross travel: 390 (400) mm

Automatic (manual) vertical stroke: 420 mm (420)

Continuously adjustable feed rates:

Longitudinal and transverse: mm/1’ 5–2000

vertical: mm/1’ 3–1,000

Longitudinal and transverse speeds: 2000 mm/1’

Vertical feed rate: 1,000 mm/min

DC motor power for feed control: 3.8 kW

Coolant pump motor power: 0.25 kW

Maximum load: 1,000 kg

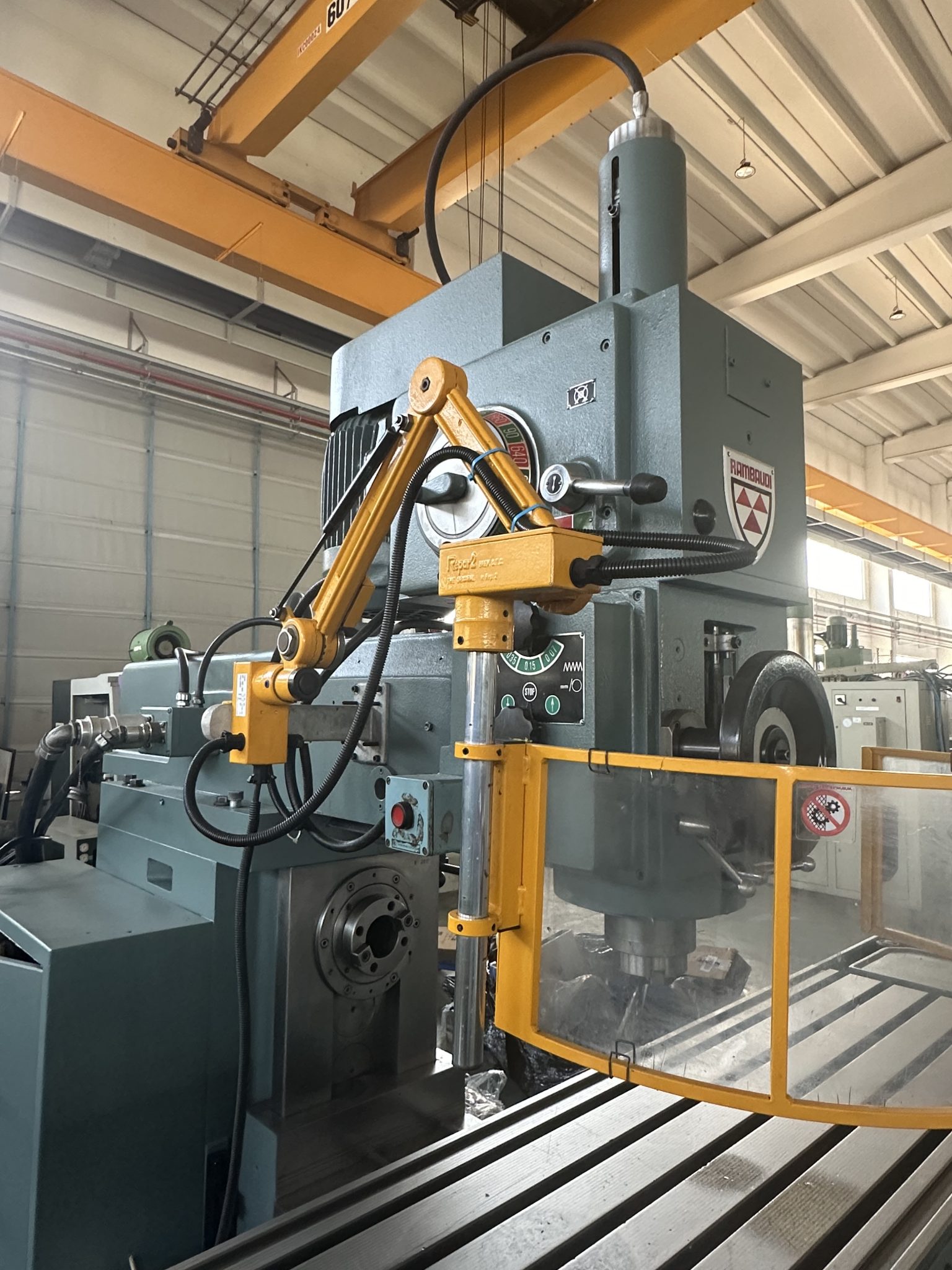

VERTICAL HEAD

Spindle taper: ISO 40

Hub diameter: 110 mm

Front bearing diameter: 90 mm

Automatic and manual spindle travel: 150 mm

1. 3 automatic spindle feed rates: 0.035–0.15 mm/rev
2. 18 spindle speeds: rpm 40–3,000

Head rotation in the vertical plane: ±45°

Maximum and minimum distance between the spindle nose and the table: 550–130 mm

Sled travel: 725 mm

Maximum and minimum distance between the spindle axis and the base: 925–200 mm

Rotation of the slide in the horizontal plane: 360°

Vertical spindle motor power: 7.5 HP

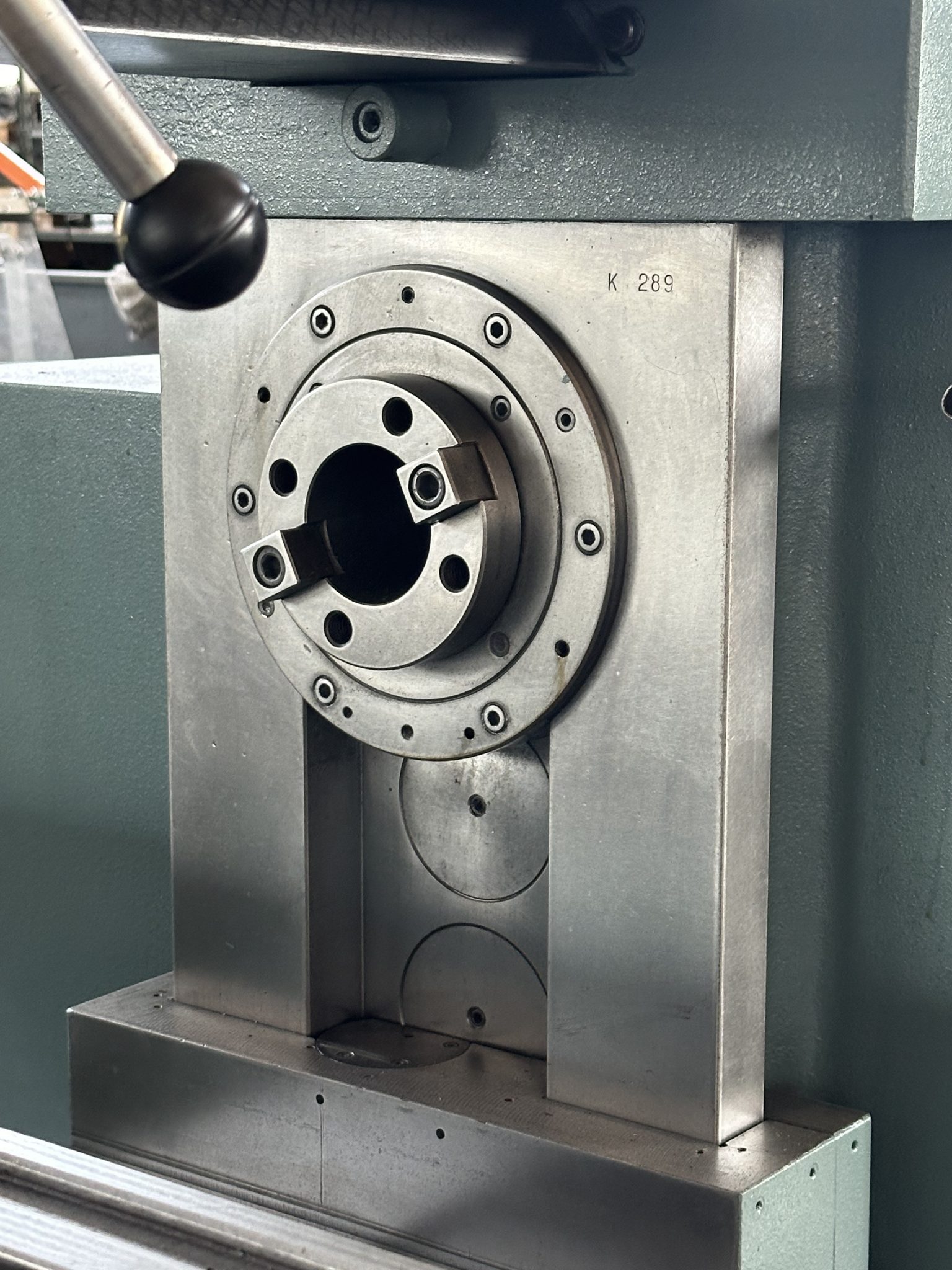

HORIZONTAL SPINDLE

Spindle taper: ISO 50

Hub diameter: 130 mm

Maximum cutter diameter: 300 mm

1. 18 spindle speeds: rpm 25–1,900

Maximum and minimum distance between the spindle axis and the table: 420–0 mm

Spindle motor power: 12.5 HP

WEIGHTS

Approximate net weight: 3500 kg

OVERALL DIMENSIONS

Width x length x height: 2260 x 2550 x 2320 mm

Machine comes complete with:

• 2-Axis Coordinate Display
• Pneumatic screwdriver for tool mounting on the vertical spindle

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
